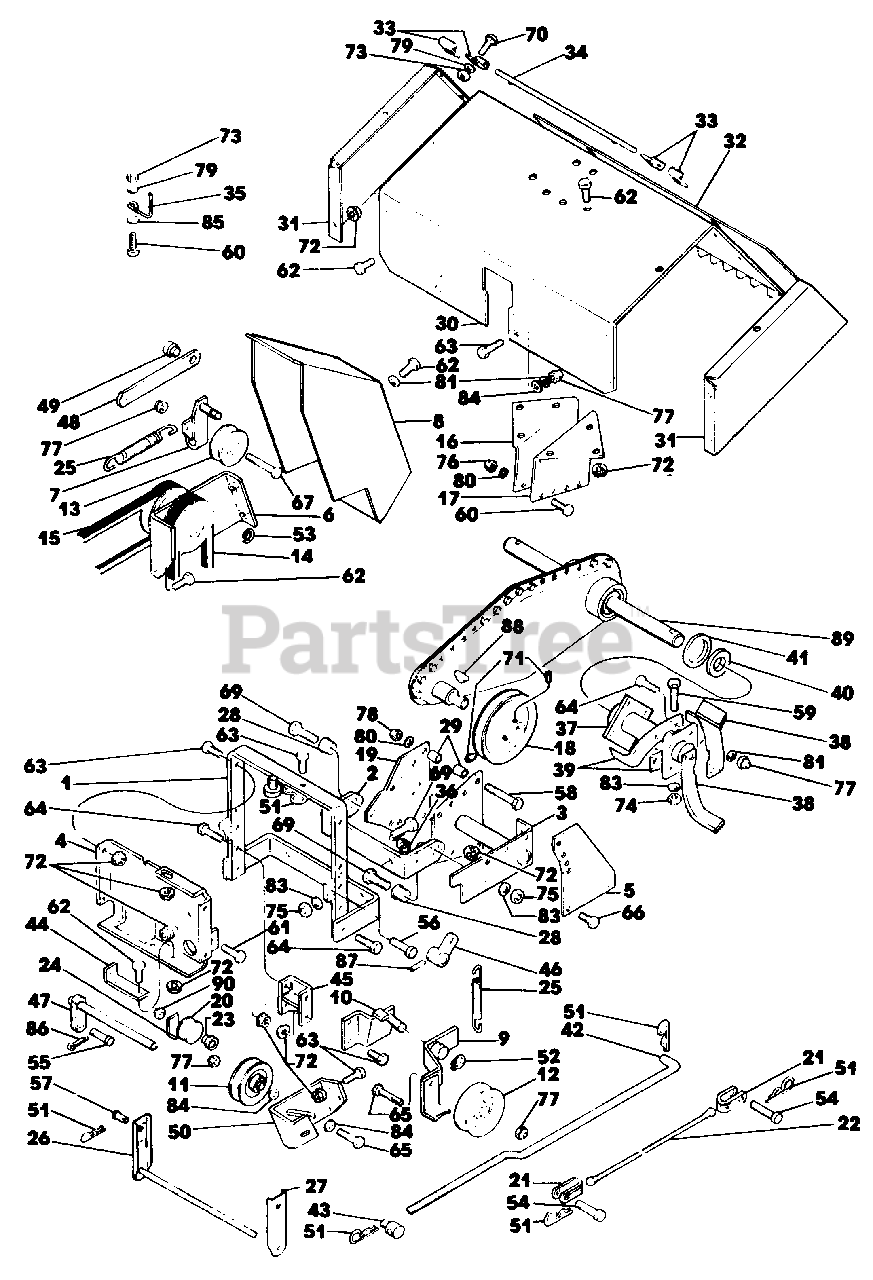

TILLER PARTS LIST-26" TILLER MODEL 63695 Parts Diagram

  • Title
1

Lawn-Boy 236738

Frame Assembly
(Superseded to 743769)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 217457

Push Frame

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 217531

Lift Frame Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 218131

Plate

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

5

Lawn-Boy 217533

Lift Plate

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 217450

Jackshaft Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 217569

Idler Arm Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 217537

Belt Guard Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 217449

Idler Arm Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 217539

Pivot Plate Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 24445

V-Idler Pulley
(Superseded to 703715)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 200929

Idler Pulley
(Superseded to 742835)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$54.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 37094

Idler Pulley
(Superseded to 742512)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$146.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 236741

V-Belt Primary Drive
(Superseded to 707067)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 217773

V-Belt-Secondary Drive
(Superseded to 706175)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 217547

Tine Shield Support R.H.

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

17

Lawn-Boy 217548

Tine Shield Support L.H.

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

18

Lawn-Boy 217788

Pulley-Tine

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 218128

Side Plate Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

20

Lawn-Boy 207854

Nylon Roller
(Superseded to 701444)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 217556

Clevis-Cable
(Superseded to 706169)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 236742

Lift Cable
(Superseded to 707068)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 217438

Spacer-Nylon Roller
(Superseded to 701443)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 217439

Retainer Lift Cable
(Superseded to 706159)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 217445

Spring
(Superseded to 706162)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 234267

Belt Guide Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 234268

Support Belt Guide

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 217436

Bushing Pivot

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 36605

Spacer

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 234527

Tine Shield & Decal Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 217544

Side Plate

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

32

Lawn-Boy 217440

Guard

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 200459

Hinge
(Superseded to 701682)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 200030

Rod
(Superseded to 705343)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 4508

Belt Finger

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 218882

Pyramidal Lock Washer

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

37

Lawn-Boy 217574

Tine Hub Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

38

Lawn-Boy 1329

Tine-R.H.
(Superseded to 703223)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 1330

Tine-L.H.
(Superseded to 703224)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 1055

Inner Felt Seal
(Superseded to 703428)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$13.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 1056

Intermediate Felt Seal
(Superseded to 701778)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$7.49

$

In Stock, only 2 left!

0

42

Lawn-Boy 241014

Link-P.T.O.
(Superseded to 707442)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 217567

Trunnion
(Superseded to 706172)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 217558

Pivot Shaft Support

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

45

Lawn-Boy 217575

Pivot Extension Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 217561

Clutch Arm Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 241015

Pivot Shaft Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 217563

Arm-Actuating

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 217570

Pivot Bushing

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 218127

Idler Bracket Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

51

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

52

Lawn-Boy 3917

Snap Ring
(Superseded to 700091)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 11192

"E" Ring

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 12084

Clevis Pin
(Superseded to 700601)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$4.49

$

Usually ships in 3-6 days

0

55

Lawn-Boy 3441

Clevis Pin
(Superseded to 702012)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 3019

Clevis Pin
(Superseded to 703248)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 234266

Clevis Pin
(Superseded to 706799)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 71098

Cap Screw, Hex Hd. 1/4-28 x 2-3/4 Plated, Grade 5
(Superseded to 705066)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

59

Lawn-Boy 71174

Cap Screw, Hex Hd. 1/4-20 x 1" Plated, Grade 5
(Superseded to 146309)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 70143

Cap Screw, Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 70164

Cap Screw, Hex Hd. 5/16-18 x 1-1/2 Plated, Grade 5
(Superseded to 146210)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 70226

Cap Screw, Hex Hd. 3/8-16 x 3/4 Plated, Grade 5
(Superseded to 323-4)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, only 4 left!

0

63

Lawn-Boy 70235

Cap Screw, Hex Hd. 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 70242

Cap Screw, Hex Hd. 3/8-16 x 1-1/2 Plated, Grade 5
(Superseded to 146207)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

65

Lawn-Boy 70254

Cap Screw, Hex Hd. 3/8-16 x 1-3/4 Plated, Grade 5
(Superseded to 146376)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

66

Lawn-Boy 70231

Cap Screw, Hex Hd. 3/8-16 x 7/8 Plated, Grade 5
(Superseded to 323-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

Usually ships in 3-6 days

0

67

Lawn-Boy 70266

Cap Screw, Hex Hd. 3/8-16 x 2-1/2 Plated, Grade 5
(Superseded to 700141)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

69

Lawn-Boy 70343

Cap Screw, Hex Hd. 1/2-13 x 1-1/2 Plated Grade 5
(Superseded to 701812)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

70

Lawn-Boy 70441

Bolt, Carriage 5/16-18 x 3/4 Plated
(Superseded to 700030)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 1 left!

0

71

Lawn-Boy 70498

Setscrew, Hex Socket Hd. Cup Pt. 5/16-18 x 5/16
(Superseded to 700029)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

72

Lawn-Boy 213301

Nut, Hex Washer Hd. 3/8-16
(Superseded to 146306)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

73

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

74

Lawn-Boy 70559

Nut, Hex 7/16-20 Plated
(Superseded to 704993)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

75

Lawn-Boy 70563

Nut, Hex 1/2-13 Plated
(Superseded to 701067)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

76

Lawn-Boy 70628

Nut, Hex Cone Lock 1/4-20 Plated
(Superseded to 146375)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

77

Lawn-Boy 70631

Nut, Hex Cone Lock 3/8-16 Plated
(Superseded to 700032)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

78

Lawn-Boy 71099

Nut, Hex Cone Lock 1/4-28 Plated
(Superseded to 705067)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

79

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

Usually ships in 3-6 days

0

80

Lawn-Boy 70643

Washer, Spring Lock 1/4 Plated
(Superseded to 3253-3)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

81

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

83

Lawn-Boy 70655

Washer, Spring Lock 1/2 Plated
(Superseded to 701068)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

84

Lawn-Boy 70703

Washer, Rat 3/8 Plated
(Superseded to 700050)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

85

Lawn-Boy 70685

Washer, Flat SAE 5/16 Plated
(Superseded to 3256-23)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

86

Lawn-Boy 70721

Pin, Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 15

0

87

Lawn-Boy 70759

Pin, Roll 3/16 x 1" Plated
(Superseded to 705024)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

88

Lawn-Boy 70824

Key, Hypro 3/16 x 3/4
(Superseded to 700034)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

89

Lawn-Boy 218214

Chain Case Assembly

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

90

Lawn-Boy 70629

Nut, Hex Cone Lock 5/16-18 Plated
(Superseded to 146501)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 3 left!

0
