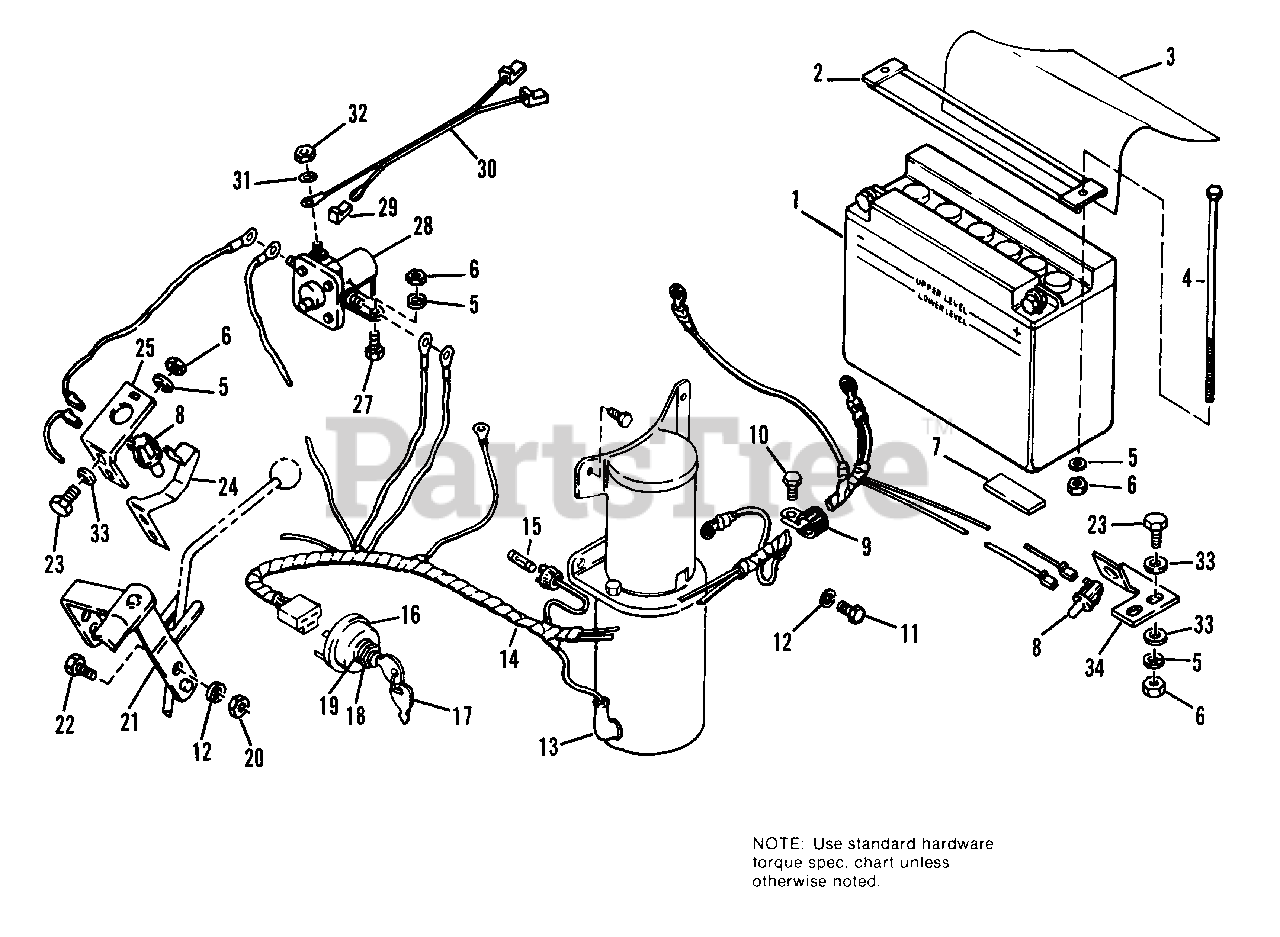

637 (990779) - Simplicity Yeoman 32" Lawn Tractor Electric Start Group Parts Diagram

Yeoman 32" Lawn Tractor

Electric Start Group Parts Diagram

  • Title

1

Simplicity 1657082

BATTERY

$

$

Not available

2

Simplicity 122227

HOLD DOWN, Battery

$

$

Not available

3

Simplicity 122143

INSULATION, Battery

$

$

Not available

4

Simplicity 2828634

CAPSCREW, Hex Hd., 1/4-20 x 7

$

$

Not available

5

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

6

Simplicity 2816622SM

NUT, Hex, Full, 1/4-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0

7

Simplicity 106582

GASKET, Felt

$

$

Not available

8

Simplicity 1609283SM

SWITCH

$

$

Not available

9

Simplicity 122195

CLAMP

$

$

Not available

10

Simplicity 2829477

SCREW, Hex, Taptite, #10-24 x 1/2

$

$

Not available

11

Simplicity 2825205

CAPSCREW, Hex Hd., 5/16-18 x 5/8

$

$

Not available

12

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

13

Simplicity 2122023SM

COVER, Terminal

$5.99

$

In Stock, only 3 left!

0

14

Simplicity 174682

HARNESS ASSY.

$

$

Not available

15

Simplicity 172410

FUSE

$

$

Not available

16

Simplicity 2122201SM

SWITCH, Starter W/Keys

$

$

Not available

17

Simplicity 1717163SM

KEYS

$8.99

$

In Stock, Qty 14

0

18

Simplicity 122235

NUT, Hex, Special

$

$

Not available

19

Simplicity 928636

LOCKWASHER, Int., 9/16

$

$

Not available

20

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

21

Simplicity 170172

PIVOT ASSY.

$

$

Not available

22

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

23

Simplicity 2827340

CAPSCREW, Hex Hd., 1/4-20 x 3/4

$

$

Not available

24

Simplicity 174619

CLIP, Spring
(Superseded to 709160)

$159.99

$

Usually ships in 2-12 days

0

25

Simplicity 174700

BRACKET

$

$

Not available

26

Simplicity 2830641

LOCKNUT, Flange, Hex, 1/4-20

$

$

Not available

27

Simplicity 2829000

SCREW, Hex, Taptite, 1/4-20 x 3/8

$

$

Not available

28

Simplicity 2122216SM

SOLENOID

$

$

Not available

29

Simplicity 172100

CONNECTOR, Insulated

$

$

Not available

30

Simplicity 174689

WIRE

$

$

Not available

31

Simplicity 2822711

LOCKWASHER, Ext., #10

$

$

Not available

32

Simplicity 2817415

NUT, Hex, Full, #10-32

$

$

Not available

33

Simplicity 2816955

WASHER, Plain, 3/16

$

$

Not available

34

Simplicity 174701

BRACKET

$

$

Not available
