63706 - Lawn-Boy 42" Side-Discharge Mower Deck (SN: G00000001 - G99999999) (1988) WHEEL SUPPORT AND HANGER PARTS LIST-42" MOWER DECK FOR YARD TRACTORS Parts Diagram

42" Side-Discharge Mower Deck

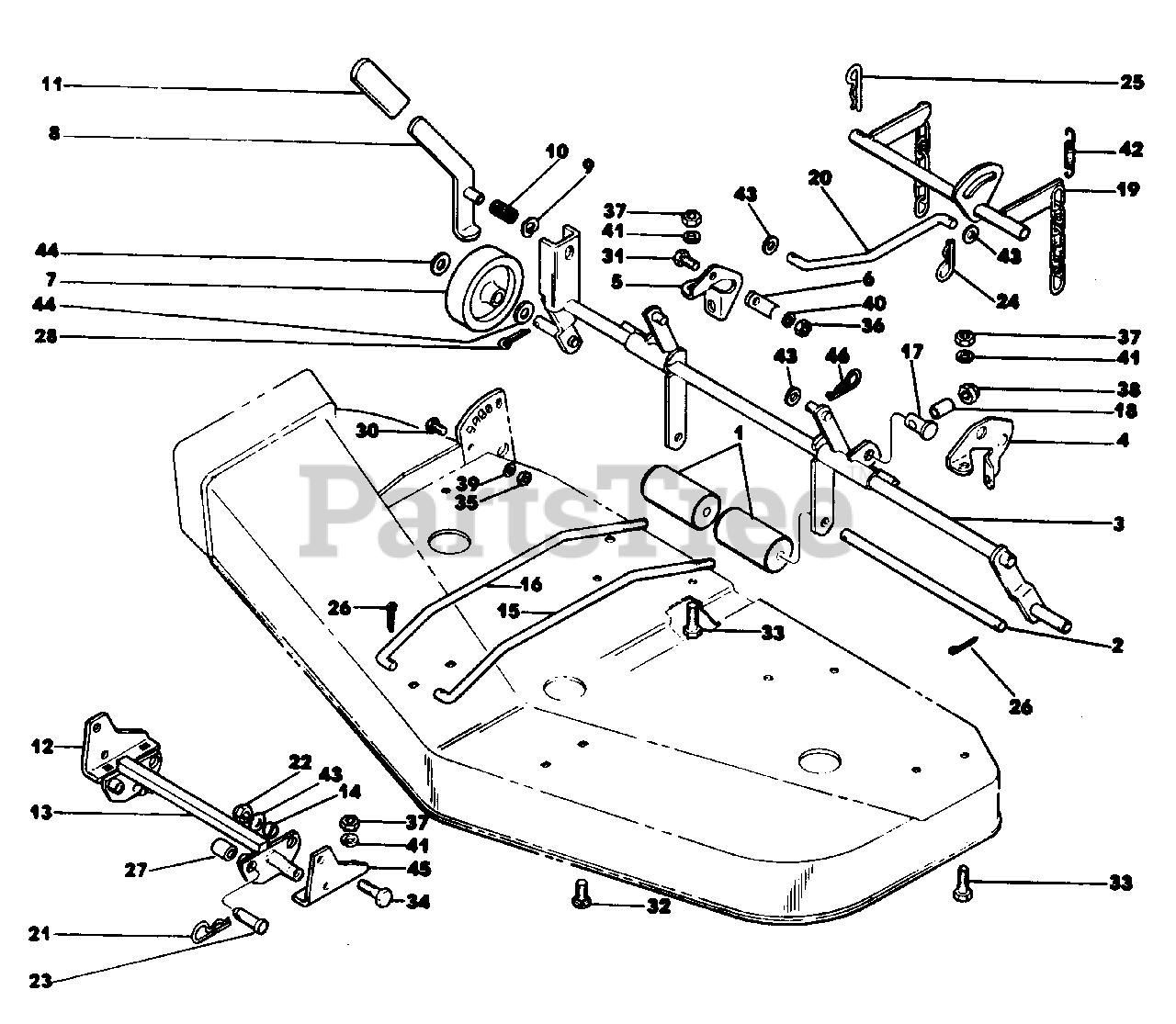

WHEEL SUPPORT AND HANGER PARTS LIST-42" MOWER DECK FOR YARD TRACTORS Parts Diagram

  • Title

1

Lawn-Boy 11824

Roller
(Superseded to 702810)

$

$

Not available

2

Lawn-Boy 243596

Shaft Roller
(Superseded to 702805)

$

$

Not available

3

Lawn-Boy 239429

Hanger Assembly, Wheel
(Superseded to 740968)

$681.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 36715

Support, Wheel-L.H.
(Superseded to 702822)

$

$

Not available

5

Lawn-Boy 36712

Support, Wheel, Center
(Superseded to 702820)

$

$

Not available

6

Lawn-Boy 36698

Strap, Mid Support
(Superseded to 702801)

$

$

Not available

7

Lawn-Boy 208736

Wheel, Mower
(Superseded to 702804)

$

$

Not available

8

Lawn-Boy 200915

Handle Assembly, Height Adjustment
(Superseded to 740851)

$96.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 33322

Washer, Wave
(Superseded to 700404)

$

$

Not available

10

Lawn-Boy 6863

Spring
(Superseded to 701236)

$

$

Not available

11

Lawn-Boy 36697

Grip
(Superseded to 701190)

$

$

Not available

12

Lawn-Boy 237686

Bracket, Front Hanger-R.H.
(Superseded to 702849)

$

$

Not available

13

Lawn-Boy 237690

Front Hanger Assembly

$

$

Not available

14

Lawn-Boy 36338

Bushing, Pivot
(Superseded to 701189)

$

$

Not available

15

Lawn-Boy 233052

Rod, Level, R.H.
(Superseded to 702825)

$72.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 233053

Rod, Level, L.H.
(Superseded to 702827)

$74.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 234583

Pin, Pivot
(Superseded to 702799)

$46.99

$

Usually ships in 3-6 days

0

18

Lawn-Boy 16510

Spacer
(Superseded to 702812)

$

$

Not available

19

Lawn-Boy 245565

Bellcrank Assembly
(Superseded to 740983)

$298.99

$

Usually ships in 3-6 days

0

20

Lawn-Boy 234688

Link, Mower Lift
(Superseded to 702761)

$78.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

$

$

Not available

22

Lawn-Boy 70631

Nut, Hex Cone Lock 3/8-16 Plated
(Superseded to 700032)

$

$

Not available

23

Lawn-Boy 237669

Pin, Clevis
(Superseded to 702794)

$

$

Not available

24

Lawn-Boy 9678

Spring Clip
(Superseded to 700257)

$

$

Not available

25

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

$

$

Not available

26

Lawn-Boy 70721

Pin, Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 9331

Spacer
(Superseded to 702793)

$

$

Not available

28

Lawn-Boy 70731

Pin, Cotter 3/16 x 1" Plated
(Superseded to 3272-22)

$0.99

$

In Stock, Qty 5

0

30

Lawn-Boy 70090

Cap Screw, Hex Hd. 1/4-20 x 1/2 Plated, Grade 5
(Superseded to 700822)

$1.99

$

In Stock, Qty 10

0

31

Lawn-Boy 70143

Cap Screw, Hex 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

$1.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 36803

Bolt, Carriage Short Neck 3/8-16 x 3/4
(Superseded to 701911)

$

$

Not available

33

Lawn-Boy 70231

Cap Screw, Hex Hd. 3/8-16 x 7/8 Plated, Grade 5
(Superseded to 323-5)

$1.49

$

Usually ships in 3-6 days

0

34

Lawn-Boy 70238

Cap Screw, Hex 3/8-16 x 1 1/8 Plated, Grade 5
(Superseded to 701194)

$

$

Not available

35

Lawn-Boy 70545

Nut, Hex 1/4-20 Plated
(Superseded to 146254)

$

$

Not available

36

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

$

$

Not available

37

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

$3.49

$

Usually ships in 3-6 days

0

38

Lawn-Boy 70633

Nut, Hex Cone Lock 1/2-13 Plated
(Superseded to 700687)

$

$

Not available

39

Lawn-Boy 70643

Washer, Spring Lock 1/4 Plated
(Superseded to 3253-3)

$0.99

$

In Stock, Qty 20+

0

40

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

$3.99

$

In Stock, only 4 left!

0

41

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

$1.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 24387

Lift Spring

$

$

Currently unavailable

43

Lawn-Boy 70687

Washer, Rat SAE 3/8 Plated
(Superseded to 146304)

$1.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 70694

Washer, Flat SAE 5/8 Plated
(Superseded to 146369)

$

$

Not available

45

Lawn-Boy 237687

Bracket, Front Hanger-L.H.
(Superseded to 702847)

$

$

Not available
