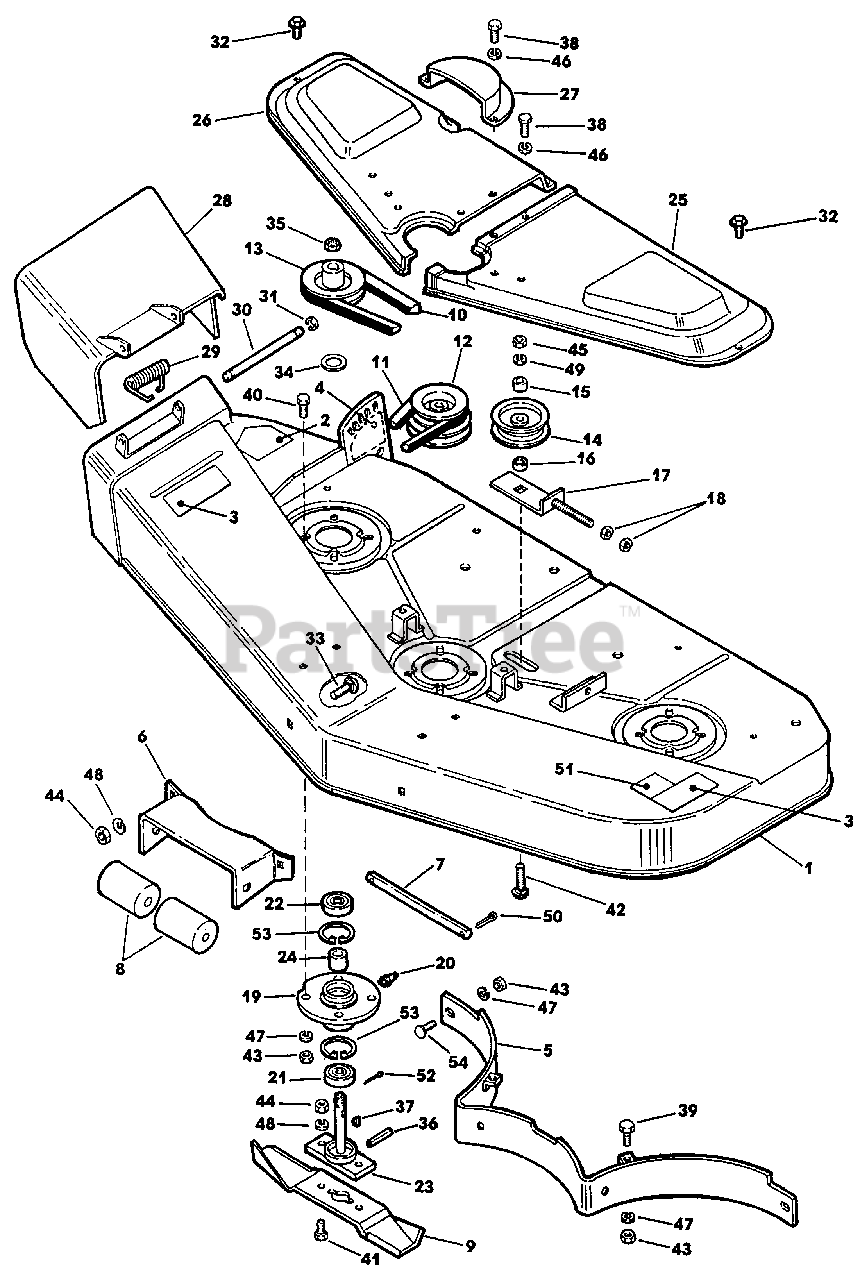

63706 - Lawn-Boy 42" Side-Discharge Mower Deck (SN: J00000001 - J99999999) (1990) MOWER DECK PARTS LIST Parts Diagram

42" Side-Discharge Mower Deck

MOWER DECK PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 741449

Cutter Housing & Decal Ass'y (42")

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 741090

Cutter Housing & Decal Ass'y (48")

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 610640

Decal-Cut Finger
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$6.49

$

In Stock, Qty 8

0

3

Lawn-Boy 701204

Decal-Danger

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

4

Lawn-Boy 701191

Decal-Cutting Height

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. Parts shown with bullet included with assembly above.

$

$

Not available

5

Lawn-Boy 740986

Baffle (42" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 741084

Baffle (48" Only)
(Superseded to 741066)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 702852

Bracket, Roller
(Superseded to 702851)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 701212

Shaft, Roller

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 701203

Roller

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$58.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 702855

Blade (42" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 702855

Blade, Center (48" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 703023

Blade, Outer (48" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 702814

V-Belt, Deck (42" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$100.99

$

Usually ships in 3-6 days

0

Lawn-Boy 703859

V-Belt, Deck (48" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$207.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 703025

V-Belt, Drive

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

12

Lawn-Boy 702816

Pulley, Drive (42" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 703026

Pulley, Drive (48" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 702818

Pulley, Blade Spindle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 702815

Pulley, Idler

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 702108

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 703849

Washer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 741511

Belt Tightener

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 700314

Nut, Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 700491

Spindle Housing

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 700041

Grease Fitting
(Superseded to 302-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

21

Lawn-Boy 700497

Bearing, Lower
(Superseded to 93-2559)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$21.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 700496

Bearing, Upper
(Superseded to 109842)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$26.99

$

In Stock, Qty 6

0

23

Lawn-Boy 740082

Spindle

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$442.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 700498

Sleeve

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

25

Lawn-Boy 740965

Cover Ass'y-L.H. (42" Only)
(Superseded to 740964)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 741088

Cover Ass'y-L.H. (48" Only)
(Superseded to 741069)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$420.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 740966

Cover Ass'y-R.H. (42" Only)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$463.99

$

In Stock, only 1 left!

0

Lawn-Boy 741087

Cover Ass'y-R.H. (48" Only)
(Superseded to 741070)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

27

Lawn-Boy 702835

Guard, Drive Belt
(Superseded to 710276)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 740988

Chute Extension

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 701199

Spring, Chute Extension
(Superseded to 710273)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

30

Lawn-Boy 701198

Shaft, Chute Extension

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

31

Lawn-Boy 701197

E-Ring

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 701660

Thread Forming Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

33

Lawn-Boy 701911

Bolt, Carriage

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 700809

Spacer

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 700499

Nut, Hex Slotted

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

36

Lawn-Boy 702808

Pin, Roll
(Superseded to 32121-35)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 700081

Key, Woodruff
(Superseded to 3257-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, Qty 20+

0

38

Lawn-Boy 700822

Cap Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 10

0

39

Lawn-Boy 146209

Cap Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 700342

Cap Screw, Hex Hd.

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

41

Lawn-Boy 700973

Cap Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

42

Lawn-Boy 707690

Bolt, Carriage

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

43

Lawn-Boy 146259

Nut, Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

44

Lawn-Boy 146211

Nut,Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 702806

Nut, Hex Jam

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

46

Lawn-Boy 146252

Washer, Spring Lock
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

47

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

48

Lawn-Boy 146260

Washer, Spring Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 702103

Washer, Spring Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

50

Lawn-Boy 146374

Pin, Cotter
(Superseded to 3272-10)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

51

Lawn-Boy 702800

Decal-42"

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

Lawn-Boy 703034

Decal-48"

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

52

Lawn-Boy 702807

Pin, Cotter
(Superseded to 3272-13)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 9

0

43

Lawn-Boy 703279

Retaining Ring
(Superseded to 32120-62)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 6

0

54

Lawn-Boy 709914

Carriage Bolt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available
