63708 - Lawn-Boy Bumper (SN: 800000001 - 899999999) (1988) BUMPER PARTS AND PARTS LIST MODEL 63708 Parts Diagram

Bumper

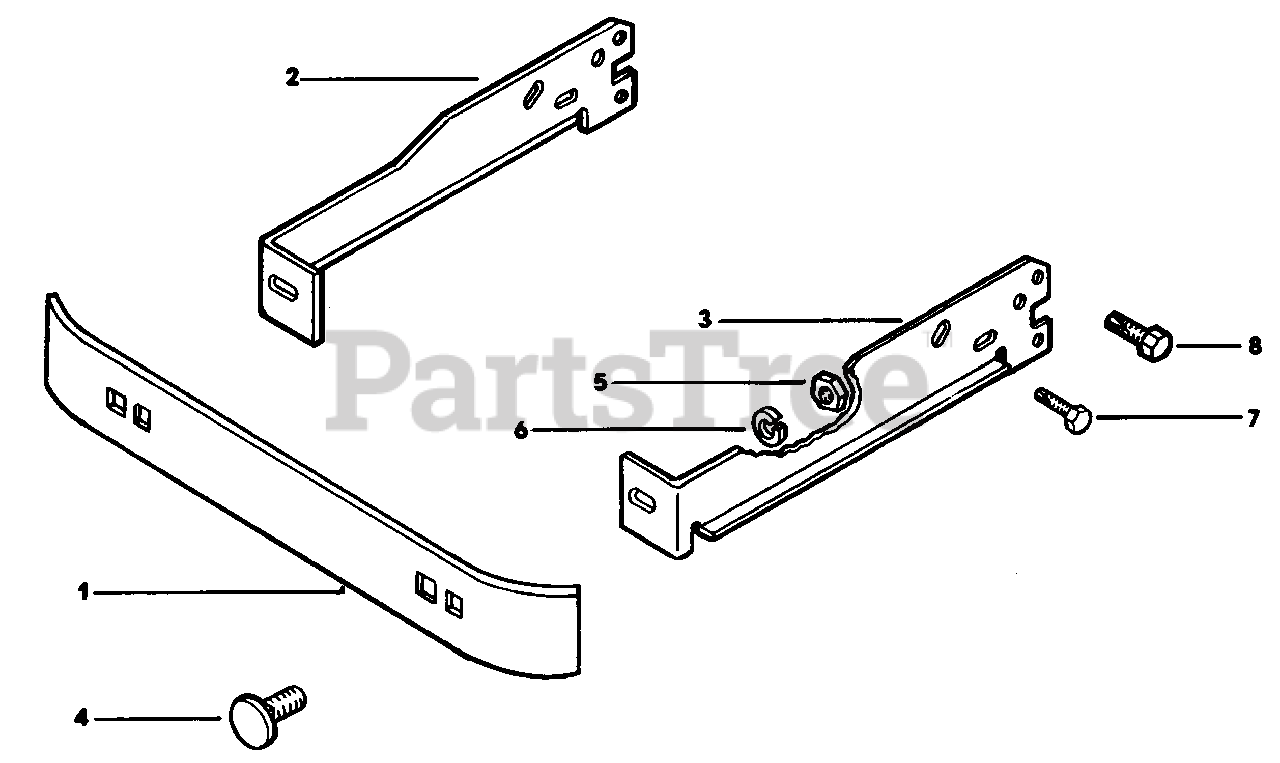

BUMPER PARTS AND PARTS LIST MODEL 63708 Parts Diagram

  • Title

1

Lawn-Boy 245432

Front Bumper
(Superseded to 703169)

$

$

Not available

2

Lawn-Boy 239985

Bumper Side Support R.H.
(Superseded to 703167)

$

$

Not available

3

Lawn-Boy 239986

Bumper Side Support L.H.

$

$

Not available

4

Lawn-Boy 70443

Bolt, Carriage 5/16-18 x 1" Plated
(Superseded to 700684)

$

$

Not available

5

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

$

$

Not available

6

Lawn-Boy 70646

Washer, Spring lock 5/16 Plated
(Superseded to 325-34)

$4.49

$

In Stock, only 2 left!

0

7

Lawn-Boy 213295

Hex Hd. Thread Forming Screw 1/4-20 x 3/4
(Superseded to 700759)

$

$

Not available

8

Lawn-Boy 213298

Hex Hd. Thread Forming Screw 5/16-18 x 3/4
(Superseded to 700093)

$

$

Not available
