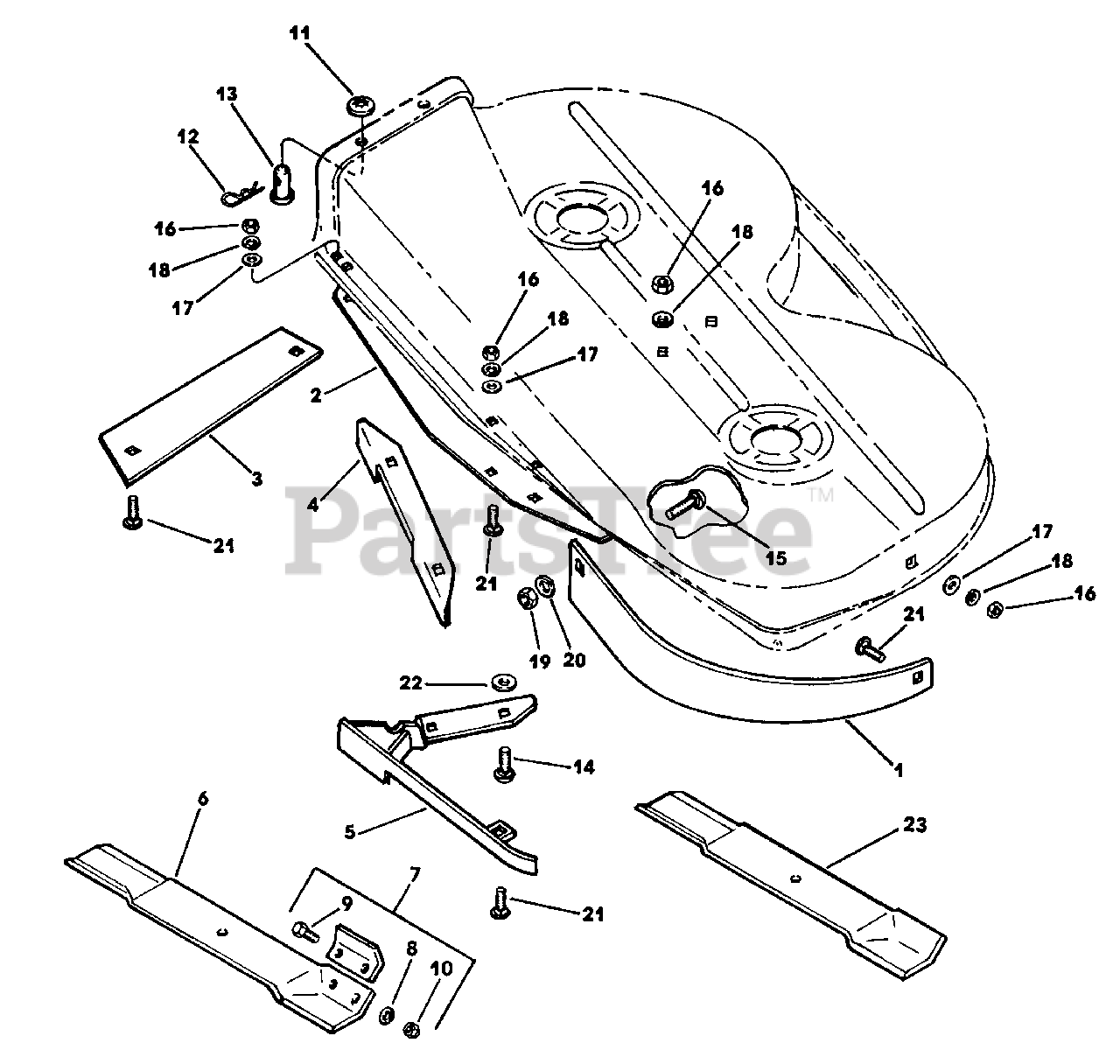

63713 - Lawn-Boy 38" Grass Catcher (SN: J00000001 - J99999999) (1990) BAFFLES AND BLADES PARTS LIST-38" GRASS CATCHER Parts Diagram

38" Grass Catcher

BAFFLES AND BLADES PARTS LIST-38" GRASS CATCHER Parts Diagram

  • Title

1

Lawn-Boy 702484

Baffle-L.H

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 702485

Baffle-Front

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 702478

Baffle-R.H

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$98.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 702483

Baffle-Discharge

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 740883

Baffle-Center

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 702488

Blade

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 744345

Blade Extension Kit

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 146258

Washer, Saring Lock
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

9

Lawn-Boy 146209

Cap Screw, Hex Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 146401

Nut, Hex Cone Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Currently unavailable

11

Lawn-Boy 700807

Nut, Push
(Superseded to 78-7170)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

12

Lawn-Boy 146428

Spring Clip

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 702482

Clevis Pin

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 700684

Carriage Bolt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 700685

Carriage Bolt

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 146259

Nut, Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 146368

Washer, Flat
(Superseded to 3256-23)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$0.99

$

In Stock, Qty 20+

0

19

Lawn-Boy 146211

Nut, Hex

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 146260

Washer, Spring Lock

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

21

Lawn-Boy 146511

Bolt, Wafer Hd

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 146205

Washer, Flat

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 702487

Blade

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors.

$124.99

$

Usually ships in 3-6 days

0
