638 (244-638-100) - Cub Cadet Log Splitter (1984) Wheel, Cylinder And Strainer Tube Assemblies Parts Diagram

Log Splitter

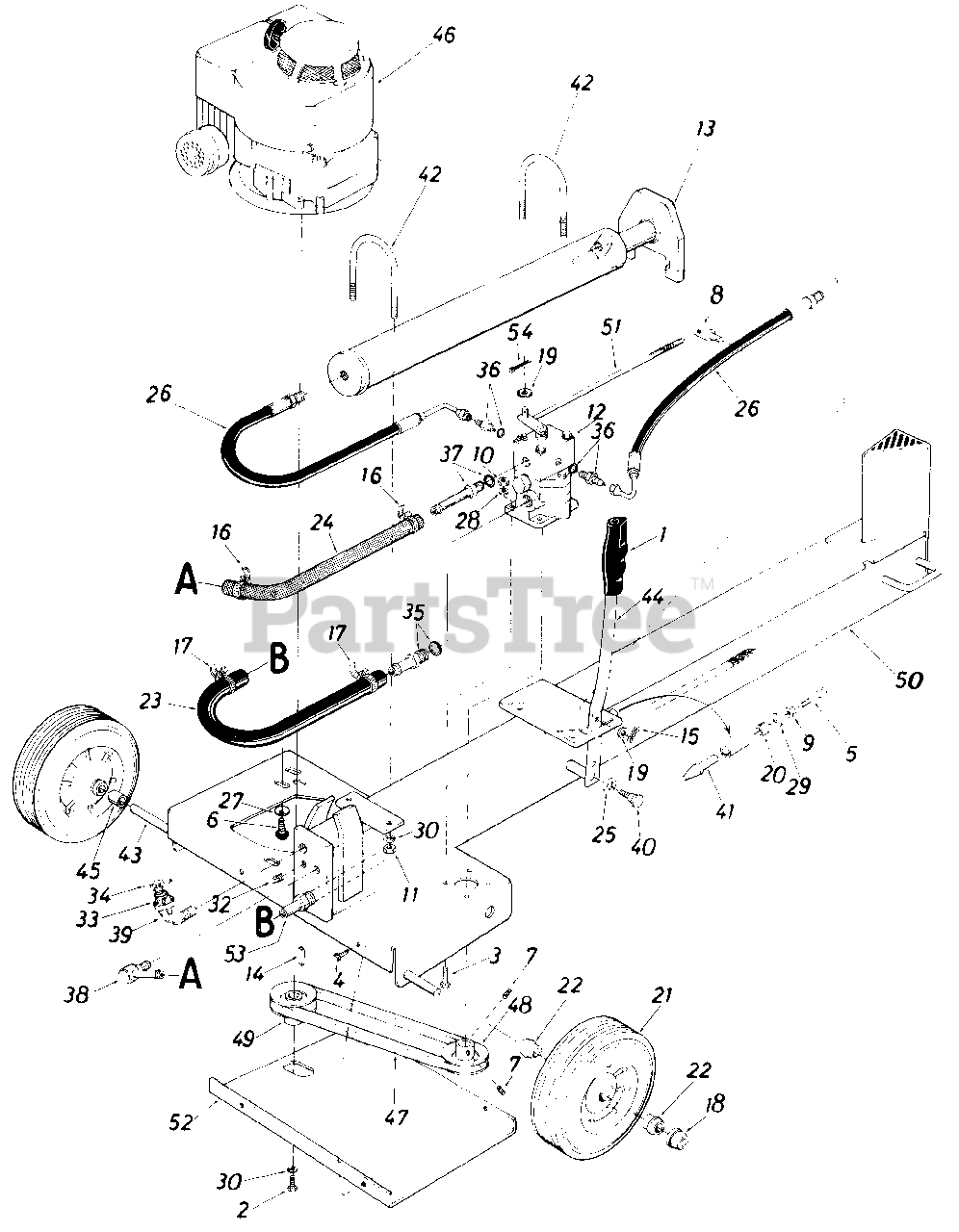

Wheel, Cylinder And Strainer Tube Assemblies Parts Diagram

  • Title

1

Cub Cadet 08118

Grip
(Superseded to 920-0233)

$

$

Not available

2

Cub Cadet 710-0152

Hex Bolt 3/8-24 x 1.00" Lg.
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 710-0376

Hex Bolt 5/16-18 x 1.00" Lg.

$3.99

$

In Stock, Qty 17

0

4

Cub Cadet 710-0599

Hex Wash. Hd. TT Tap Scr 1/4-20 x .50" Lg.

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0624

Hex Bolt 5/16-24 x 1.5 Lg.

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-0649

Hex Wash. Hd. TT Tap Scr. 3/8 16 x .87" Lg.

$

$

Not available

7

Cub Cadet 710-0938

Set Scr. 1/4-28 x .25" Cup

$

$

Not available

8

Cub Cadet 711-0628

Adjustment Ferrule 5/16-18 Thd.

$

$

Not available

9

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

10

Cub Cadet 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 717-0803

Valve in Head Pump Ass'y.

Note: Code N

$

$

Currently unavailable

13

Cub Cadet 717-0804

Cylinder Ass'y.

Note: Code N

$

$

Currently unavailable

14

Cub Cadet 714-0133

Sq. Key 3/16 x 1-1/2" Lg.

$4.49

$

In Stock, Qty 12

0

15

Cub Cadet 714-0104

Hair Pin Cotter

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 726-0146

Hose Clamp 3/4" I.D.

$

$

Not available

17

Cub Cadet 726-0173

Hose Clamp 1.0" I.D.
(Superseded to 726-0132)

$14.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 726-0214

Push Cap .625" Dia. Black

$9.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0264

Fl.-Washer 5/16" I.D. x 5/8" O.D.

$6.49

$

In Stock, only 1 left!

0

20

Cub Cadet 732-0252

Compression Spring .64 I.D. x .81 Lg.

$

$

Not available

21

Cub Cadet 734-0736

Wheel Ass'y. Comp. 10. x 2.75

$

$

Not available

22

Cub Cadet 741-0116

Flange Bearing

$

$

Not available

23

Cub Cadet 727-0291

Suction Hose 3/4" I.D. (Tank to Pump)

Note: Code N

$

$

Currently unavailable

24

Cub Cadet 727-0292

Return Hose 1/2" I.D. (Pump to Tank)

Note: Code N

$

$

Not available

25

Cub Cadet 736-0232

Wave Wash. .53" I.D. x .78" O.D.

$4.49

$

In Stock, Qty 18

0

26

Cub Cadet 727-0294

High Pressure Hose (Forward 5 Return)

Note: Code N

$

$

Not available

27

Cub Cadet 736-0105

Bell.-Wash. .400" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0159

Fl.-Wash. .341" I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

32

Cub Cadet 737-0104

Plug 1/4 NPTF Sq. Hd.

$

$

Currently unavailable

33

Cub Cadet 737-0187

Female Adapter 1/4 NPTF

Note: Code N

$

$

Currently unavailable

34

Cub Cadet 737-0161

Breather Valve 1/4 NPTF-M

$

$

Currently unavailable

35

Cub Cadet 737-0182

Adapter 3/4 Tubing to 3/4-16 M-Boss

Note: Code N

$

$

Currently unavailable

36

Cub Cadet 737-0183

Adapter - or Boss to MJIC 9/16-18 to 7/16-20

Note: Code N

$

$

Currently unavailable

37

Cub Cadet 737-0184

Adapter 1/2 Tube 9/16-18 O.R. M-Boss

Note: Code N

$

$

Currently unavailable

38

Cub Cadet 737-0185

90° Elbow Adapter 1/2" Tube 1/2 NPTF

Note: Code N

$

$

Currently unavailable

39

Cub Cadet 737-0186

90° Elbow - 1/2 NPTF Nipple

Note: Code N

$

$

Not available

40

Cub Cadet 738-0147

Shld. Scr. .498 Dia. x .170" Lg.

$

$

Not available

41

Cub Cadet 738-0406

Return Stroke Stop Plunger

$

$

Not available

42

Cub Cadet 747-0455

Cylinder Support Rod

$

$

Currently unavailable

43

Cub Cadet 747-0458

Axle Shaft 5/8" Dia. x 25.25" Lg.

Note: Code N

$

$

Not available

44

Cub Cadet 749-0625

Engagement Lever .88" O.D. x 17" Lg.

Note: Code N

$

$

Currently unavailable

45

Cub Cadet 750-0118

Spacer 5/8" I.D. x 7/8" O.D. x .90" Lg.
(Superseded to 950-0118)

$

$

Not available

46

Engine 3-1/2 H.P.

$

$

Not available

47

Cub Cadet 754-0278

(4L) Belt 1/2" V x 30" Lg.

Note: Code N

$

$

Not available

48

Cub Cadet 756-0426

1/2" V-Pulley 5/8" I.D. x 3-1/4" O.D.

Note: Code N

$

$

Not available

49

Cub Cadet 756-0425

1/2" V-Pulley 7/8" I.D. x 3-1/4" O.D.

Note: Code N

$

$

Not available

50

Cub Cadet 781-0001

Oil Tank & Frame Ass'y. Comp.

Note: Code N

$

$

Currently unavailable

51

Cub Cadet 747-0457

Engagement Rod 5/16-24 Thd.

Note: Code N

$

$

Currently unavailable

52

Cub Cadet 781-0008

Belt Cover

Note: Code N

$

$

Currently unavailable

53

Cub Cadet 15234

Strainer Tube Ass'y.

$

$

Currently unavailable

54

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

Usually ships in 3-6 days

0
