64 Novo Cut (964954003) - Husqvarna Walk-Behind Reel Mower (2000-08) PRODUCT COMPLETE Parts Diagram

Walk-Behind Reel Mower

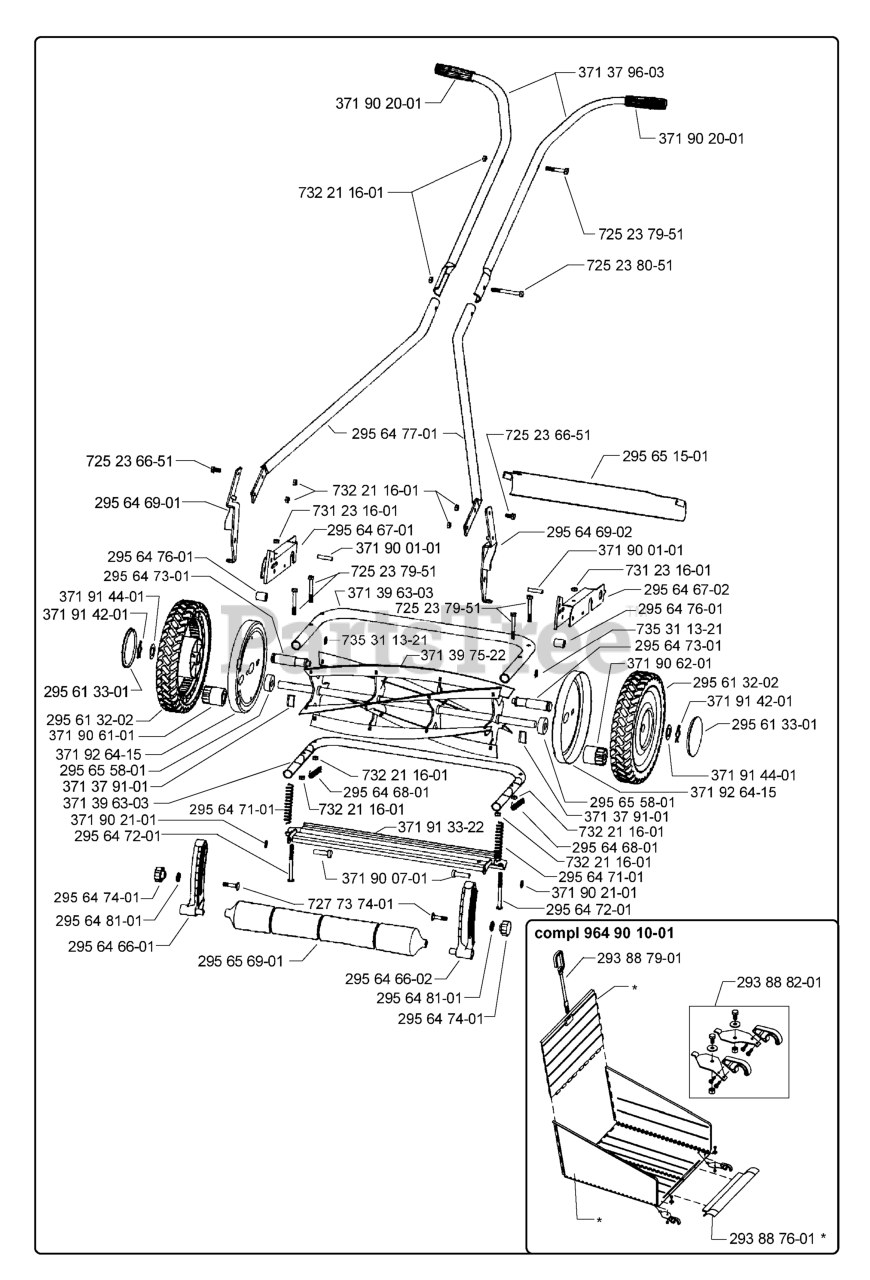

PRODUCT COMPLETE Parts Diagram

  • Title

371 91 42-01

Husqvarna 371914201

SPRING

$7.99

$

Usually ships in 3-10 days

0

295 64 81-01

Husqvarna 295648101

WASHER
(Superseded to 531007890)

$30.99

$

Usually ships in 3-10 days

0

371 91 33-22

Husqvarna 371913322

BLADE

$79.99

$

Usually ships in 3-10 days

0

732 21 16-01

Husqvarna 732211601

LOCKNUT M6

$4.99

$

Usually ships in 3-10 days

0

295 65 69-01

Husqvarna 295656901

ROLLER

$

$

Not available

731 23 16-01

Husqvarna 731231601

NUT

$6.49

$

In Stock, Qty 5

0

725 23 79-51

Husqvarna 725237951

SCREW

$7.99

$

In Stock, only 1 left!

0

295 64 72-01

Husqvarna 295647201

BOLT

$

$

Not available

371 37 96-03

Husqvarna 371379603

HANDLE

$34.99

$

Usually ships in 3-10 days

0

295 64 73-01

Husqvarna 295647301

SHAFT

$

$

Not available

295 64 68-01

Husqvarna 295646801

SPRING

$26.99

$

Usually ships in 3-10 days

0

725 23 66-51

Husqvarna 725236651

SCREW

$4.99

$

In Stock, only 3 left!

0

295 61 33-01

Husqvarna 295613301

HUBCAP
(Superseded to 295613305)

$

$

Not available

295 64 66-02

Husqvarna 295646602

HEIGHT GAUGE

$34.99

$

Usually ships in 3-10 days

0

295 61 32-02

Husqvarna 295613202

WHEEL
(Superseded to 295696301)

$45.99

$

Usually ships in 3-10 days

0

295 64 76-01

Husqvarna 295647601

SPACER

$

$

Not available

295 64 71-01

Husqvarna 295647101

SPRING

$4.99

$

Usually ships in 3-10 days

0

295 64 69-02

Husqvarna 295646902

BRACKET

$

$

Not available

295 64 69-01

Husqvarna 295646901

BRACKET

$

$

Not available

295 64 74-01

Husqvarna 295647401

KNOB

$7.99

$

Usually ships in 3-10 days

0

371 91 44-01

Husqvarna 371914401

WASHER

$

$

Not available

371 37 91-01

Husqvarna 371379101

PAWL

$6.99

$

Usually ships in 3-10 days

0

371 90 01-01

Husqvarna 371900101

P/N NOT AVAILABLE

$

$

Not available

371 90 20-01

Husqvarna 371902001

HANDLE
(Superseded to 295700001)

$13.99

$

Usually ships in 3-10 days

0

371 90 61-01

Husqvarna 371906101

GEAR **

$34.99

$

Usually ships in 3-10 days

0

725 23 80-51

Husqvarna 725238051

SCREW M6X50

$4.99

$

Usually ships in 3-10 days

0

295 64 67-02

Husqvarna 295646702

BRACKET

$

$

Not available

371 39 63-03

Husqvarna 371396303

FRAME

$

$

Not available

295 65 15-01

Husqvarna 295651501

P/N NOT AVAILABLE

$

$

Not available

295 65 58-01

Husqvarna 295655801

BEARING

$28.99

$

Usually ships in 3-10 days

0

371 90 21-01

Husqvarna 371902101

LOCKING WASHER

$10.99

$

Usually ships in 3-10 days

0

295 64 77-01

Husqvarna 295647701

LOWER HANDLE

$

$

Not available

371 90 07-01

Husqvarna 371900701

BOLT

$

$

Not available

735 31 13-21

Husqvarna 735311321

P/N NOT AVAILABLE

$

$

Not available

371 39 75-22

Husqvarna 371397522

CUTTING REEL

$

$

Not available

727 73 74-01

Husqvarna 727737401

SCREW

$7.99

$

Usually ships in 3-10 days

0

371 92 64-15

Husqvarna 371926415

PROTECTOR

$

$

Not available

371 90 62-01

Husqvarna 371906201

GEAR **

$31.99

$

Usually ships in 3-10 days

0

295 64 66-01

Husqvarna 295646601

HEIGHT GAUGE

$31.99

$

Usually ships in 3-10 days

0

295 64 67-01

Husqvarna 295646701

BRACKET

$

$

Not available
