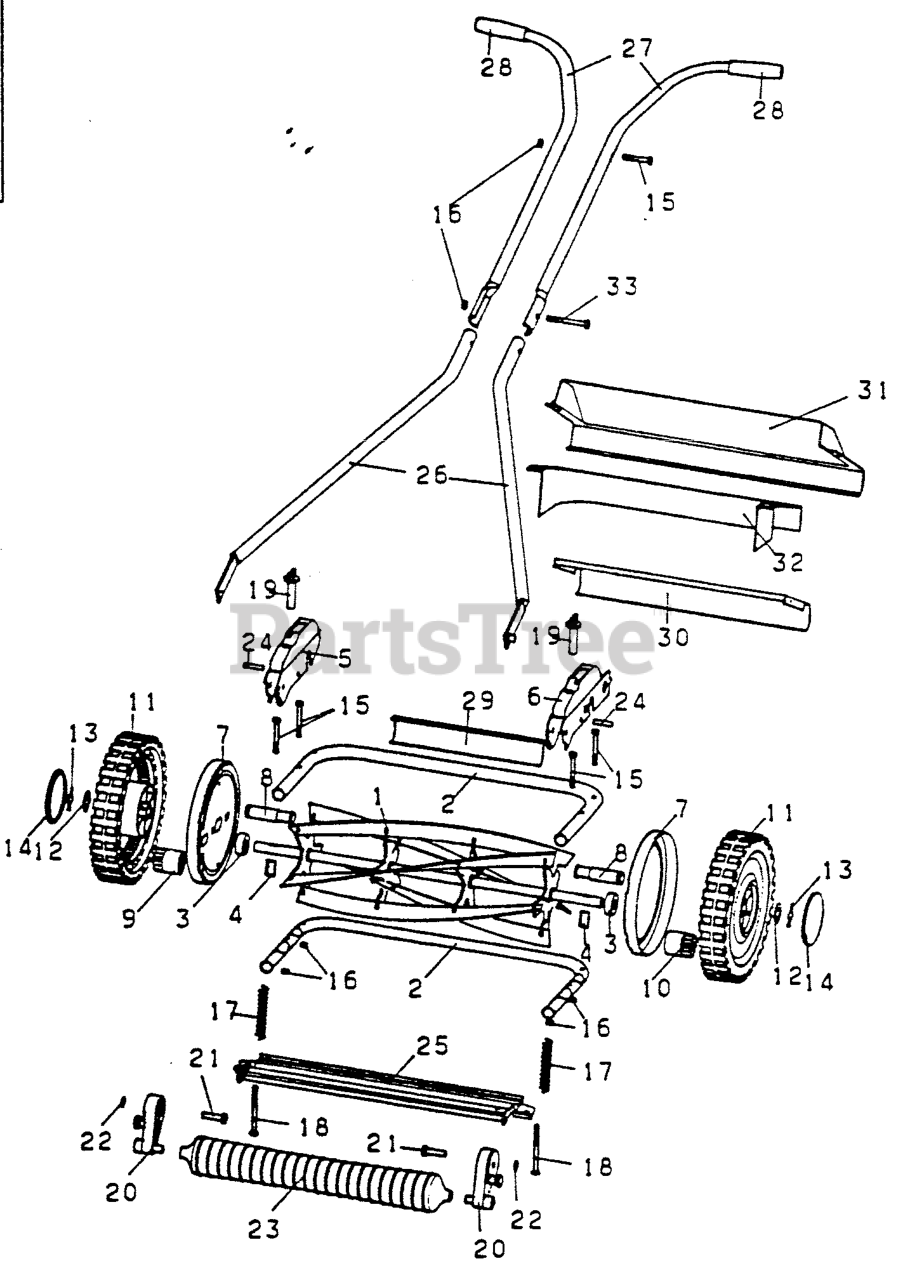

64 Novo Cut - Husqvarna Walk-Behind Reel Mower (2007-09) General Assembly Parts Diagram

Walk-Behind Reel Mower

General Assembly Parts Diagram

  • Title

1

Husqvarna 371397562

Note: Mod. 33cm State colour and trade mark when ordering painted parts

$

$

Currently unavailable

1

Husqvarna 371397561

CUTTER REEL CPL
(Superseded to 371397501)

Note: Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

2

Husqvarna 371396304

Note: Mod. 33cm

$

$

Currently unavailable

2

Husqvarna 371396303

FRAME

Note: Mod. 40cm

$

$

Not available

3

Husqvarna 371913101

BEARING
(Superseded to 295655801)

Note: Mod. 33cm/Mod. 40cm

$14.99

$

Usually ships in 3-10 days

0

4

Husqvarna 371379101

PAWL

Note: Mod. 33cm/Mod. 40cm

$14.99

$

Usually ships in 3-10 days

0

5

Husqvarna 371396763

BRACKET L (ORANGE)
(Superseded to 371396705)

Note: Mod. 33cm/Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

6

Husqvarna 371396764

BRACKET R (ORANGE)
(Superseded to 371396706)

Note: Mod. 33cm/Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

7

Husqvarna 371926461

SHIELD
(Superseded to 371926401)

Note: Mod. 33cm/Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

8

Husqvarna 371914101

SHAFT

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

9

Husqvarna 371169001

PINION L
(Superseded to 371914701)

Note: Mod. 33cm/Mod. 40cm Plastic

$

$

Not available

9

Husqvarna 371906101

GEAR **

Note: Mod. 33cm/Mod. 40cm Metal

$23.99

$

Usually ships in 3-10 days

0

10

Husqvarna 371166901

Note: Mod. 33cm/Mod. 40cm Plastic

$

$

Currently unavailable

10

Husqvarna 371906201

GEAR **

Note: Mod. 33cm/Mod. 40cm Metal

$

$

Not available

11

Husqvarna 295613201

WHEEL
(Superseded to 295696301)

Note: Mod. 33cm/Mod. 40cm

$27.99

$

Usually ships in 3-10 days

0

12

Husqvarna 371914401

WASHER

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

13

Husqvarna 371914201

SPRING

Note: Mod. 33cm/Mod. 40cm

$17.99

$

Usually ships in 3-10 days

0

14

Husqvarna 295613301

HUBCAP
(Superseded to 295613305)

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

15

Husqvarna 725237951

SCREW

Note: Mod. 33cm/Mod. 40cm

$8.99

$

In Stock, only 2 left!

0

16

Husqvarna 732211601

LOCKNUT M6
(Superseded to 732251601)

Note: Mod. 33cm/Mod. 40cm

$3.99

$

In Stock, Qty 10

0

17

Husqvarna 371395801

SPRING

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

18

Husqvarna 371907401

SCREW

Note: Mod. 33cm/Mod. 40cm

$8.49

$

Usually ships in 3-10 days

0

19

Husqvarna 371167801

KNOB

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

20

Husqvarna 371399301

ROLLER HOLDER

Note: Mod. 33cm/Mod. 40cm

$53.99

$

Usually ships in 3-10 days

0

21

Husqvarna 371900701

BOLT

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

22

Husqvarna 371902101

LOCKING WASHER

Note: Mod. 33cm/Mod. 40cm

$15.99

$

Usually ships in 3-10 days

0

23

Husqvarna 371392605

ROLLER 33 NLA

Note: Mod. 33cm

$

$

Not available

23

Husqvarna 371392603

ROLLER 4/40
(Superseded to 295656901)

Note: Mod. 40cm

$34.99

$

Usually ships in 3-10 days

0

24

Husqvarna 371900101

NO LONGER AVAILABLE NLA

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

25

Husqvarna 371913362

Note: Mod. 33cm State colour and trade mark when ordering painted parts

$

$

Currently unavailable

25

Husqvarna 371913361

BED KNIFE CPL (ORNAGE)
(Superseded to 371913301)

Note: Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

26

Husqvarna 371397106

HANDLE

Note: Mod. 33cm

$

$

Not available

26

Husqvarna 371397105

HANDLE

Note: Mod. 40cm

$

$

Not available

27

Husqvarna 371379603

HANDLE

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

28

Husqvarna 371902001

HANDLE
(Superseded to 295700001)

Note: Mod. 33cm/Mod. 40cm

$

$

Not available

29

Husqvarna 2939832

Note: Mod. 33cm/Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Currently unavailable

30

Husqvarna 371910062

Note: Mod. 33cm State colour and trade mark when ordering painted parts

$

$

Currently unavailable

30

Husqvarna 371910061

PROTECTION COVER (ORANGE)
(Superseded to 371910601)

Note: Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

31

Husqvarna 371908161

PROTECTION CVR RAISED (ORANGE)

Note: Mod. 40cm State colour and trade mark when ordering painted parts

$

$

Not available

32

Husqvarna 371913604

Note: Mod. 33cm

$

$

Currently unavailable

32

Husqvarna 371913603

FRONT COVER

Note: Mod. 40cm

$

$

Not available

33

Husqvarna 725238051

SCREW M6X50

Note: Mod. 33cm/Mod. 40cm

$2.49

$

Usually ships in 3-10 days

0
