640 (590-640-100) - Cub Cadet 60" Front Loader att Boom Assembly And Bearing Boxes Parts Diagram

60" Front Loader

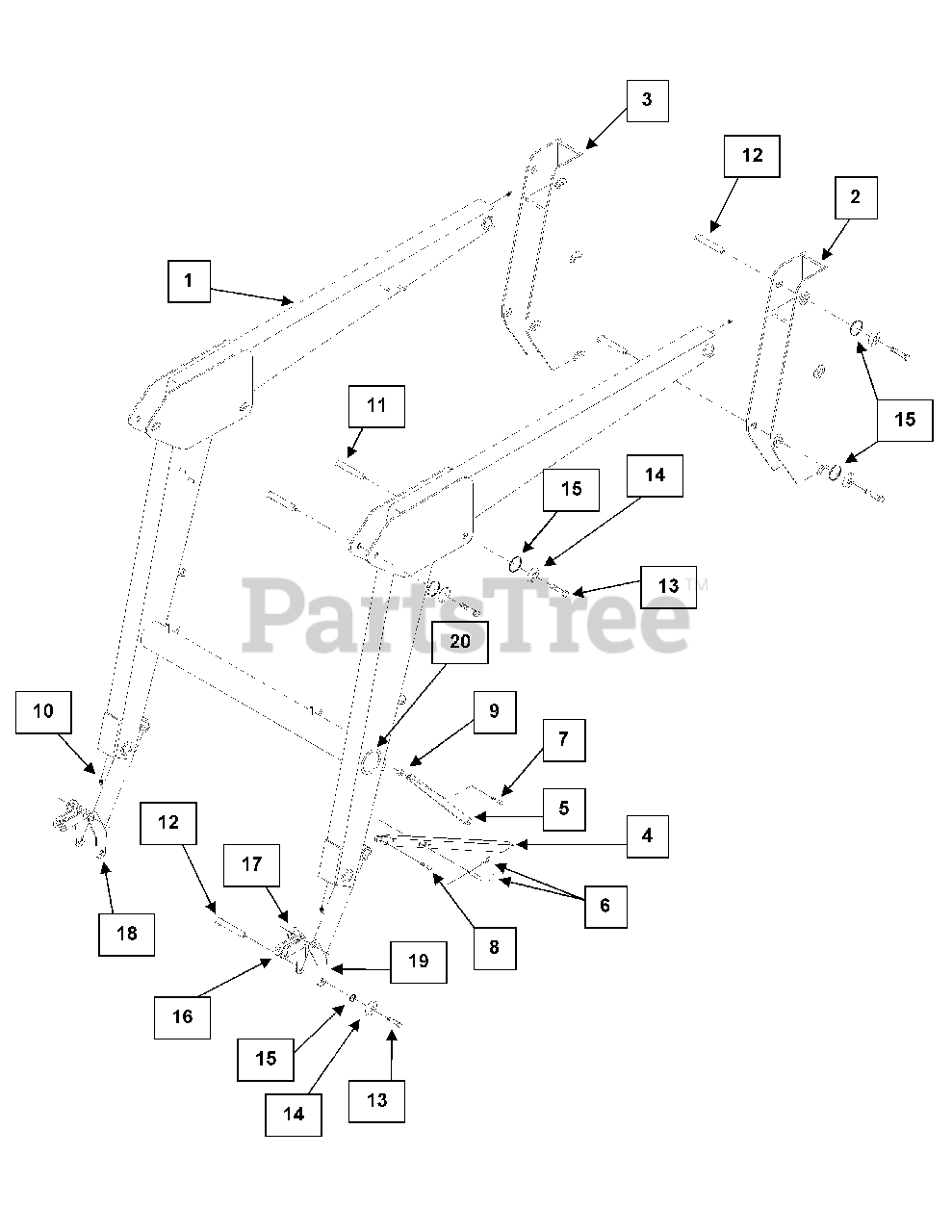

Boom Assembly And Bearing Boxes Parts Diagram

  • Title

1

Cub Cadet KD-1100-3008

Boom Assembly

$

$

Not available

2

Cub Cadet KD-1002-3015

Bearing Box, LH

$

$

Not available

3

Cub Cadet KD-1002-3016

Bearing Box, RH

$

$

Not available

4

Cub Cadet KD-1104-3001

Parking Leg

$

$

Not available

5

Cub Cadet KD-1104-3002

Parking Leg Brace

$

$

Not available

6

Cub Cadet KD-0551-3016

Bent Pin W/Hitch Pin Clip

$

$

Not available

7

Cub Cadet KD-0545-2053

Hex Head Cap Screw, 3/8" x 1 1/2"

$

$

Currently unavailable

8

Cub Cadet KD-0545-2052

Hex Head Cap Screw, 3/8" x 1 1/4"

$

$

Currently unavailable

9

Cub Cadet KD-0555-2034

Hex Head Lock Nut, 3/8"

$

$

Currently unavailable

10

Cub Cadet KD-0530-2002

Grease Fitting

$

$

Not available

11

Cub Cadet KD-0550-3012

Pivot Pin, 1" x 70mm

$

$

Not available

12

Cub Cadet KD-0550-3013

Pivot Pin, 1" x 87mm

$

$

Not available

13

Cub Cadet KD-0545-2024

Hex Head Cap Screw, 5/16" x 3/4"

$

$

Currently unavailable

14

Cub Cadet KD-0541-3002

Dust Cover

$14.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KD-0520-3000

O-Ring

$

$

Not available

16

Cub Cadet KD-1108-3003

Bucket Linkage Assembly

$

$

Not available

17

Cub Cadet KD-1108-3007

Boom Linkage Assembly, LH

$

$

Not available

18

Cub Cadet KD-1108-3008

Boom Linkage Assembly, RH

$

$

Not available

19

Cub Cadet KD-1108-3009

Boom Linkage

$16.99

$

In Stock, only 1 left!

0

20

Cub Cadet KD-0664-2000

Crosstube Cover

$

$

Not available
