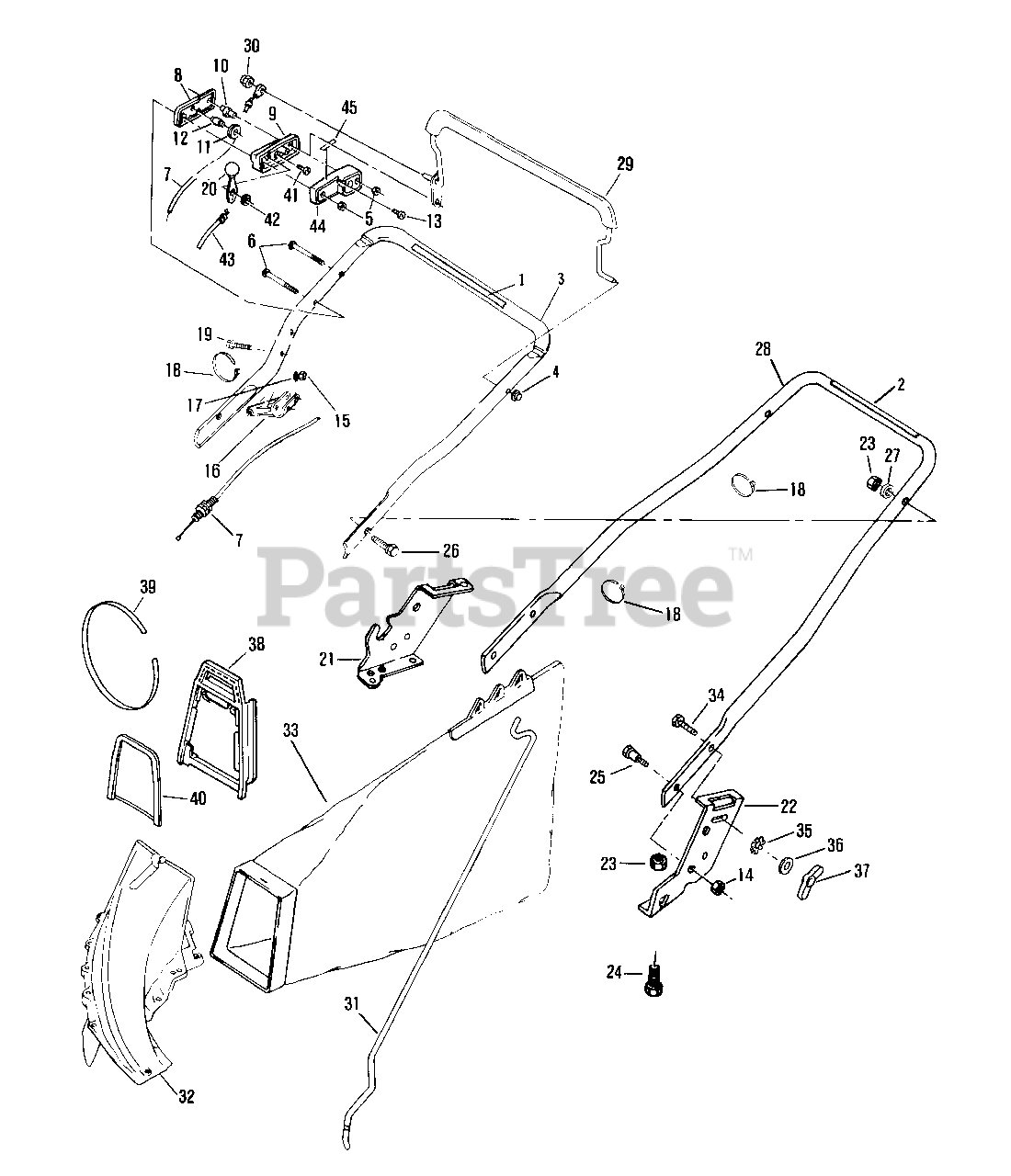

6431 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HANDLE GROUP MODEL: 6431 Parts Diagram

Walk-Behind Mower

HANDLE GROUP MODEL: 6431 Parts Diagram

  • Title

1

Lawn-Boy 612670

Decal-Engine/Blade Control
(Superseded to 612651)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612669

Decal-Starting Instructions

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 612683

Top Handle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 16

0

5

Lawn-Boy 611258

Nut-Hex-Centerlock

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 611233

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 683041

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$114.99

$

Usually ships in 3-6 days

0

8

Lawn-Boy 611777

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$27.99

$

In Stock, only 1 left!

0

9

Lawn-Boy 612633

Case-Throttle Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

10

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

14

Lawn-Boy 610358

Nut-Handle to Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 12

0

15

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

16

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

18

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

19

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

20

Lawn-Boy 683663

Lever/Knob

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

21

Lawn-Boy 683599

Handle Bracket-R.H.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 612465

Handle Bracket-L.H.
(Superseded to 613587)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

23

Lawn-Boy 608311

Nut-Handle Bracket and Handle

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 610404

Bolt-Handle Bracket to Housing
(Superseded to 146209)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 610357

Bolt-Handle to Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 611205

Screw-Handle
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

27

Lawn-Boy 609739

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

28

Lawn-Boy 612682

Handle-Bottom

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 683478

Control Lever and Nut Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$138.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

31

Lawn-Boy 607561

Grass Bag Rod

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

32

Lawn-Boy 683792

Chute Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 683788

Grass Bag

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

34

Lawn-Boy 146012

Screw
(Superseded to 3230-3)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

35

Lawn-Boy 145887

Lockwasher

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 145875

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

37

Lawn-Boy 607544

Wing Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

38

Lawn-Boy 612671

Adapter-Chute

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

39

Lawn-Boy 612993

Strap
(Superseded to 92-1039)

Note: Important Note: Replacement parts may not always be available in matching colors.

$25.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 612830

Brace-Chute

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

41

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

42

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 5

0

43

Lawn-Boy 612588

Cable-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$50.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 612634

Case-Throttle,Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

45

Lawn-Boy 612643

Decal-Throttle Control
(Superseded to 612698)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
