645 (242-645-100) - Cub Cadet Log Splitter (1982) Frame, Wheel and Oil Tank & Beam Assemblies Parts Diagram

Log Splitter

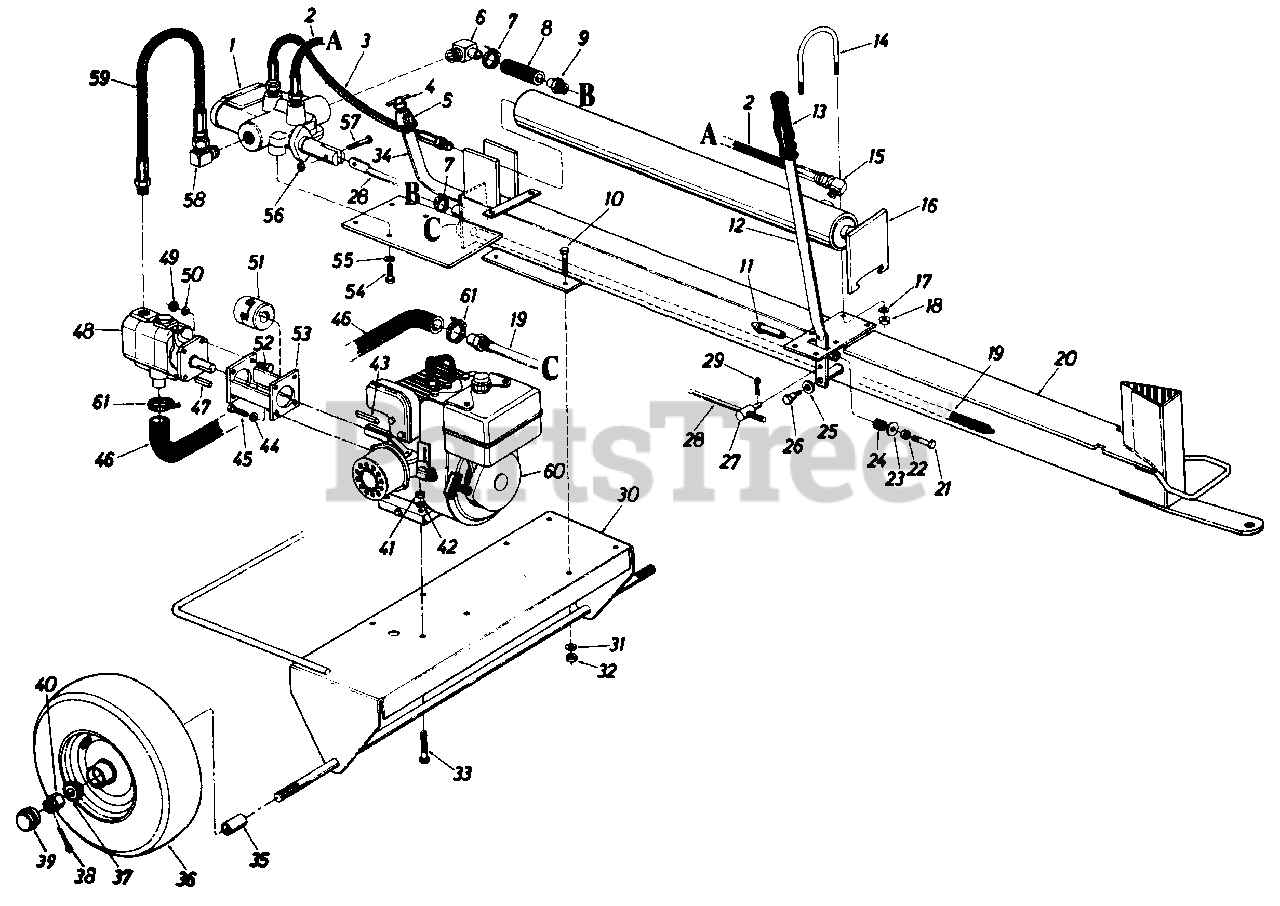

Frame, Wheel and Oil Tank & Beam Assemblies Parts Diagram

  • Title

1

Cub Cadet 717-0407

Control Valve

$

$

Currently unavailable

2

Cub Cadet 727-0231

Return Stroke High Pressure Hose

$

$

Not available

3

Cub Cadet 727-0211

Forward Stroke High Pressure Hose

$

$

Currently unavailable

4

Cub Cadet 737-0161

Breather Valve

$

$

Currently unavailable

5

Cub Cadet 737-0173

Female Adapter 3/4-14 x 1/4-18 N.P.T F

$

$

Currently unavailable

6

Cub Cadet 737-0153

Return Elbow

$53.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 726-0173

Hose Clamp 3/4" I.D.
(Superseded to 726-0132)

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 727-0210

Return Hose 3/4" I.D. x 2.62" Lg.

$

$

Currently unavailable

9

Cub Cadet 737-0172

Nipple 1/2-14 N.P.T.F. x 1.5" Lg.

$

$

Currently unavailable

10

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg. (Grade 5)
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

11

Cub Cadet 738-0406

Return Stroke Stop Plunger

$

$

Not available

12

Cub Cadet 750-0428

Engagement Handle

$

$

Currently unavailable

13

Cub Cadet 08118

Grip
(Superseded to 920-0233)

$

$

Not available

14

Cub Cadet 747-0354

Cylinder Support Rod

Note: (For 4" Dia.)

$

$

Currently unavailable

15

Cub Cadet 737-0152

High Pressure 90° Elbow 3/8 N.P.T. x 9/16-18

$

$

Currently unavailable

16

Cylinder Ass'y.

Note: (See breakdown)

$

$

Not available

17

Cub Cadet 736-0169

L.-Wash. 3/8" I.D.

$3.49

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0798

Hex Nut 3/8-16 Thd.

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 15234

Strainer Tube Ass'y.

$

$

Currently unavailable

20

Cub Cadet 15235

Complete Oil Tank & Beam

$

$

Currently unavailable

21

Cub Cadet 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

23

Cub Cadet 736-0159

Fl.-Wash. .34 I.D. x .88" O.D.

$3.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0252

Compression Spring .64 O.D. x .81 Lg.

$

$

Not available

25

Cub Cadet 736-0160

Fl.-Wash. .53" I.D. x .94" O.D.

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 738-0234

Shld. Bolt .500" Dia. x .295

$9.99

$

In Stock, only 4 left!

0

27

Cub Cadet 711-0198

Pivot Bushing
(Superseded to 911-0198)

$12.99

$

In Stock, Qty 20+

0

28

Cub Cadet 747-0297

Engagement Rod .38 Dia. x 31" Lg.

$

$

Not available

29

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x .75" Lg.

$4.49

$

In Stock, only 4 left!

0

30

Cub Cadet 13748

Frame Ass'y.

$

$

Currently unavailable

31

Cub Cadet 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

33

Cub Cadet 710-0409

Hex Bolt 5/16-24 x 1.75" Lg.

$4.49

$

Usually ships in 3-6 days

0

34

Cub Cadet 750-0501

Filler Tube

$

$

Not available

35

Cub Cadet 750-0442

Spacer .75" I.D. x 1.12" O.D. x 1.56" Lg.

$

$

Not available

36

Cub Cadet 734-0106

Wheel Ass'y. Comp. 4.80/4.00 x 8

$

$

Currently unavailable

Cub Cadet 734-1017

Wheel Rim Ass'y.
(Superseded to 634-0188)

Note: (Service Only)

Variations

Cub Cadet 734-1017-0662

Rim Assembly, Gray 3.75 X 8.0 - OYSTER GRAY (0662)

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0674

Rim Assembly, Gray 3.75 X 8.0 - YARDMAN YELLOW (0674)

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-1017-0499

USE 634-0189 RIM ASM-3.75 X 8 - CUB BEIGE (0499)

$

$

Not available

$175.99

$

Usually ships in 3-6 days

0

Cub Cadet 734-0872

Tire Only 4.80/4.00 x 8

Note: (Service Only)

$157.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 741-0107

Tapered Roller Bearing
(Superseded to 941-0107)

Note: (Service Only)

$44.99

$

In Stock, Qty 20+

0

38

Cub Cadet 714-0121

Cotter Pin 5/32" Dia. x 1.00" Lg.
(Superseded to 914-0121)

$

$

Not available

39

Cub Cadet 734-0873

Hub Cap

Note: (Service Only)

$11.99

$

In Stock, only 2 left!

0

40

Cub Cadet 712-0299

Hex Castle Nut 3/4-16 Thd.

$

$

Currently unavailable

41

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

42

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

43

Cub Cadet 714-0128

Sq. Key 1/4" x 1/4" x 1.00" Lg.

$4.49

$

In Stock, Qty 6

0

44

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$3.99

$

In Stock, Qty 16

0

46

Cub Cadet 727-0229

Suction Hose

$

$

Currently unavailable

47

Sq. Key

Note: (Comes with Ref. No. 48)

$

$

Not available

48

Cub Cadet 717-0461

Pump with Sq. Key 1/8" x 1/8" x 1.00" Lg

$

$

Currently unavailable

49

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

50

Cub Cadet 736-0119

L.-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 717-0462

Flexible Coupling

$

$

Not available

52

Cub Cadet 710-0117

Hex Bolt 5/16-24 x 1.00" Lg.
(Superseded to 710-0888)

$3.99

$

In Stock, Qty 11

0

53

Cub Cadet 13295

Coupling Support Brkt. Ass'y.

$

$

Currently unavailable

54

Cub Cadet 710-0216

Hex Bolt 3/8-16 x .75" Lg.

$3.99

$

In Stock, Qty 17

0

55

Cub Cadet 736-0105

Belleville Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 712-0107

Hex Cent. L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

57

Cub Cadet 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, only 1 left!

0

58

Cub Cadet 737-0171

90° Solid Male Adapter

$

$

Not available

59

Cub Cadet 770-0232

High Pressure Hose Ass'y.

$

$

Currently unavailable

60

Engine

$

$

Not available

61

Cub Cadet 726-0132

Hose Clamp 1" I.D.

$14.99

$

Usually ships in 3-6 days

0
