645 (242-645-100) - Cub Cadet Shredder Engine (1992) B&S 5 HP Starter, Clutch, and Cylinder Assembly Parts Diagram

Shredder Engine

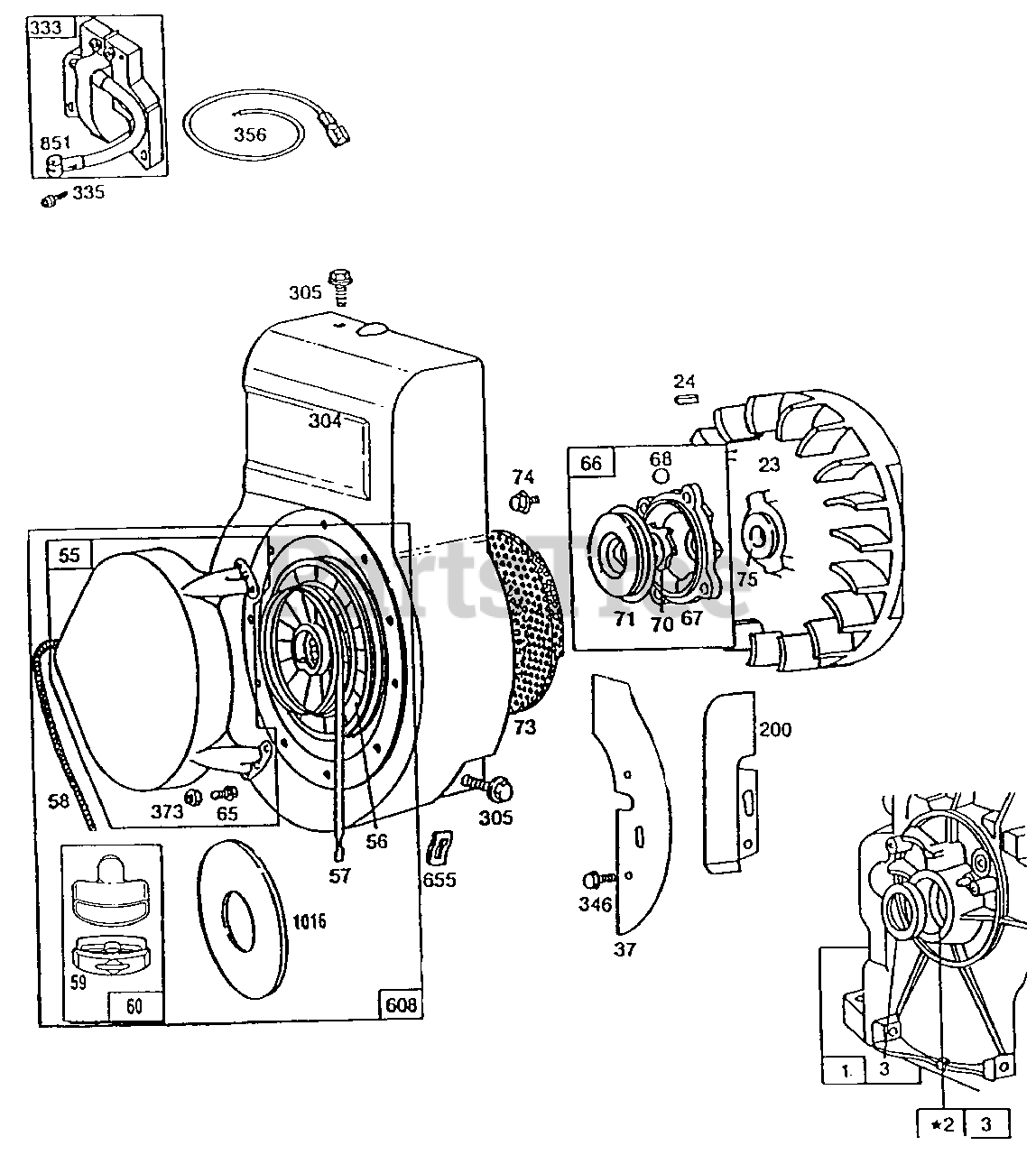

B&S 5 HP Starter, Clutch, and Cylinder Assembly Parts Diagram

  • Title
1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

2

Cub Cadet BS-297565

Bushing--Cylinder

Note: (Requires special tools for installation.)

$20.99

$

Usually ships in 2-12 days

0

3

Cub Cadet BS-299819

Seal--Oil
(Superseded to BS-299819S)

$5.49

$

In Stock, only 4 left!

0

23

Cub Cadet BS-297229

Flywheel--Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key--Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222443

Guard--Flywheel

$

$

Not available

55

Cub Cadet BS-299431

Housing--Rewind Starter

$

$

Not available

56

Cub Cadet BS-295871

Pulley--Rewind Starter

$14.99

$

In Stock, Qty 5

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$14.99

$

Usually ships in 2-12 days

0

58

Cub Cadet BS-66884

Rope--Rewind Starter--63" Long
(Superseded to BS-692188)

Note: (If longer rope is required, order rope No. BS-66894 and cut to length.)

$8.49

$

In Stock, only 1 left!

0

59

Cub Cadet BS-490653

Insert Starter Handle

$5.49

$

In Stock, Qty 15

0

60

Cub Cadet BS-490652

Handle--Rewind Starter

$5.49

$

In Stock, Qty 15

0

65

Cub Cadet BS-94128

Screw--Stamped Steel Housing Mtg. Sem
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 9

0

66

Cub Cadet BS-399671

Clutch Ass'y.--Rewind Starter

$34.99

$

In Stock, Qty 9

0

67

Cub Cadet BS-394897

Housing--Starter Clutch

$36.99

$

In Stock, only 1 left!

0

68

Cub Cadet BS-63770

Ball--Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet--Rewind Starter
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer--Clutch Retainer

$

$

Not available

73

Cub Cadet BS-221923

Screen--Starter Pulley

$29.99

$

Usually ships in 2-12 days

0

74

Cub Cadet BS-93490

Screw--Sem
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

75

Cub Cadet BS-224061

Washer--Spring

$

$

Not available

200

Cub Cadet BS-223886

Guide--Air

$

$

Not available

304

Cub Cadet BS-490169

Housing--Blower

$

$

Not available

305

Cub Cadet BS-94608

Screw--Blower Housing Mounting
(Superseded to BS-692198)

$5.99

$

In Stock, only 2 left!

0

333

Cub Cadet BS-397358

Armature Assembly

$53.99

$

In Stock, Qty 6

0

335

Cub Cadet BS-93414

Screw--Armature Mtg. Sem

$

$

Not available

346

Cub Cadet BS-93705

Screw-Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 15

0

356

Cub Cadet BS-398808

Wire--Ground

$11.99

$

In Stock, only 1 left!

0

373

Cub Cadet BS-92987

Nut--Hex
(Superseded to 712-0349)

$4.99

$

In Stock, Qty 5

0

608

Cub Cadet BS-390463

Starter Ass'y.--Rewind

$

$

Not available

655

Cub Cadet BS-222598

Anchor Spring

$

$

Not available

851

Cub Cadet BS-221798

Cable Terminal--Ignition
(Superseded to BS-493880S)

$3.49

$

In Stock, Qty 20+

0

1016

$9.49

$

In Stock, only 1 left!

0
