645 (247-645-100) - Cub Cadet Log Splitter Engine (1987) B&S 8.0 HP-190402-3006-01 Part 2 Parts Diagram

Log Splitter Engine

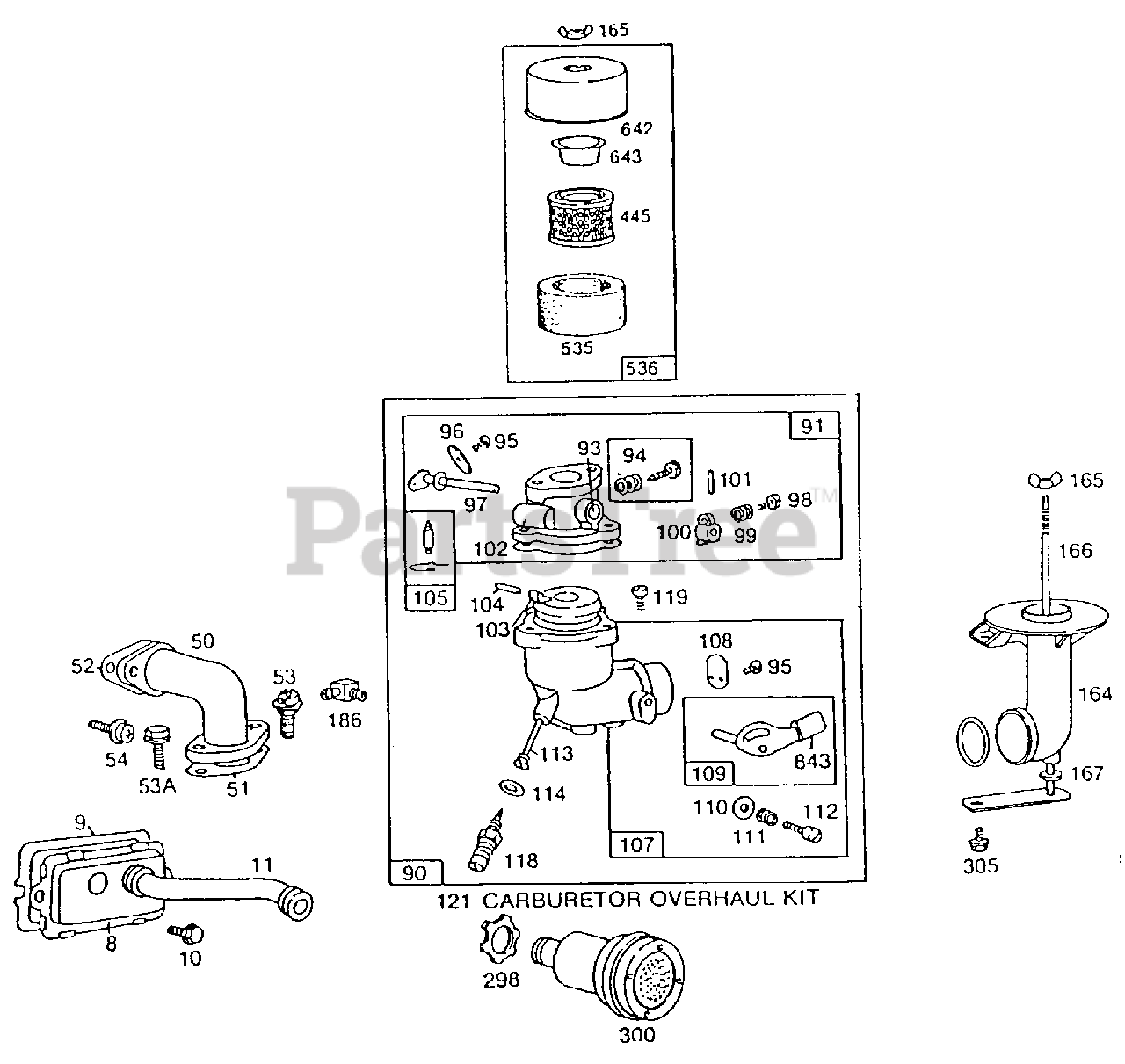

B&S 8.0 HP-190402-3006-01 Part 2 Parts Diagram

  • Title

8

Cub Cadet BS-390321

Breather Assembly

$

$

Not available

9

Cub Cadet BS-27803

Gasket-Valve Cover
(Superseded to BS-27803S)

Note: (Included in Gasket Set-Part No. 299577)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-93394

Screw-Sem
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-280267

Tube-Breather

$12.99

$

In Stock, only 3 left!

0

Cub Cadet BS-27876

Gasket-Crankcase Cover-.005" Thick

$8.49

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-212488

Elbow-Intake

$

$

Not available

51

Cub Cadet BS-270684

Gasket-Carb. Mtg.

Note: (Included in Gasket Set-Part No. 299577)

$4.99

$

In Stock, Qty 15

0

52

Cub Cadet BS-27828

Gasket-Intake Elbow Mounting
(Superseded to BS-27828S)

Note: (Included in Gasket Set-Part No. 299577)

$4.99

$

In Stock, only 1 left!

0

53

Cub Cadet BS-93956

Screw-Shoulder

$

$

Not available

53A

Cub Cadet BS-93357

Screw-Carburetor Mounting Sem

$

$

Not available

54

Cub Cadet BS-93208

Screw-Intake Elbow Mounting Sem

$8.49

$

In Stock, Qty 7

0

8

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.49

$

In Stock, Qty 5

0

90

Cub Cadet BS-390323

Carburetor Assembly (Manual Choke)

$

$

Not available

91

Cub Cadet BS-399443

Body Assembly-Upper Carburetor

$128.99

$

Usually ships in 2-12 days

0

93

Cub Cadet BS-23108

Bushing-Throttle Shaft

$

$

Not available

94

Cub Cadet BS-292681

Valve Assembly-Carburetor

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$11.99

$

In Stock, only 1 left!

0

95

Cub Cadet BS-93499

Screw-Throttle and Choke Valve Mtg. Sem
(Superseded to BS-691437)

$3.99

$

In Stock, only 2 left!

0

96

Cub Cadet BS-223370

Valve-Throttle

$

$

Currently unavailable

97

Cub Cadet BS-298826

Shaft and Lever-Throttle

$30.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-91920

Screw-Machine, Fil. Hd.-8-32 x 5/8"

$

$

Currently unavailable

99

Cub Cadet BS-26157

Spring-Throttle Adjustment
(Superseded to BS-691591)

$8.99

$

Usually ships in 2-12 days

0

100

Cub Cadet BS-212904

Stop-Throttle

$

$

Not available

101

Cub Cadet BS-93043

Pin-Throttle Stop

$

$

Not available

102

Cub Cadet BS-27918

Gasket-Carburetor Body

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$4.49

$

In Stock, Qty 7

0

103

Cub Cadet BS-99333

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

104

Cub Cadet BS-230896

Pin-Float Hinge

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Not available

105

Cub Cadet BS-394681

Valve-Fuel Inlet

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$7.99

$

In Stock, Qty 16

0

107

Cub Cadet BS-399442

Body Assembly-Lower Carburetor

$128.99

$

In Stock, only 1 left!

0

108

Cub Cadet BS-62872

Valve-Choke

$

$

Currently unavailable

109

Cub Cadet BS-391987

Shaft and Lever-Choke

$9.99

$

Usually ships in 2-12 days

0

110

Cub Cadet BS-222712

Washer-Choke Lever

$

$

Currently unavailable

111

Cub Cadet BS-26155

Spring-Choke Lever

$

$

Not available

112

Cub Cadet BS-23123

Screw-Choke Lever

$

$

Currently unavailable

113

Cub Cadet BS-398202

Nozzle-Carburetor

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$29.99

$

In Stock, only 2 left!

0

114

Cub Cadet BS-68667

Gasket-Nozzle

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$

$

Currently unavailable

118

Cub Cadet BS-99525

Valve-Needle
(Superseded to BS-99525S)

Note: (Included in Carburetor Overhaul Kit-See Ref. 121)

$12.99

$

In Stock, only 3 left!

0

119

Cub Cadet BS-94152

Screw-Hex. Hd. Sem

$

$

Not available

121

Cub Cadet BS-398235

Carburetor Overhaul Kit
(Superseded to BS-394693)

$31.99

$

In Stock, Qty 12

0

164

Cub Cadet BS-398592

Pipe Assembly-Air Cleaner- Uses: 271265 O-Ring

$45.99

$

Usually ships in 2-12 days

0

165

Cub Cadet BS-93453

Nut-Wing
(Superseded to BS-94289)

$

$

Not available

166

Cub Cadet BS-392105

Stud-Air Cleaner

$25.99

$

In Stock, only 2 left!

0

167

Cub Cadet BS-65978

Seal-Air Cleaner Stud

$5.99

$

Usually ships in 2-12 days

0

186

Cub Cadet BS-67218

Connector-Fuel Pipe

$

$

Not available

298

Cub Cadet BS-261409

Locknut-Muffler

$

$

Not available

300

Cub Cadet BS-393010

Muffler-Exhaust
(Superseded to BS-393010S)

$22.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-93158

Screw-Sem

$

$

Not available

445

Cub Cadet BS-393957

Cartridge-Air Cleaner
(Superseded to BS-393957S)

$19.99

$

In Stock, Qty 12

0

535

Cub Cadet BS-270782

Element-Air Cleaner
(Superseded to BS-271794S)

$4.99

$

In Stock, Qty 20+

0

536

Cub Cadet BS-391063

Cleaner Ass'y.-Air

$94.99

$

Usually ships in 2-12 days

0

642

Cub Cadet BS-222271

Cover-Air Cleaner

$

$

Not available

643

Cub Cadet BS-222272

Cup-Air Cleaner
(Superseded to BS-691730)

$10.99

$

In Stock, only 1 left!

0

843

Cub Cadet BS-280149

Sleeve-Choke Lever
(Superseded to BS-691895)

$4.99

$

In Stock, only 1 left!

0
