645 (590-645-100) - Cub Cadet Backhoe 8.5 ft att Subframe Assembly Parts Diagram

Backhoe 8.5 ft

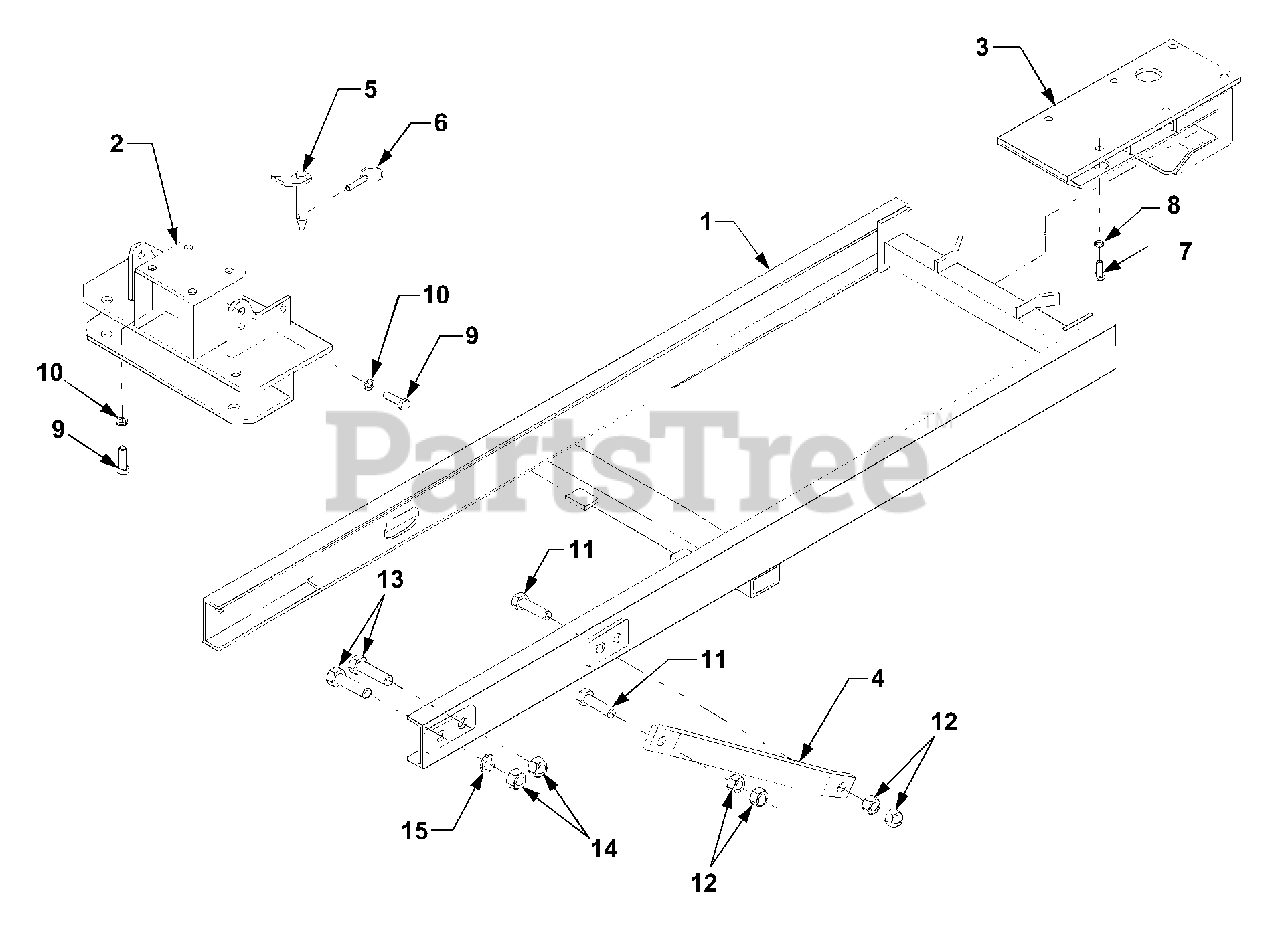

Subframe Assembly Parts Diagram

  • Title

1

Cub Cadet KD-DD03-0100-A

Subframe

$

$

Not available

2

Cub Cadet KD-DD02-0100-A

Rear Subframe Mount

$

$

Not available

3

Cub Cadet KD-DD01-0100

Front Subframe Mount

$

$

Not available

4

Cub Cadet KD-DD04-0101

Brace

$

$

Not available

5

Cub Cadet KD-DK04-0100

Retaining Pin

$

$

Not available

6

Cub Cadet KD-1008-1001

Ring Pin

$

$

Not available

7

Cub Cadet KD-1001-1238

Hex Head Screw, M12 x 1.2

$

$

Not available

8

Cub Cadet KD-1003-0012

Spring Washer

$

$

Not available

9

Cub Cadet KD-1001-1459

Hex Head Screw, M14 x 45

$

$

Not available

10

Cub Cadet KD-1003-0014

Spring Washer

$

$

Not available

11

Cub Cadet KD-1001-208C

Hex Head Screw, M20 x 2.5

$

$

Not available

12

Cub Cadet KD-1002-2082

Hex Nut, M20

$

$

Not available

13

Cub Cadet KD-1001-228D

Hex Head Screw, M22 x 2.5

$

$

Not available

14

Cub Cadet KD-1002-2282

Hex Nut, M22

$

$

Not available

15

Cub Cadet KD-1003-0022

Spring Washer M22

$

$

Not available

16

Cub Cadet KD-1001-0020

Spring Washer M20

$

$

Not available

Cub Cadet KD-DD01-0201

Spacer 34MM OD-10

Note: Not Shown

$

$

Not available
