645 C (244-645C100) - Cub Cadet Shredder Engine (1994) B&S 5 HP Air Cleaner and Muffler Ass'y Parts Diagram

Shredder Engine

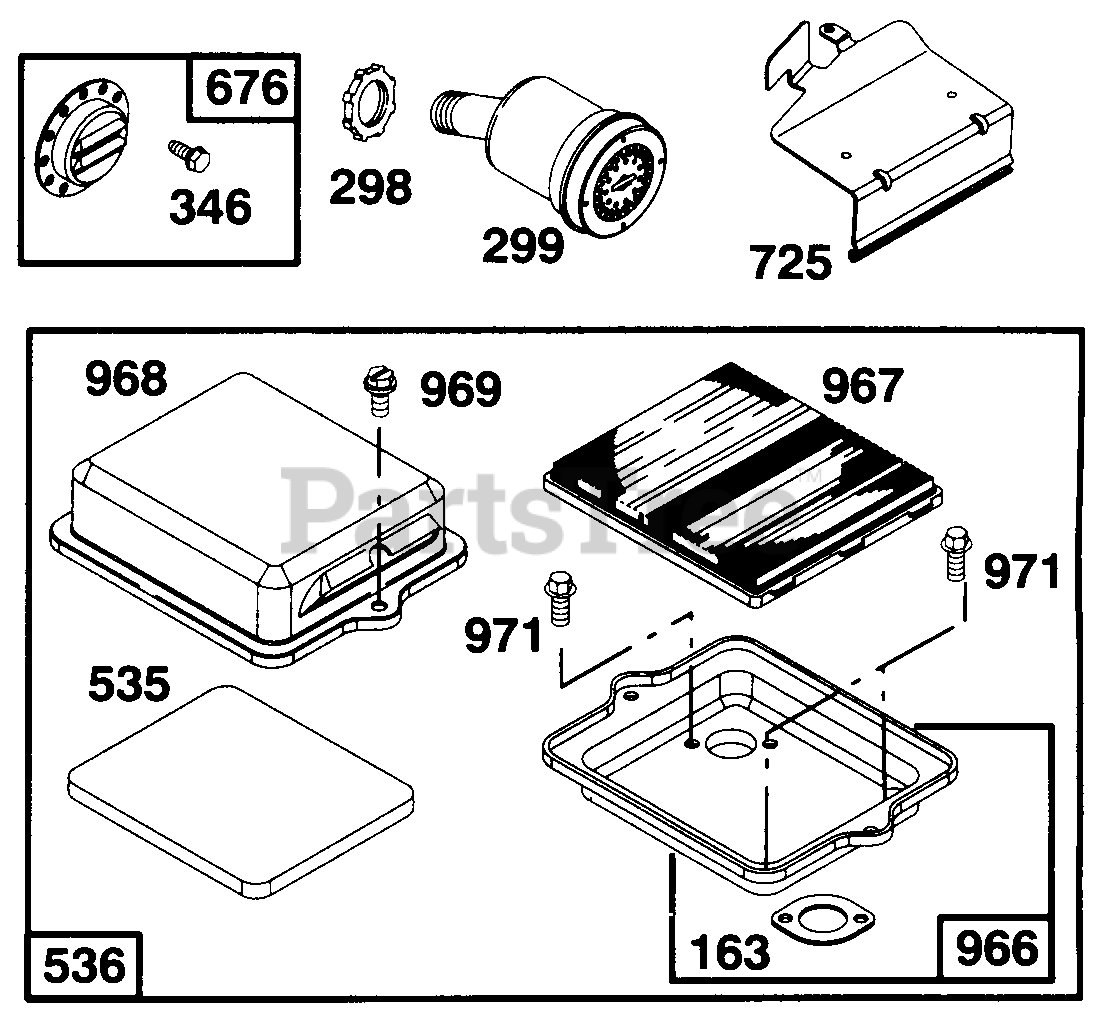

B&S 5 HP Air Cleaner and Muffler Ass'y Parts Diagram

  • Title

163

Cub Cadet BS-271935

Gasket--Air Cleaner Mounting
(Superseded to BS-271935S)

$6.49

$

In Stock, Qty 17

0

298

Cub Cadet BS-261409

Lock Nut--Muffler

$

$

Not available

299

Cub Cadet BS-393368

Muffler--Exhaust

$

$

Not available

346

Cub Cadet BS-93705

Screw--Sem
(Superseded to BS-690661)

$3.49

$

In Stock, Qty 20+

0

535

Cub Cadet BS-491435

Element--Air Cleaner
(Superseded to BS-491435S)

$4.99

$

In Stock, Qty 20+

0

536

Cub Cadet BS-494279

Cleaner--Air

$

$

Not available

676

Cub Cadet BS-393758

Deflector--Exhaust

$26.99

$

Usually ships in 2-12 days

0

725

Cub Cadet BS-223867

Shield--Heat

$

$

Not available

966

Cub Cadet BS-492797

Base Air Cleaner
(Superseded to BS-494279)

$

$

Not available

967

Cub Cadet BS-491588

Filter--Air Cleaner
(Superseded to BS-491588S)

$6.49

$

In Stock, Qty 20+

0

968

Cub Cadet BS-495357

Cover--Air Cleaner
(Superseded to BS-791082)

$20.99

$

In Stock, Qty 6

0

969

Cub Cadet BS-490073

Screw--Air Cleaner
(Superseded to BS-694515)

$5.99

$

In Stock, Qty 13

0

971

Cub Cadet BS-94018

Screw--Hex Hd.
(Superseded to BS-690859)

$3.99

$

In Stock, Qty 9

0
