645 DS (246-645D100) - Cub Cadet Shredder Engine (1996) Cylinder Assembly And Throttle Linkage Components Parts Diagram

Shredder Engine

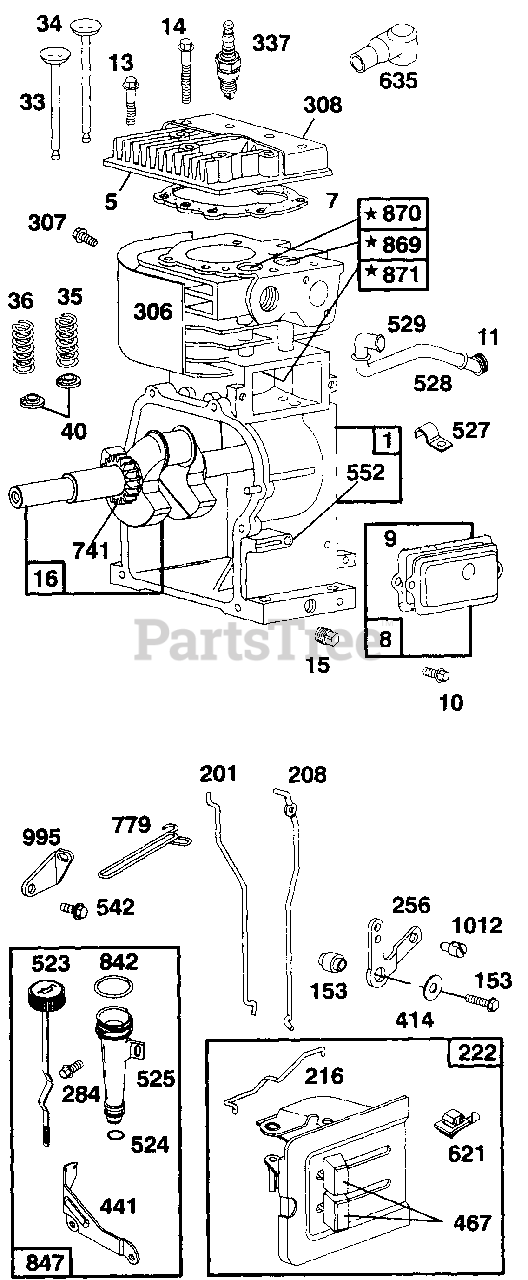

Cylinder Assembly And Throttle Linkage Components Parts Diagram

  • Title

Cub Cadet BS-496052

Short Block

$

$

Currently unavailable

1

Cub Cadet BS-395990

Cylinder Assembly

$

$

Not available

5

Cub Cadet BS-214040

Head - Cylinder

$

$

Not available

7

Cub Cadet BS-272157

Gasket - Cylinder Head
(Superseded to BS-272157S)

Note: Included in Gasket Set - Part No. BS-495603.

$6.49

$

In Stock, Qty 14

0

8

Cub Cadet BS-495774

Breather Ass'y.
(Superseded to BS-791779)

$15.99

$

In Stock, Qty 6

0

9

Cub Cadet BS-27549

Gasket - Valve Cover

Note: Included in Gasket Set - Part No. BS-495603.

$

$

Not available

10

Cub Cadet BS-94621

Screw - Breather Mtg.
(Superseded to BS-691666)

$3.99

$

In Stock, Qty 5

0

11

Cub Cadet BS-66578

Grommet - Breather
(Superseded to BS-692187)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-94221

Screw Cylinder Head (2-3/32" Long)
(Superseded to BS-691640)

$3.49

$

In Stock, only 1 left!

0

14

Cub Cadet BS-94679

Screw Cylinder Head (2-15/32" Long)

$

$

Not available

15

Cub Cadet BS-94387

Plug - Pipe
(Superseded to BS-691686)

$5.49

$

In Stock, only 1 left!

0

16

Cub Cadet BS-495845

Crankshaft

Note: Note: To Replace Crankshaft Gear Pin Order Part No. BS-230978.

$

$

Currently unavailable

33

Cub Cadet BS-211119

Valve - Exhaust
(Superseded to BS-211119S)

$

$

Not available

34

Cub Cadet BS-261044

Valve - Intake
(Superseded to BS-261044S)

$

$

Not available

35

Cub Cadet BS-260552

Spring - Intake Valve

$5.49

$

In Stock, Qty 9

0

36

Cub Cadet BS-26478

Spring - Exhaust Valve

$6.49

$

In Stock, Qty 5

0

40

Cub Cadet BS-93312

Retainer - Intake Valve and Exhaust Spring
(Superseded to BS-692194)

$5.99

$

In Stock, Qty 18

0

153

Cub Cadet BS-490589

Screw and Collar

$

$

Not available

201

Cub Cadet BS-262280

Link - Governor

$

$

Not available

208

Cub Cadet BS-262279

Rod - Speed Control
(Superseded to BS-691813)

$9.49

$

In Stock, Qty 5

0

216

Cub Cadet BS-262359

Link - Choke
(Superseded to BS-691824)

$9.99

$

In Stock, Qty 5

0

222

Cub Cadet BS-490649

Panel - Control

$67.99

$

Usually ships in 2-12 days

0

256

Cub Cadet BS-223813

Crank - Bell

$

$

Not available

284

Cub Cadet BS-94620

Screw - Hex Head
(Superseded to BS-691693)

$3.99

$

In Stock, only 3 left!

0

306

Cub Cadet BS-221511

Shield - Cylinder

$

$

Currently unavailable

307

Cub Cadet BS-94680

Screw - Cylinder Shield
(Superseded to BS-691660)

$3.99

$

In Stock, Qty 11

0

308

Cub Cadet BS-224738

Cover - Cylinder Head

$

$

Not available

337

Cub Cadet 759-3338

Plug - Spark

$3.49

$

In Stock, Qty 20+

0

414

Cub Cadet BS-220982

Washer

$

$

Not available

441

Cub Cadet BS-224240

Bracket - Oil Fill

$

$

Currently unavailable

467

Cub Cadet BS-280715

Knob - Control
(Superseded to BS-692295)

$9.49

$

In Stock, only 3 left!

0

523

Cub Cadet BS-494416

Dipstick and Cap Ass'y.

$

$

Not available

524

Cub Cadet BS-271485

Seal - Oil Filler Tube

Note: Included in Gasket Set - Part No. BS-495603.

$

$

Not available

525

Cub Cadet BS-280578

Tube - Oil Filler

$

$

Not available

527

Cub Cadet BS-223786

Clamp - Breather Tube
(Superseded to BS-691741)

$4.99

$

Usually ships in 2-12 days

0

528

Cub Cadet BS-231550

Tube - Breather

$

$

Not available

529

Cub Cadet BS-67838

Grommet - Breather Tube
(Superseded to BS-692189)

$4.49

$

In Stock, Qty 20+

0

542

Cub Cadet 710-0432

Screw

$

$

Not available

552

Cub Cadet BS-231079

Bushing - Gov. Crank

$

$

Not available

621

Cub Cadet BS-396847

Switch - Stop
(Superseded to BS-692310)

$5.99

$

In Stock, Qty 20+

0

635

Cub Cadet BS-66538

Elbow - Spark Plug
(Superseded to BS-66538S)

$3.99

$

In Stock, Qty 15

0

741

Cub Cadet BS-261696

Gear - Timing

$52.99

$

Usually ships in 2-12 days

0

779

Cub Cadet BS-262570

Link - Speed Control

$

$

Not available

842

Cub Cadet BS-270920

Seal - Oil Filler Tube
(Superseded to BS-691870)

Note: Included in Gasket Set - Part No. BS-495603.

$4.49

$

In Stock, only 2 left!

0

847

Cub Cadet BS-494417

Tube and Dipstick Ass'y.

$

$

Not available

869

Cub Cadet BS-211787

Seat - Int. Valve (Std.)

$

$

Not available

870

Cub Cadet BS-211172

Seat - Ex. Valve (Std.)

$

$

Not available

871

Cub Cadet BS-262001

Guide - Exhaust Valve

Note: Note: BS-63709 Guide - Intake Valve.

$13.99

$

Usually ships in 2-12 days

0

995

Cub Cadet BS-223887

Lever - Bracket Ass'y.

$

$

Not available

1012

Cub Cadet BS-490507

Retainer - Link

$

$

Not available

Cub Cadet BS-230978

Pin-Crankshaft

$

$

Not available

Cub Cadet BS-63709

Guide-Intake Valve

$14.99

$

In Stock, only 3 left!

0

Cub Cadet BS-495603

Gasket Set

Note: Includes items 7, 9, 524 & 842

$32.99

$

In Stock, Qty 20+

0
