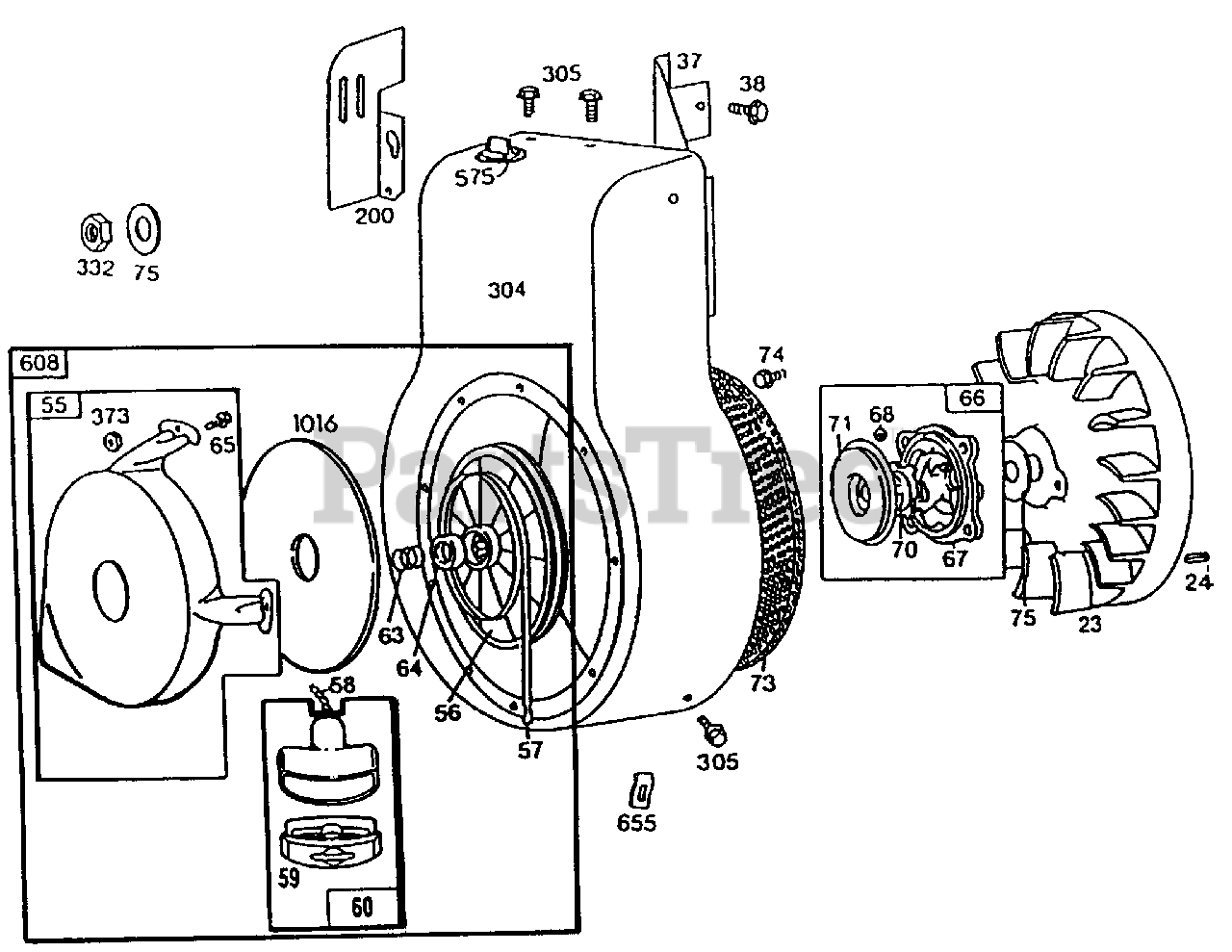

648 (240-648-100) - Cub Cadet Shredder Engine (1990) B&S 8 HP 190412-3152-01 Part 3 Parts Diagram

Shredder Engine

B&S 8 HP 190412-3152-01 Part 3 Parts Diagram

  • Title

23

Cub Cadet BS-298260

Flywheel-Magneto

$

$

Not available

24

Cub Cadet BS-222698

Key-Flywheel
(Superseded to BS-222698S)

$2.99

$

In Stock, Qty 20+

0

37

Cub Cadet BS-222475

Guard-Flywheel

$

$

Not available

38

Cub Cadet BS-93777

Screw-Sem

$

$

Currently unavailable

55

Cub Cadet BS-393576

Housing-Rewind Starter

$85.99

$

In Stock, only 2 left!

0

56

Cub Cadet BS-295871

Pulley-Rewind Starter

Note: (Note: Includes 63" rope.

$14.99

$

In Stock, only 4 left!

0

57

Cub Cadet BS-490179

Spring-Rewind Starter

$14.99

$

In Stock, Qty 15

0

58

Cub Cadet BS-66884

Rope-Rewind Starter-63" Long
(Superseded to BS-692188)

$8.49

$

In Stock, Qty 5

0

59

Cub Cadet BS-490653

Pin-Starter Grip

$5.49

$

In Stock, Qty 8

0

60

Cub Cadet BS-490652

Grip-Starter Rope

$5.49

$

In Stock, Qty 8

0

63

Cub Cadet BS-260414

Spring-Ratchet

$

$

Not available

64

Cub Cadet BS-230543

Adapter-Ratchet Spring
(Superseded to BS-691920)

$11.99

$

In Stock, only 1 left!

0

65

Cub Cadet BS-94128

Screw-Rewind Starter Housing Mounting Sem
(Superseded to BS-690837)

$3.49

$

In Stock, Qty 18

0

66

Cub Cadet BS-399671

Clutch Assembly-Rewind Starter

$34.99

$

In Stock, Qty 16

0

67

Cub Cadet BS-394897

Housing-Rewind Starter Clutch

$36.99

$

In Stock, only 2 left!

0

68

Cub Cadet BS-63770

Ball-Clutch

$

$

Not available

70

Cub Cadet BS-298799

Ratchet-Rewind Starter Clutch
(Superseded to BS-691945)

$17.99

$

In Stock, only 1 left!

0

71

Cub Cadet BS-394506

Washer-Clutch Retainer

$

$

Not available

73

Cub Cadet BS-221796

Screen-Rewind Starter

$

$

Not available

74

Cub Cadet BS-93042

Screw-Sem

$

$

Currently unavailable

75

Cub Cadet BS-220865

Washer-Spring

$

$

Currently unavailable

200

Cub Cadet BS-221760

Guide-Air

$

$

Not available

304

Cub Cadet BS-398495

Housing-Blower
(Superseded to BS-491596)

$

$

Not available

305

Cub Cadet BS-93158

Screw-Sem

$

$

Not available

332

UNKNOWN

$

$

Not available

373

Cub Cadet BS-92987

Nut-Hex
(Superseded to 712-0349)

$4.49

$

In Stock, Qty 5

0

575

Cub Cadet BS-396691

Switch-Assembly-Rotary
(Superseded to BS-692309)

$20.99

$

In Stock, Qty 6

0

608

Cub Cadet BS-390391

Starter Assembly-Rewind
(Superseded to BS-693900)

$131.99

$

Usually ships in 2-12 days

0

655

Cub Cadet BS-222598

Anchor-Spring

$

$

Not available

1016

Cub Cadet BS-490817

Spacer

$9.49

$

In Stock, only 2 left!

0
