65-36XS02 - Toro 36" Side-Discharge Mower Deck (1976) 13.000 WHEELS AND TIRES Parts Diagram

36" Side-Discharge Mower Deck

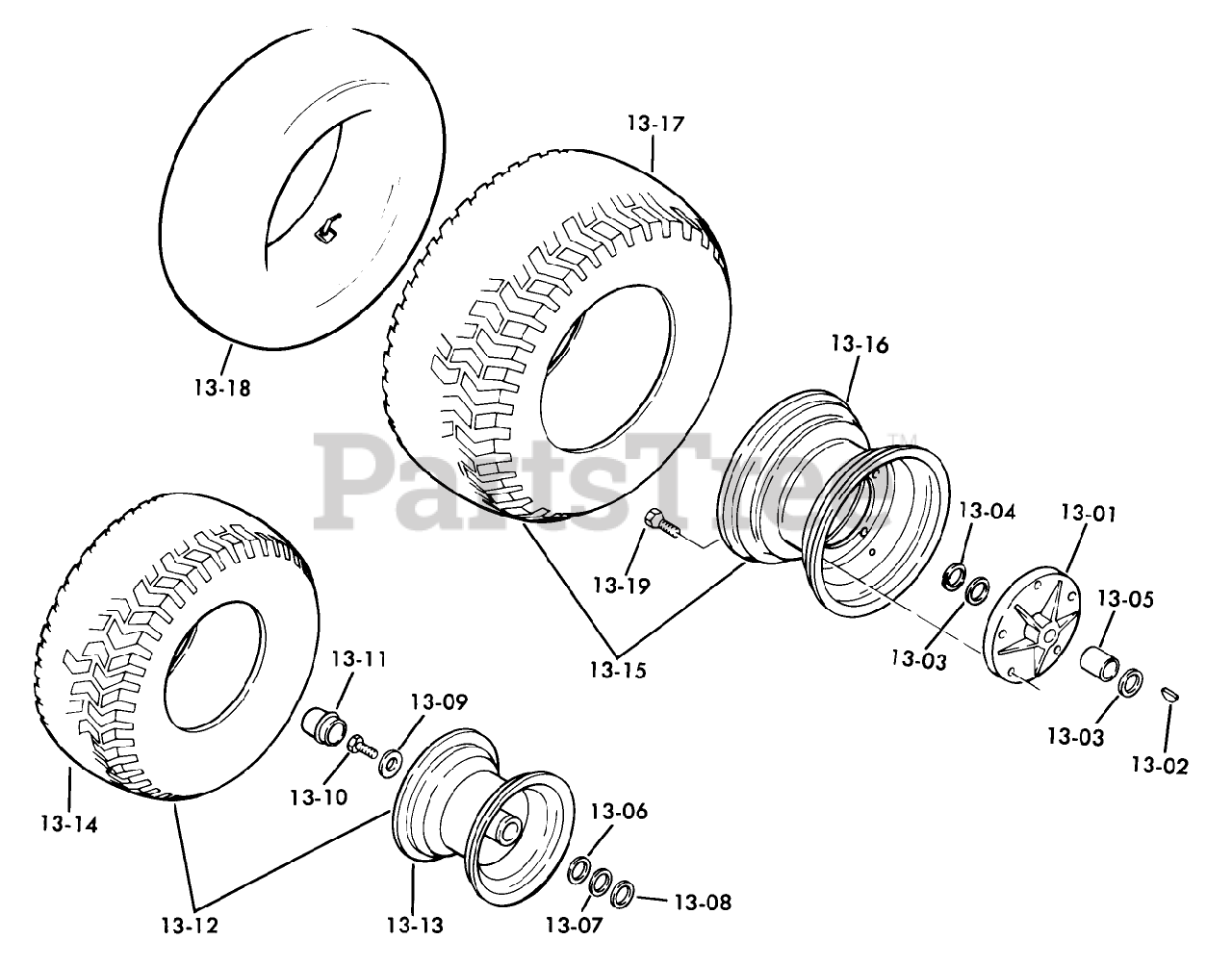

13.000 WHEELS AND TIRES Parts Diagram

  • Title

13-01

Toro 105447

Wheel Hub, Rear Axle

$

$

Not available

13-02

Toro 937017

WOODRUFF KEY

$

$

Not available

13-03

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

13-04

Toro 936125

RING-SNAP, EXTERNAL
(Superseded to 32120-72)

$2.49

$

In Stock, Qty 20+

0

13-05

Toro 103696

Spacer-R.H. Wheel

$

$

Not available

13-06

Toro 920015

Washer
(Superseded to 3256-28)

$3.49

$

In Stock, Qty 20+

0

13-07

Toro 5216

Pulley-Idler

$

$

Not available

13-08

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

13-09

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

13-10

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 7

0

13-11

Toro 103634

HUB CAP

$

$

Not available

13-12

Toro 105449

Assy-Wheel & Tire Front

$

$

Not available

13-12

Toro 8187

Front Wheel

$

$

Not available

13-13

Toro 105448

Front Wheel

$

$

Not available

13-13

Toro 8118

Rim
(Superseded to 109502)

$

$

Not available

13-14

Toro 104307

TIRE

$

$

Not available

13-14

Toro 8188

TIRE

$191.99

$

Usually ships in 3-6 days

0

13-15

Toro 105452

Rear Wheel and Tire Assembly (A-100)

$

$

Currently unavailable

13-15

Toro 100226

Wheel and Tire

$

$

Not available

13-16

Toro 100227

Wheel

$

$

Not available

13-17

Toro 105451

TIRE 18 X 9.50-8

$269.99

$

Usually ships in 3-6 days

0

13-17

Toro 8191

TIRE 18 X 8.50 X 8

$236.99

$

Usually ships in 3-6 days

0

13-18

Toro 105450

Tube-Inner
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

13-18

Toro 100078

Tube-Front Tire
(Superseded to 106396)

$41.99

$

Usually ships in 3-6 days

0

13-19

Toro 102600

LUG BOLT

$

$

Not available
