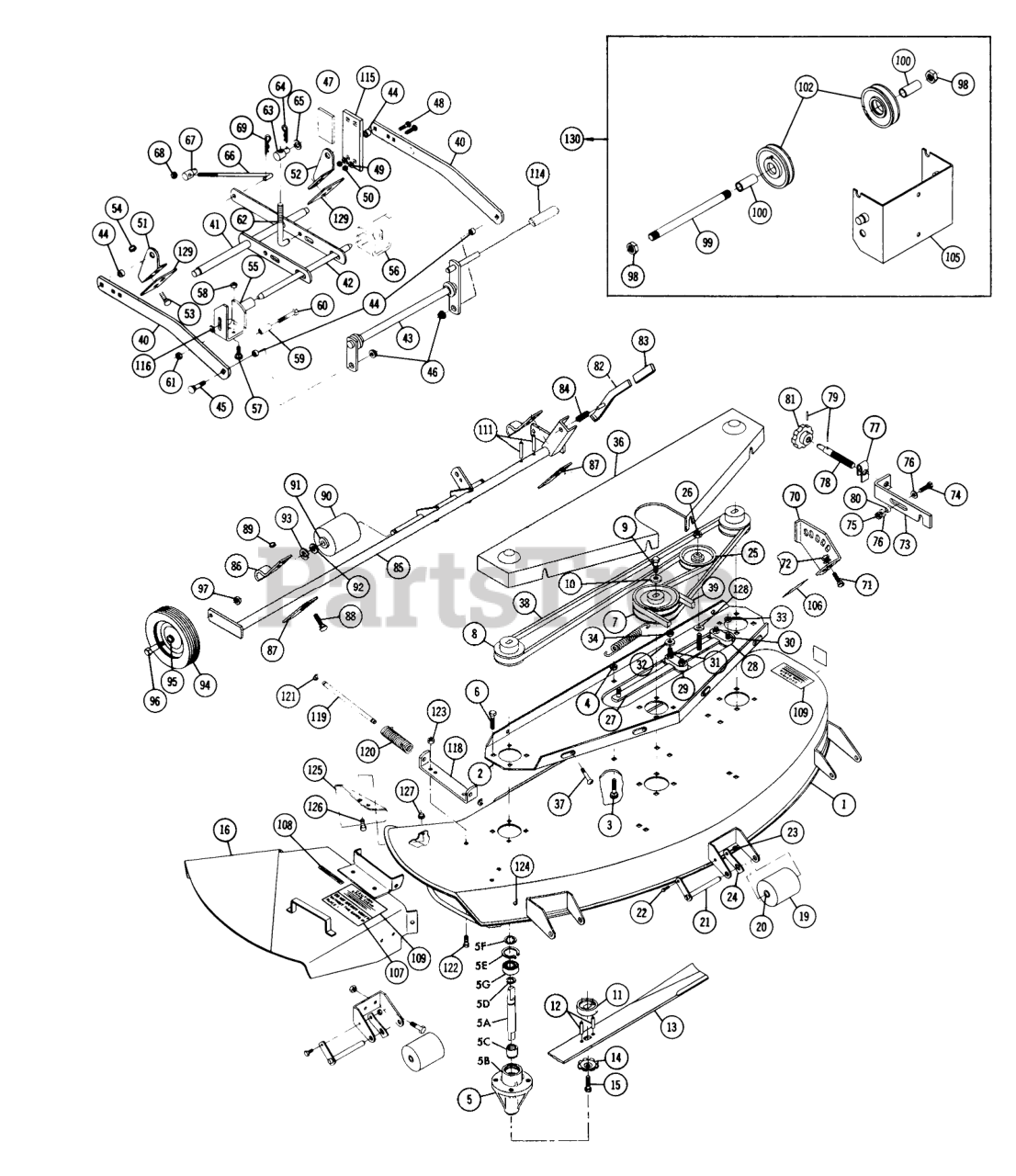

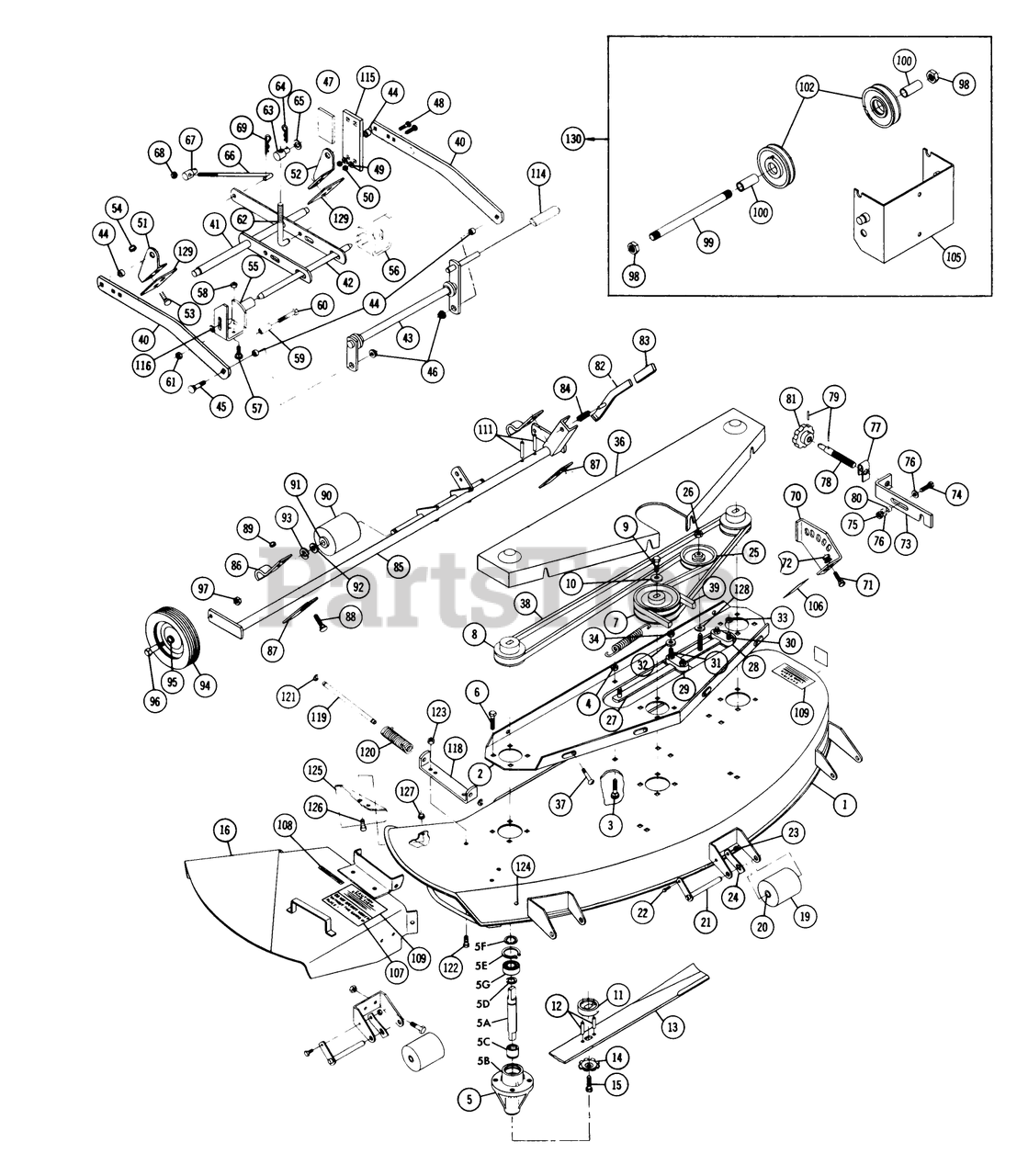

65-48XS01 - Toro 48" Side-Discharge Mower Deck (1976) PARTS LIST FOR 48" ROTARY MOWER FACTORY ORDER NUMBER 65-48XS01 Parts Diagram

48" Side-Discharge Mower Deck

PARTS LIST FOR 48" ROTARY MOWER FACTORY ORDER NUMBER 65-48XS01 Parts Diagram

  • Title

1

Toro 104773

Deck
(Superseded to 107991)

$

$

Not available

2

Toro 6759

Support

$

$

Not available

3

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

4

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

5

Toro 104891

Spindle Assy.

$

$

Not available

5A

Toro 104890

SHAFT SPINDLE

$137.99

$

Usually ships in 3-6 days

0

5B

Toro 102775

HOUSING SPINDLE

$

$

Not available

5C

Toro 100289

NEEDLE BEARING

$58.99

$

Usually ships in 3-6 days

0

5D

Toro 104822

Snap Ring
(Superseded to 32120-93)

$2.99

$

In Stock, Qty 20+

0

5E

Toro 936029

INT SNAP RING

$2.99

$

Usually ships in 3-6 days

0

5F

Toro 1536

BUSHING

$

$

Not available

5G

Toro 101411

BEARING

$112.99

$

Usually ships in 3-6 days

0

6

Toro 908032

Bolt
(Superseded to 323-4)

$3.99

$

In Stock, Qty 19

0

7

Toro 6756

Pulley-Center
(Superseded to 106848)

$

$

Not available

8

Toro 6757

Pulley-Right & Left
(Superseded to 106849)

$269.99

$

Usually ships in 3-6 days

0

9

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 7

0

10

Toro 2844

WASHER

$2.99

$

In Stock, Qty 20+

0

11

Toro 104374

Cup-Spindle
(Superseded to 102784)

$

$

Not available

12

Toro 933210

SPIROL ROLL PIN

$2.99

$

Usually ships in 3-6 days

0

13

Toro 100202

BLADE KIT 48 LF

$

$

Not available

14

Toro 1336

WASHER

$

$

Not available

15

Toro 908033

Bolt
(Superseded to 110242)

$2.49

$

In Stock, Qty 7

0

16

Toro 104782

Chute Extension

$

$

Not available

19

Toro 5240

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 9

0

20

Toro 100284

BUSHING

$11.99

$

Usually ships in 3-6 days

0

21

Toro 102770

Roller Shaft
(Superseded to 110847)

$28.99

$

In Stock, only 1 left!

0

22

Toro 908002

H H C S
(Superseded to 321-3)

$1.49

$

In Stock, Qty 10

0

23

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

24

Toro 102773

SPRING ROLLER STOP

$

$

Not available

25

Toro 6769

Pulley-Idler
(Superseded to 93-1622)

$42.99

$

In Stock, only 2 left!

0

26

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

27

Toro 6715

ASSY BAR IDLER SUPPO

$

$

Not available

28

Toro 6720

Side Block
(Superseded to 742659)

$

$

Not available

29

Toro 6748

SLIDE

$

$

Not available

30

Toro 900039

Bolt-Carriage
(Superseded to 3230-3)

$1.49

$

In Stock, Qty 20+

0

31

Toro 900040

Bolt-Carriage
(Superseded to 3230-4)

$3.99

$

In Stock, Qty 9

0

32

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

33

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

34

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

35

Toro 6651

SPRING R

$21.99

$

In Stock, Qty 5

0

36

Toro 6770

Cover
(Superseded to 106081)

$

$

Not available

37

Toro 960150

Screw
(Superseded to 3234-26)

$2.99

$

In Stock, Qty 16

0

38

Toro 1594

V-BELT

$39.99

$

In Stock, Qty 10

0

39

Toro 102868

V BELT

$78.99

$

Usually ships in 3-6 days

0

40

Toro 101777

Bar Draft
(Superseded to 101777-01)

$99.99

$

Usually ships in 3-6 days

0

41

Toro 104769

Leveler Ass-y.
(Superseded to 92-0981-03)

$166.99

$

Usually ships in 3-6 days

0

42

Toro 103360

SHAFT-FRONT R

$

$

Not available

43

Toro 100980

Hitch Assy.

$

$

Not available

44

Toro 102704

SPACER

$2.49

$

In Stock, Qty 8

0

45

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

46

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

47

Toro 102322

BUMPER

$7.99

$

In Stock, only 2 left!

0

48

Toro 900038

Bolt-Carriage
(Superseded to 3230-2)

$1.49

$

In Stock, Qty 12

0

49

Toro 920038

Collar
(Superseded to 3-2563)

$0.99

$

In Stock, Qty 20+

0

50

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

51

Toro 101776

Bracket-R.H.
(Superseded to 101776-01)

$39.99

$

Usually ships in 3-6 days

0

52

Toro 101775

Bracket-L.H.
(Superseded to 101775-01)

$39.99

$

Usually ships in 3-6 days

0

53

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

54

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

55

Toro 103356

Bracket-RH Front
(Superseded to 107928)

$

$

Not available

56

Toro 103357

LH FT DECK BRKT A R

$

$

Not available

57

Toro 900062

Bolt-Carriage
(Superseded to 323-11)

$2.49

$

In Stock, Qty 20+

0

58

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

59

Toro 6595

SPACER-BEARING

$

$

Not available

60

Toro 908049

7/16-14X13/4 HEX BLT

$

$

Not available

61

Toro 915664

Nut
(Superseded to 3296-48)

$0.99

$

In Stock, Qty 20+

0

62

Toro 102029

LIFT ROD

$47.99

$

Usually ships in 3-6 days

0

63

Toro 8870

ROD-TRUNNION LIFT

$

$

Not available

64

Toro 933504

Hairpin
(Superseded to 9335044)

$1.49

$

In Stock, Qty 14

0

65

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

66

Toro 102035

ROD-LEVELER

$53.99

$

Usually ships in 3-6 days

0

67

Toro 6739

TRUNNION-LIFT

$23.99

$

In Stock, Qty 7

0

68

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

69

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

70

Toro 102655

LH QUADRANT R

$

$

Not available

71

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

72

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

73

Toro 100996

Hitch Adjustment Link

$

$

Not available

74

Toro 908035

Bolt
(Superseded to 323-7)

$2.99

$

In Stock, Qty 20+

0

75

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

76

Toro 920039

Washer
(Superseded to 3256-4)

$1.99

$

In Stock, Qty 20+

0

77

Toro 102861

Detent Spring

$

$

Not available

78

Toro 100983

HITCH ADJ SCREW

$

$

Not available

79

Toro 933156

PIN-ROLL

$1.49

$

In Stock, Qty 10

0

80

Toro 100283

SPACER

$17.99

$

Usually ships in 3-6 days

0

81

Toro 101851

KNOB-ADJUSTMENT

$23.99

$

In Stock, Qty 9

0

82

Toro 102431

Lever
(Superseded to 102431-01)

$

$

Not available

83

Toro 102597

GRIP

$1.99

$

In Stock, only 1 left!

0

84

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, Qty 9

0

85

Toro 104767

Gage Wheel Support
(Superseded to 108801)

$

$

Not available

86

Toro 102615

Machine Bolt
(Superseded to 110837-03)

$34.99

$

In Stock, Qty 5

0

87

Toro 102618

Bar
(Superseded to 110838-03)

$26.99

$

Usually ships in 3-6 days

0

88

Toro 900064

Bolt
(Superseded to 3231-25)

$1.99

$

In Stock, Qty 16

0

89

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

90

Toro 5240

Roller
(Superseded to 94-1599)

$12.99

$

In Stock, Qty 9

0

91

Toro 100284

BUSHING

$11.99

$

Usually ships in 3-6 days

0

92

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

93

Toro 5701

E Ring
(Superseded to 32120-47)

$1.49

$

In Stock, Qty 15

0

Toro 920211

WASHER

$

$

Not available

94

Toro 103665

Wheel
(Superseded to 110506)

$37.99

$

In Stock, Qty 15

0

96

Toro 5188

BOLT-SHOULDER

$5.99

$

In Stock, Qty 7

0

97

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

98

Toro 915640

Nut
(Superseded to 3296-15)

$2.99

$

In Stock, Qty 9

0

99

Toro 102264

SHAFT FRONT PULLEY

$

$

Not available

100

Toro 102263

SPACER FRONT PULL R

$

$

Not available

101

Toro 104192

SPACER-FRONT PULLEY

$

$

Not available

102

Toro 104974

Pulley-V
(Superseded to 92-7103)

$53.99

$

In Stock, only 4 left!

0

105

Toro 102260

Shield Assy.

$

$

Not available

106

Toro 105205

Decal-Height Adj.

$

$

Not available

107

Toro 104356

Decal-Caution
(Superseded to 66-1340)

$10.99

$

In Stock, only 3 left!

0

108

Toro 104903

Decal-Edge of Cut

$

$

Not available

109

Toro 105002

Caution Decal
(Superseded to 93-1122)

$8.99

$

In Stock, Qty 16

0

110

Toro 102832

DECAL-WHEEL HORSE

$

$

Not available

111

Toro 933190

PIN-SPIROL

$

$

Not available

114

Toro 9038

GRIP

$5.99

$

In Stock, Qty 5

0

115

Toro 103361

PLATE-BUMPER R

$

$

Not available

116

Toro 920010

WASHER

$0.99

$

Usually ships in 3-6 days

0

118

Toro 104774

Deck Bracket

$

$

Not available

119

Toro 104775

Rod

$

$

Not available

120

Toro 104777

Spring

$

$

Not available

121

Toro MW4564

E-Ring, 3/8 Dia.
(Superseded to 105797)

$0.99

$

In Stock, Qty 7

0

122

Toro 908017

Bolt
(Superseded to 322-3)

$0.99

$

In Stock, Qty 20+

0

123

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

124

Toro 104870

Bumper Plug

$

$

Not available

125

Toro 104778

Chute Guard

$

$

Not available

126

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 20+

0

127

Toro 915112

Nut
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

128

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

129

Toro 104966

PLATE

$

$

Not available

130

Toro 101652

S.A. Front Idler-Complete

$

$

Not available
