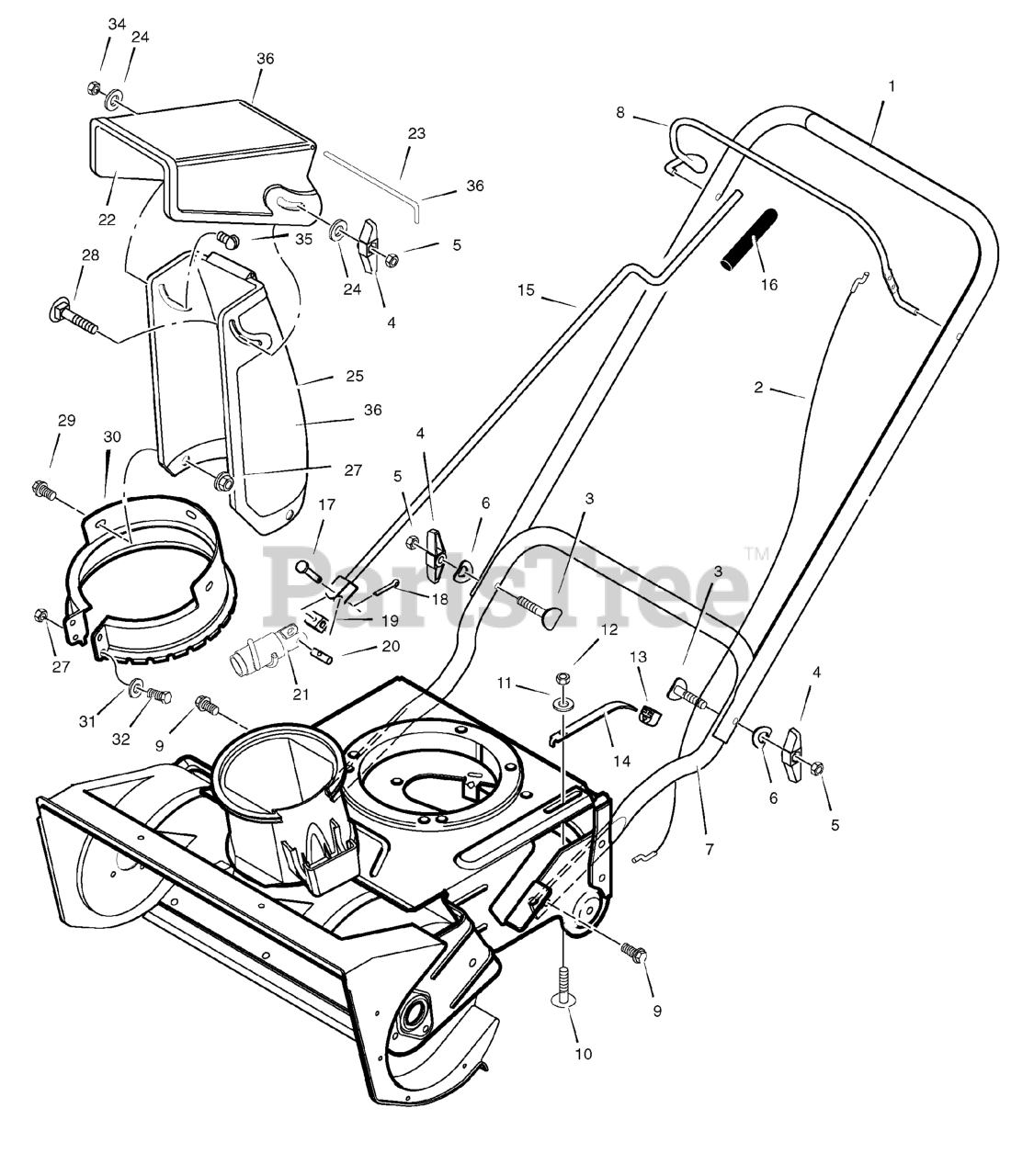

650/21 (1695537) - Murray 21" Snow Thrower (2009) Handle Assembly Parts Diagram

21" Snow Thrower

Handle Assembly Parts Diagram

  • Title

1

Murray 1742073HYP

HANDLE, Upper

$

$

Not available

2

Murray 762259MA

CABLE, Auger Drive

$12.99

$

Usually ships in 2-12 days

0

3

Murray 337584MA

BOLT, 5/16-18 X 2.00

$4.99

$

Usually ships in 2-12 days

0

4

Murray 1501260MA

KNOB

$7.99

$

In Stock, only 3 left!

0

5

Murray 71037MA

NUT, Hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

6

Murray 311936MA

WASHER

$7.49

$

In Stock, only 2 left!

0

7

Murray 1742071HYP

HANDLE, Lower

$102.99

$

In Stock, only 1 left!

0

8

Murray 1742072HYP

LEVER, Auger Drive

$13.99

$

Usually ships in 2-12 days

0

9

Murray 25X021MA

CAPSCREW, Hex Washer Head, 5/16-18 x 3/4
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

10

Murray 340715MA

BOLT, 1/4-20 x 5/8

$5.49

$

Usually ships in 2-12 days

0

11

Murray 712123MA

WASHER

$3.99

$

Usually ships in 2-12 days

0

12

Murray 780029MA

NUT, Hex, Nylock, 1/4-20

$4.99

$

Usually ships in 2-12 days

0

13

Murray 762281MA

BUSHING, Tensioner

$8.99

$

In Stock, Qty 7

0

14

Murray 762282MA

BRACKET, Cable Tensioner

$8.49

$

In Stock, only 4 left!

0

15

Murray 762362MA

ROD, Crank

$68.99

$

Usually ships in 2-12 days

0

16

Murray 762289MA

GRIP, Crank Rod

$4.49

$

Usually ships in 2-12 days

0

17

Murray 578309MA

PIN, Clevis

$5.49

$

Usually ships in 2-12 days

0

18

Murray 579493MA

PIN, Cotter

$4.49

$

In Stock, only 4 left!

0

19

Murray 578063MA

BLOCK, Universal Pivot

$5.49

$

In Stock, Qty 10

0

20

Murray 578060MA

PIN

$7.49

$

In Stock, Qty 5

0

21

Murray 585196MA

GEAR, Worm

$11.99

$

In Stock, Qty 7

0

22

Murray 325847MA

DEFLECTOR

$51.99

$

In Stock, Qty 20+

0

23

Murray 308931MA

PIN, Pivot

$12.99

$

Usually ships in 2-12 days

0

24

Murray 71071MA

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

25

Murray 334234MA

CHUTE, Discharge

$43.99

$

Usually ships in 2-12 days

0

27

Murray 15X143MA

NUT, Hex Flange, Centerlock, 1/4-20

$4.99

$

In Stock, only 4 left!

0

28

Murray 302843MA

BOLT, 5/16-18 x 1-1/4

$

$

Not available

29

Murray 313686MA

CAPSCREW, Hex Head, 1/4-20 x 1/2

$3.99

$

In Stock, only 2 left!

0

30

Murray 1501846MA

RING, Chute

$38.99

$

In Stock, only 1 left!

0

31

Murray 71067MA

WASHER

$4.49

$

In Stock, only 1 left!

0

32

Murray 302628MA

CAPSCREW, Hex Head, 1/4-20 x 3/4

$4.49

$

In Stock, Qty 6

0

34

Murray 71391MA

NUT, HEX, Centerlock, 5/16-18

$4.49

$

In Stock, only 1 left!

0

35

Murray 578088MA

CAPSCREW, 5/16-18 x 3/4

$4.99

$

In Stock, only 1 left!

0

36

Murray 762222MA

COMPLETE DISCHARGE CHUTE ASSEMBLY

Note: (Incl. Ref. 22, 23 & 25)

$51.99

$

In Stock, Qty 20+

0
