650 (242-650-100) - Cub Cadet Shredder (1982) Main Assembly Parts Diagram

Shredder

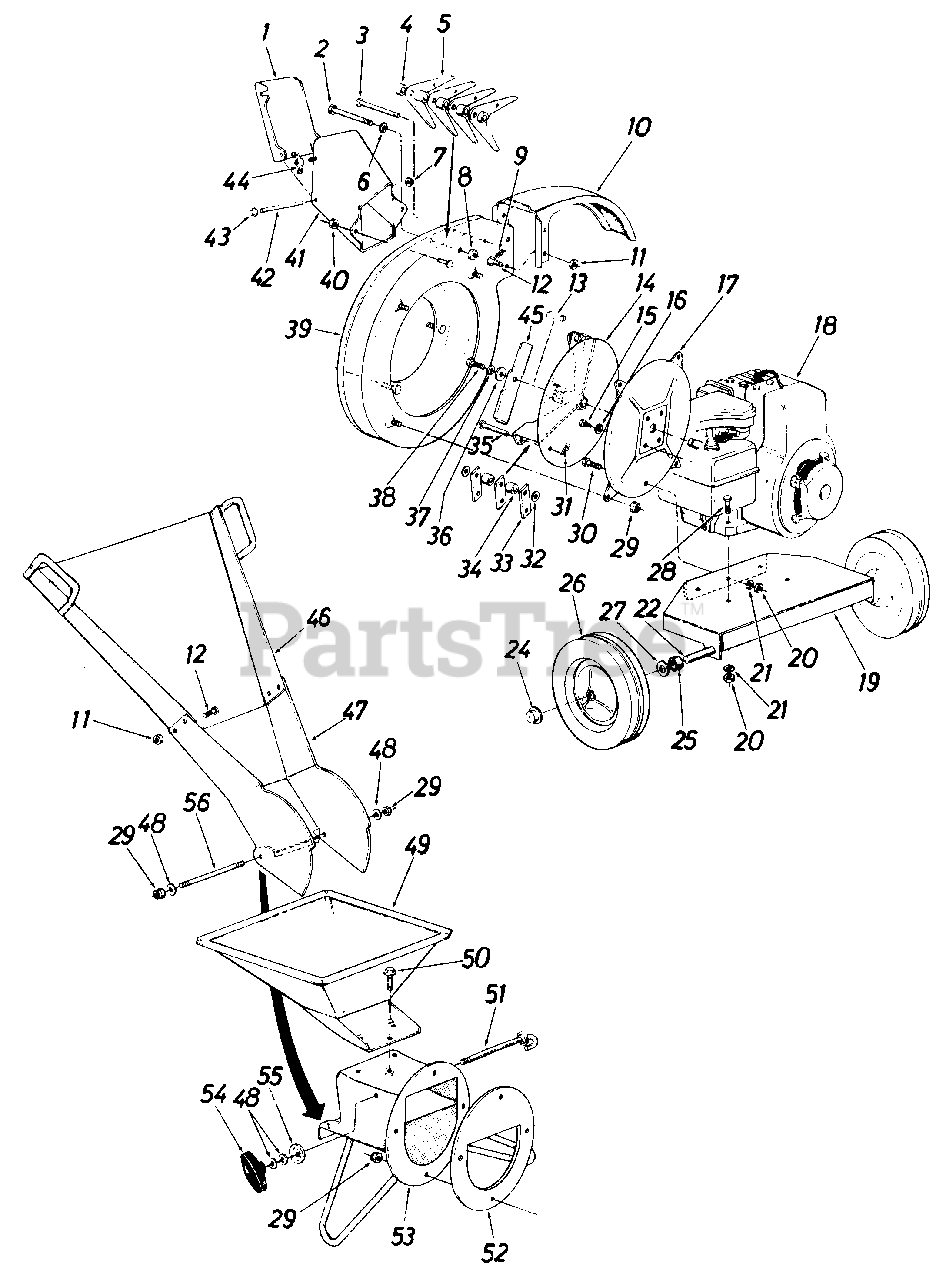

Main Assembly Parts Diagram

  • Title

1

Cub Cadet 11476

Door-Chip-It

$

$

Currently unavailable

2

Cub Cadet 710-0465

Hex Bolt 1/2-20 x 4.50" Lg.

$10.99

$

In Stock, only 1 left!

0

3

Cub Cadet 711-0580

Clevis Pin

$

$

Not available

4

Cub Cadet 711-0579

Flail Spacer 7/32" Lg.

$

$

Not available

5

Cub Cadet 11455

Cutting Finger

$

$

Not available

6

Cub Cadet 736-0921

L.-Wash. 1/2" Scr.

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 726-0111

Palnut 3/16" Dia.

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-0922

Hex Jam Nut 1/2-20 Thd.
(Superseded to 712-3029)

$6.49

$

In Stock, Qty 8

0

9

Cub Cadet 714-0507

Cotter Pin 3/32" Dia. x 3/4" Lg.

$4.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 11465

Chute Deflector

$

$

Not available

11

Cub Cadet 712-0107

L.-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

12

Cub Cadet 710-0289

Hex Bolt 1/4-20 x .50" Lg.
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 714-0114

Sq. Key 1/4" x 2.00" Lg.
(Superseded to 914-0114)

$3.99

$

In Stock, only 1 left!

0

14

Cub Cadet 13430

Impeller Assembly

$

$

Not available

15

Cub Cadet 710-0157

Hex Bolt 5/16-24 x 3/4" Lg.

$3.99

$

In Stock, Qty 17

0

16

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 14573

Hopper to Engine Mtg. Plate

Note: Color Code - 499; Code N

$

$

Currently unavailable

18

Engine

$

$

Not available

19

Cub Cadet 11464

Engine Mounting Plate

$

$

Not available

20

Cub Cadet 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

21

Cub Cadet 736-0119

L-Wash. 5/16" Scr.
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 11475

Shaft 1/2" x 18 7/8" Lg.

$

$

Currently unavailable

24

Cub Cadet 726-0221

Push Cap

$5.99

$

In Stock, only 2 left!

0

25

Cub Cadet 711-0494

Spacer

$

$

Not available

26

Cub Cadet 734-0879

Wheel Ass'y. - Comp.

$

$

Not available

27

Cub Cadet 736-0100

Fl-Wash. .50" I.D.

$6.49

$

In Stock, Qty 11

0

28

Cub Cadet 710-0624

Hex Bolt 5/16-24 x 1.50" Lg.

$5.49

$

Usually ships in 3-6 days

0

29

Cub Cadet 712-0429

Elastic Stopnut 5/16-18 Thd.

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 714-0144

Cotter Pin 1/8" Dia. x 1.00" Lg. (Special)

$

$

Not available

32

Cub Cadet 736-0192

Fl-Wash. .531" I.D. x .937 O.D. x .09

$3.99

$

In Stock, only 2 left!

0

33

Cub Cadet 11459

Flail
(Superseded to 91459B)

$20.99

$

In Stock, Qty 20+

0

34

Cub Cadet 711-0564

Flail Spacer 23/32" Lg.
(Superseded to 911-0564)

$14.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 711-0578

Clevis Pin .50" Dia. x 3.0" Lg.

$10.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 736-0247

Fl.-Wash. .406" I.D. x 1.25" O.D. Hdn.

$8.99

$

In Stock, Qty 20+

0

37

Cub Cadet 736-0217

L.-Wash. 3/8" Scr. H.D.

$3.99

$

In Stock, Qty 13

0

38

Cub Cadet 710-0151

Hex Bolt 3/8-24 x 2.00" Lg. H.T.

$6.99

$

In Stock, Qty 5

0

39

Cub Cadet 14575

Flail Housing Ass'y. - Comp.

Note: Code N

Variations

Cub Cadet 14575-0637

HOUSING AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

Cub Cadet 712-0107

Hex Cent. L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.49

$

In Stock, only 1 left!

0

41

Cub Cadet 11477

Upper Guide Extension Ass'y.

Note: Color Code - 499

$

$

Currently unavailable

42

Cub Cadet 11478

Hinge Pin

$

$

Currently unavailable

43

Cub Cadet 726-0111

Palnut 3/16" Dia.

$6.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 712-0109

Wing Nut Elastic 1/4-20 Thd.

$

$

Not available

45

Cub Cadet 13431

Blade
(Superseded to 13431-0637)

Variations

Cub Cadet 13431-0637

Shredder Blade, Black - POWDER BLACK (0637)

$

$

Not available

$

$

46

Cub Cadet 11460

Guide Extension Assembly

Note: Color Code - 499

$

$

Not available

47

Cub Cadet 11472

Guide Extension

Note: Color Code - 499

$

$

Currently unavailable

48

Cub Cadet 736-0264

Fl-Wash. 5/16" Scr.

$6.49

$

In Stock, only 1 left!

0

49

Cub Cadet 11481

Hopper Assembly

Note: Color Code - 499

$

$

Not available

50

Cub Cadet 710-0601

Hex Wash. Hd. Self-Tap Scr. 5/16-18 x .50" Lg.
(Superseded to 710-1260A)

$3.49

$

In Stock, Qty 20+

0

51

Cub Cadet 11479

Clamp Rod Assembly

$

$

Currently unavailable

52

Cub Cadet 11454

Back-up Plate

$

$

Not available

53

Cub Cadet 11467

Inlet Guide Assembly

$

$

Currently unavailable

54

Cub Cadet 09966

Knob Ass'y.
(Superseded to 720-04072A)

$6.49

$

In Stock, Qty 20+

0

55

Cub Cadet 11480

Stop Washer

$

$

Not available

56

Cub Cadet 711-0566

Chute Pivot Rod

$

$

Currently unavailable

Cub Cadet 764-0126

Bag
(Superseded to 964-04022)

Note: (Not Shown)

$71.99

$

In Stock, only 4 left!

0
