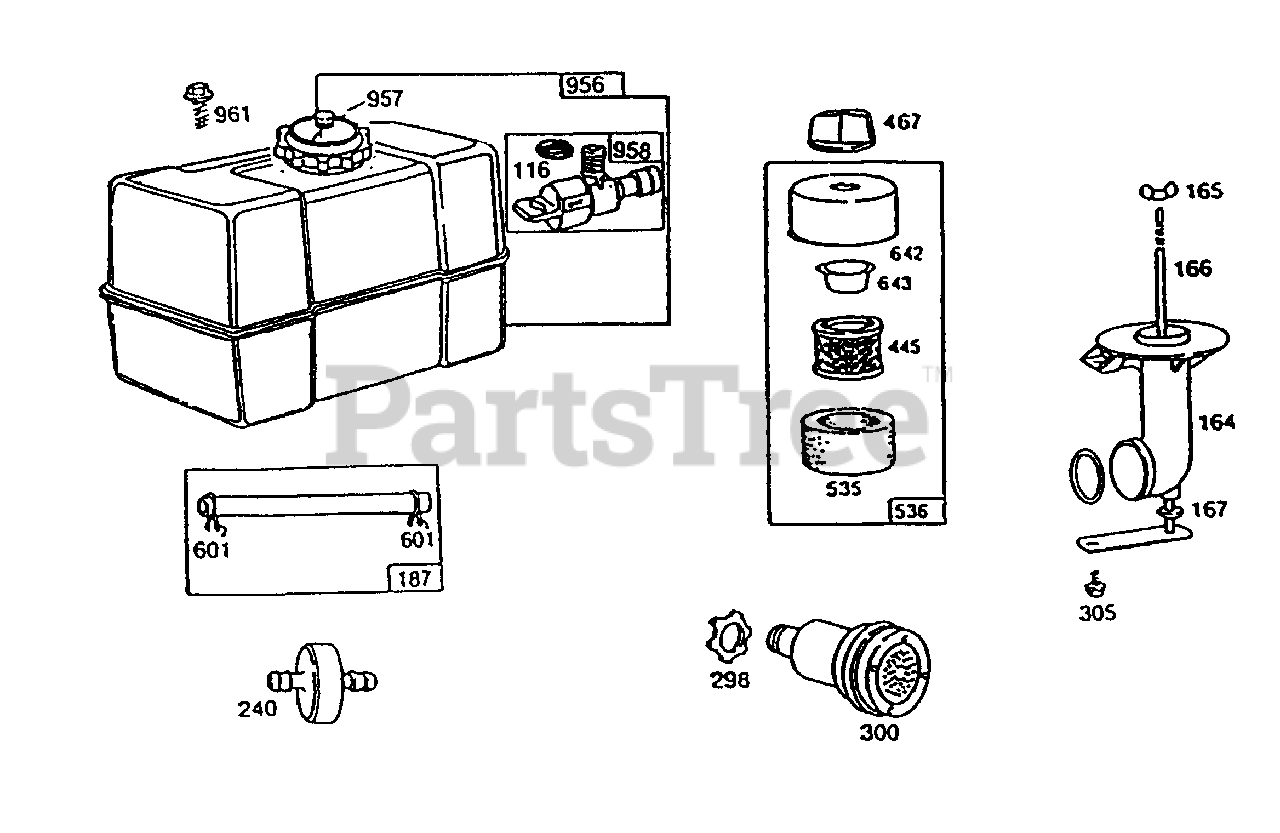

650 C (244-650C100) - Cub Cadet Shredder Engine (1995) Fuel Tank And Accessories Parts Diagram

Shredder Engine

Fuel Tank And Accessories Parts Diagram

  • Title

116

Cub Cadet BS-280203

0-Ring -- Fuel Valve

$

$

Not available

164

Cub Cadet BS-398592

Pipe Assembly -- Air Cleaner

Note: Uses: BS-271265 0-Ring

$45.99

$

In Stock, only 2 left!

0

165

Cub Cadet BS-94289

Nut -- Wing

$

$

Not available

166

Cub Cadet BS-392105

Stud -- Air Cleaner

$25.99

$

In Stock, only 2 left!

0

167

Cub Cadet BS-65978

Seal -- Air Cleaner Stud

$5.99

$

Usually ships in 2-12 days

0

187

Cub Cadet BS-296004

Pipe -- Fuel (23" Long, Cut to Suit)
(Superseded to BS-791745)

$10.99

$

In Stock, Qty 7

0

?188

Cub Cadet BS-93535

Screw -- Sem

$

$

Not available

240

Cub Cadet BS-298090

Filter -- Fuel
(Superseded to BS-298090S)

$5.49

$

In Stock, Qty 20+

0

298

Cub Cadet BS-261409

Lock Nut -- Muffler

$

$

Not available

300

Cub Cadet BS-393010

Muffler -- Exhaust
(Superseded to BS-393010S)

$22.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-94608

Screw -- Sem
(Superseded to BS-692198)

$5.99

$

In Stock, only 3 left!

0

445

Cub Cadet BS-393957

Cartridge -- Air Cleaner
(Superseded to BS-393957S)

$19.99

$

In Stock, Qty 12

0

467

Cub Cadet BS-493903

Knob -- Air Cleaner
(Superseded to BS-691668)

$5.49

$

In Stock, only 4 left!

0

535

Cub Cadet BS-271794

Element -- Air Cleaner
(Superseded to BS-271794S)

$4.99

$

In Stock, Qty 20+

0

536

Cub Cadet BS-391063

Cleaner Ass'y.-- Air

$94.99

$

Usually ships in 2-12 days

0

601

Cub Cadet BS-93053

Clamp -- Fuel Pipe
(Superseded to BS-791850)

$3.49

$

In Stock, Qty 20+

0

642

Cub Cadet BS-224844

Cover -- Air Cleaner

$

$

Not available

643

Cub Cadet BS-222272

Cup -- Air Cleaner
(Superseded to BS-691730)

$10.99

$

In Stock, only 1 left!

0

956

Cub Cadet BS-493337

Tank Assembly -- Fuel
(Superseded to BS-691993)

$166.99

$

In Stock, Qty 13

0

957

Cub Cadet BS-493988

Cap -- Fuel Tank
(Superseded to BS-795027)

$10.99

$

In Stock, only 2 left!

0

958

Cub Cadet BS-399517

Valve Ass'y.-- Fuel Shut-Off
(Superseded to BS-698182)

$

$

Not available

961

Cub Cadet BS-94095

Screw -- Tank Mounting

$

$

Not available
