650 C (246-650C100) - Cub Cadet Shredder Engine (1996) Engine Internal, Governor Components Parts Diagram

Shredder Engine

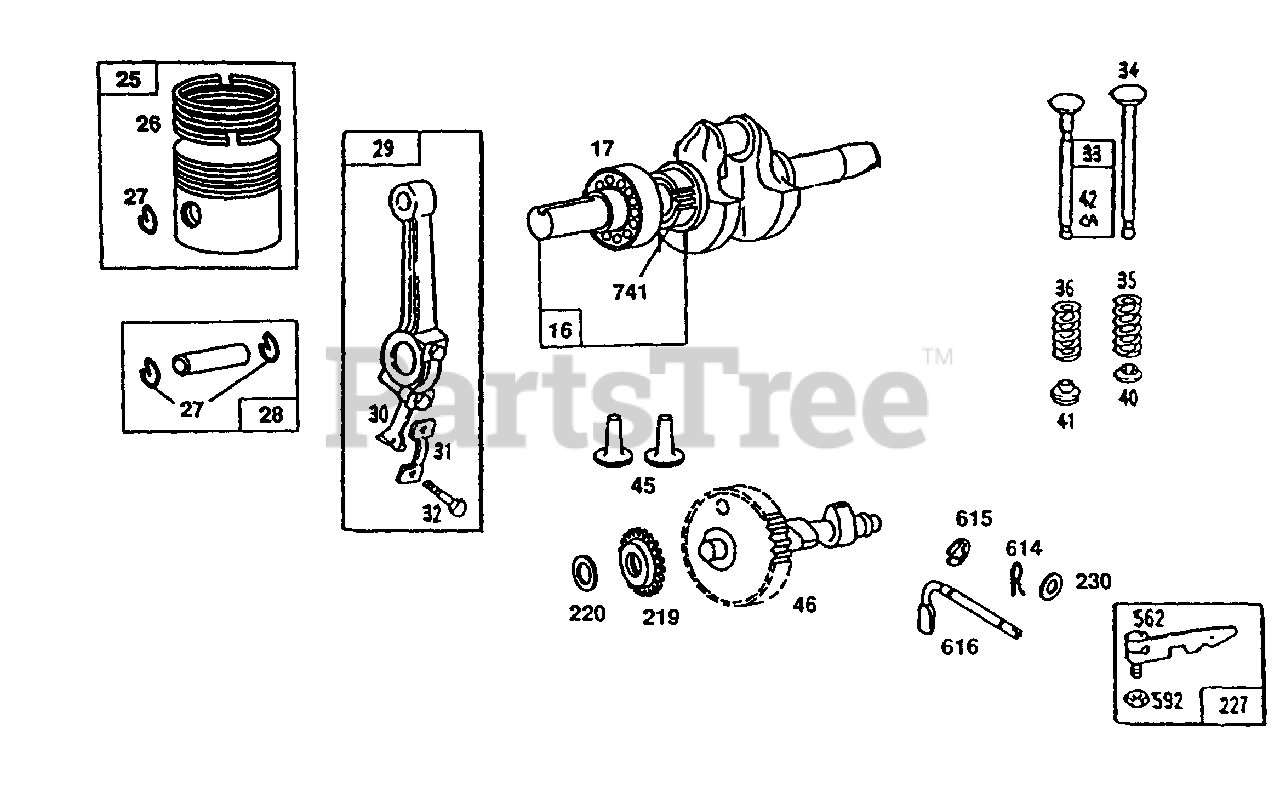

Engine Internal, Governor Components Parts Diagram

  • Title

16

Cub Cadet BS-495866

Crankshaft

Note: Note: Order BS-94388 Key For Timing Gear Retaining Device.

$

$

Currently unavailable

17

Cub Cadet BS-29530

Bearing - Ball
(Superseded to BS-691069)

$35.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-391673

Piston Assy. (Std.)
(Superseded to BS-499907)

$78.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391674

Piston Assembly (.010" O.S.)

$

$

Not available

Cub Cadet BS-391675

Piston Assembly (.020" O.S.)
(Superseded to BS-499909)

$149.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391676

Piston Assembly (.030" O.S.)

Note: Note: For Chrome Ring Set (Standard Size) Order No. BS-299743.

$

$

Currently unavailable

26

Cub Cadet BS-391669

Ring Set - Piston (Std.)
(Superseded to BS-499921)

$47.99

$

In Stock, only 1 left!

0

Cub Cadet BS-391670

Ring Set - Piston (.010" O.S.)

$18.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-391671

Ring Set - Piston (.020" O.S.)

$

$

Not available

Cub Cadet BS-391672

Ring Set - Piston (.030" O.S.)

$

$

Currently unavailable

27

Cub Cadet BS-68546

Lock - Piston Pin

$

$

Not available

28

Cub Cadet BS-295840

Pin Ass'y.- Piston (Standard)

$

$

Not available

Cub Cadet BS-295841

Pin Ass'y.- Piston (.005" O.S.)

$6.99

$

Usually ships in 2-12 days

0

29

Cub Cadet BS-390401

Rod Assembly - Connecting

Note: Note: For Connecting Rod With .020" Undersize Crankpin Bore- Order Part No. BS-390773.

$39.99

$

Usually ships in 2-12 days

0

30

Cub Cadet BS-222113

Dipper - Conn. Rod

$

$

Not available

31

Cub Cadet BS-222114

Lock - Conn. Rod Screw

$3.49

$

Usually ships in 2-12 days

0

32

Cub Cadet BS-92659

Screw - Conn. Rod

$

$

Currently unavailable

33

Cub Cadet BS-390419

Valve - Exhaust

$

$

Not available

34

Cub Cadet BS-261055

Valve - Intake
(Superseded to BS-261055S)

$32.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-65906

Spring - Intake Valve

$

$

Not available

36

Cub Cadet BS-26828

Spring - Exhaust Valve

$

$

Not available

40

Cub Cadet BS-221596

Retainer - Intake Valve
(Superseded to BS-690656)

$

$

Not available

41

Cub Cadet BS-292260

Rotocoil - Ex. Valve
(Superseded to BS-691939)

$27.99

$

In Stock, only 1 left!

0

42

Cub Cadet BS-93630

Retainer - Exhaust Valve Rotocoil
(Superseded to BS-494553)

$7.99

$

In Stock, only 1 left!

0

45

Cub Cadet BS-260933

Tappet - Valve

$

$

Not available

46

Cub Cadet BS-211689

Gear - Cam

$

$

Not available

219

Cub Cadet BS-494845

Gear - Governor

$

$

Not available

220

Cub Cadet BS-221551

Washer - Thrust
(Superseded to BS-691724)

$5.49

$

In Stock, only 2 left!

0

227

Cub Cadet BS-391965

Lever Ass'y.- Gov.

$

$

Not available

230

Cub Cadet BS-222450

Washer - Gov. Crank
(Superseded to BS-691691)

$3.99

$

In Stock, Qty 5

0

562

Cub Cadet BS-92613

Bolt - Governor Lever

$

$

Not available

592

Cub Cadet BS-231082

Nut - Hex

$

$

Not available

614

Cub Cadet BS-93306

Cotter - Pin

$

$

Not available

615

Cub Cadet BS-93307

Retainer - E#Ring

$5.99

$

In Stock, only 4 left!

0

616

Cub Cadet BS-231057

Crank - Governor

$

$

Not available

741

Cub Cadet BS-262479

Gear - Timing
(Superseded to BS-691288)

$21.99

$

Usually ships in 2-12 days

0

Cub Cadet BS-94388

Timing Gear Key
(Superseded to BS-690979)

$3.49

$

In Stock, only 3 left!

0

Cub Cadet BS-299743

Chrome Ring Set (Standard Size)
(Superseded to BS-690014)

$51.99

$

In Stock, only 4 left!

0

Cub Cadet BS-390773

Connecting Rod

$103.99

$

Usually ships in 2-12 days

0
