650 RTT (954329172-B) - Husqvarna Rear-Tine Tiller (2003-08) Tine Shield Parts Diagram

Rear-Tine Tiller

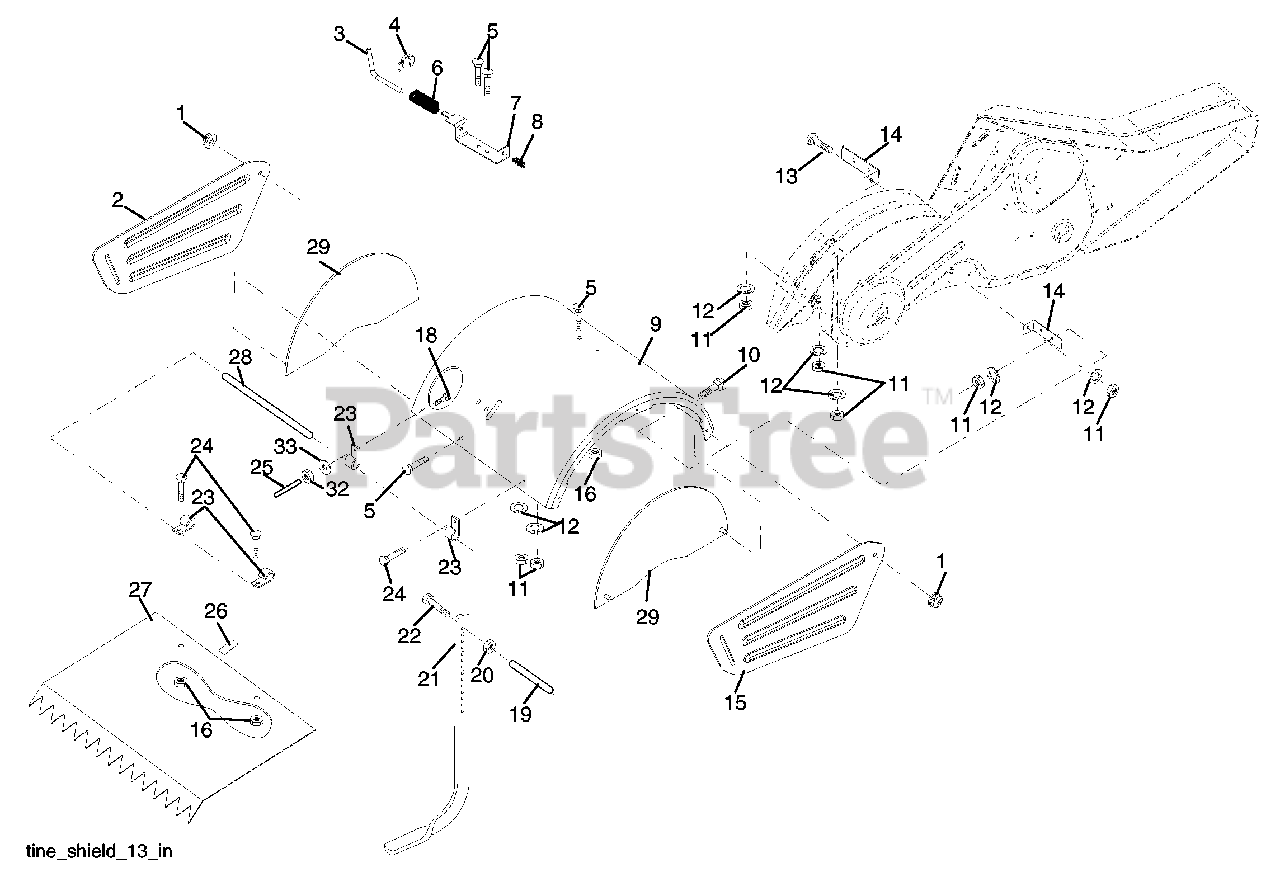

Tine Shield Parts Diagram

  • Title

1

Husqvarna 873900500

Nut, Lock Hex Flange 5/16-18
(Superseded to 583612701)

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532162952

Shield, Side, Outer L. H.
(Superseded to 532440452)

$

$

Not available

3

Husqvarna 532008393

Pin, Stake, Depth

$31.99

$

In Stock, only 1 left!

0

4

Husqvarna 812000035

Ring, Klip

$7.49

$

In Stock, Qty 12

0

5

Husqvarna 532180847

Bolt, Rdhd Sqnk 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 532008394

Spring

$7.49

$

In Stock, only 1 left!

0

7

Husqvarna 532008392

Bracket, Latch

$

$

Not available

8

Husqvarna 532109230

Spring, Depth Stake

$6.49

$

In Stock, Qty 13

0

9

Husqvarna 532142292

Shield, Tine
(Superseded to 532446201)

$66.99

$

Usually ships in 3-10 days

0

10

Husqvarna 872140508

Bolt, Carriage 5/16-18 UNC x 1

$2.99

$

Usually ships in 3-10 days

0

11

Husqvarna 873220500

Nut, Hex 5/16-18

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 810040500

Washer, Lock 5/16
(Superseded to 596238801)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 872110510

Bolt, Carriage 5/16-18 x 1-1/4

$7.49

$

In Stock, Qty 20+

0

14

Husqvarna 532124311

Bracket, Shield Tine
(Superseded to 581813501)

$

$

Not available

15

Husqvarna 532162953

Shield, Side, Outer R.H.
(Superseded to 532440450)

$

$

Not available

16

Husqvarna 873900400

Nut, Hex Flange 1/4-20 UNC
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

18

Husqvarna 872040410

Bolt, Carriage 1/4-20 x 1-1/4 Gr.

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532102701

Grip

$6.49

$

Usually ships in 3-10 days

0

20

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 4 left!

0

21

Husqvarna 532102156

Stake, Depth

$

$

Not available

22

Husqvarna 874930632

Bolt, Hex 3/8-16 x 2

$6.49

$

Usually ships in 3-10 days

0

23

Husqvarna 532004440

Hinge

$6.49

$

In Stock, only 1 left!

0

24

Husqvarna 872140404

Bolt, Carriage 1/4-20 x 1/2 Gr. 5

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 532124717

Cap, Vinyl
(Superseded to 532006712)

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532109227

Pad, Idler

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 532125016

Shield, Leveling
(Superseded to 532440448)

$37.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532120588

Pin, Hinge

$6.49

$

Usually ships in 3-10 days

0

29

Husqvarna 532142293

Shield, Side
(Superseded to 585414301)

$

$

Not available

30

Husqvarna 873970500

Locknut, Flange 5/16-18
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 873220400

Nut Fin Hex 1/4-20 UNC
(Superseded to 532050675)

$6.49

$

In Stock, only 1 left!

0

33

Husqvarna 810040400

Washer Lock Hvy Helical 1/4
(Superseded to 596029801)

$3.99

$

In Stock, only 3 left!

0
