650 RTT (960930002-01) - Husqvarna Rear-Tine Tiller (2006-12) Mainframe, Left Side Parts Diagram

Rear-Tine Tiller

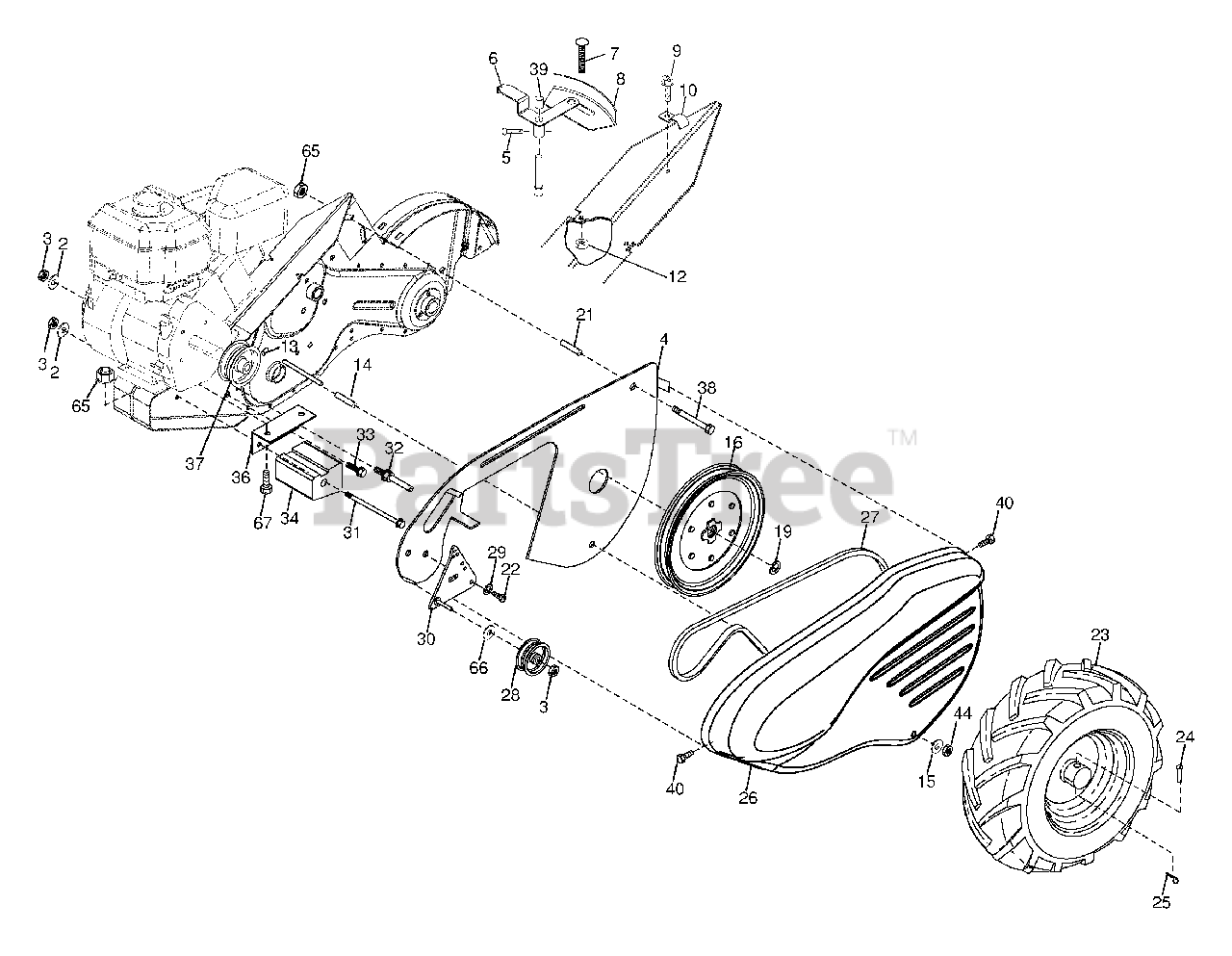

Mainframe, Left Side Parts Diagram

  • Title

1

Husqvarna 873970500

Nut, Hex, Flangelock 5/16
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

2

Husqvarna 810040600

Washer, Lock 3/8
(Superseded to 596238701)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 873220600

Nut, Hex 3/8-16

$6.49

$

In Stock, only 4 left!

0

4

Husqvarna 532170127

Shield, Inner Belt Guard, RH
(Superseded to 532432508)

$45.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532164329

Pin, Spiral, Flared

$7.49

$

In Stock, Qty 12

0

6

Husqvarna 532110111

Lever, Shift

$18.99

$

In Stock, only 1 left!

0

7

Husqvarna 872110404

Bolt, Carriage, Grade 5 1/4-20 x 1/2

$6.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532008700

Plate, Shift Indicator

$4.99

$

In Stock, only 1 left!

0

9

Husqvarna 532086777

Screw, Slotted, Hex Washer Head #10-24 x 1/2
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

10

Husqvarna 532009484

Clip

$6.49

$

In Stock, only 4 left!

0

12

Husqvarna 873510400

Nut, Hex, Keps 1/4-20
(Superseded to 873680400)

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 823230506

Set Screw, Hex 5/16-18 x 3/8

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 532110652

Spacer, Split 0.327 x 0.42 x 2.09

$5.99

$

Usually ships in 3-10 days

0

15

Husqvarna 819111116

Washer 11/32 x 11/16 x 16 Gauge
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532145102

Sheave, Transmission

$66.99

$

In Stock, only 3 left!

0

19

Husqvarna 812000028

Retainer Ring

$7.49

$

In Stock, Qty 20+

0

21

Husqvarna 532156117

Spacer, Split

$6.49

$

Usually ships in 3-10 days

0

22

Husqvarna 874770508

Bolt, Hex Head 5/16-24 x 1/2

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532005015

Tire

$145.99

$

In Stock, only 2 left!

0

23

Husqvarna 532124366

Rim
(Superseded to 532128952)

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532124718

Valve, Tire
(Superseded to 532065139)

$10.99

$

In Stock, Qty 20+

0

24

Husqvarna 532126875

Rivet, Drilled

$6.49

$

In Stock, Qty 20+

0

25

Husqvarna 532124788

Clip, Hairpin
(Superseded to 532004497)

$10.99

$

In Stock, Qty 20+

0

26

Husqvarna 532166792

Guard, Belt
(Superseded to 532440438)

$54.99

$

Usually ships in 3-10 days

0

27

Husqvarna 532132801

Belt, V
(Superseded to 591372401)

$12.99

$

In Stock, Qty 20+

0

28

Husqvarna 532104679

Pulley, Idler

$18.99

$

In Stock, Qty 5

0

29

Husqvarna 812000032

Ring, Klip

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532159229

Bracket, Idler
(Superseded to 584289401)

$

$

Not available

31

Husqvarna 532102384

Bolt, Hex Head 5/16-16 x 12

$6.49

$

Usually ships in 3-10 days

0

32

Husqvarna 532102141

Shaft, Idler Arm

$6.49

$

Usually ships in 3-10 days

0

33

Husqvarna 874760616

Bolt, Hex 3/8-16 x 1
(Superseded to 874780616)

$6.49

$

Usually ships in 3-10 days

0

34

Husqvarna 532102383

Counterweight, LH

$133.99

$

Usually ships in 3-10 days

0

35

Husqvarna 874760524

Bolt, Hex Head 5/16-18 x 1-1/2
(Superseded to 874780524)

$1.49

$

Usually ships in 3-10 days

0

36

Husqvarna 532102331

Bracket, Reinforcement, LH

$4.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532130812

Sheave, Engine
(Superseded to 592642101)

$12.99

$

Usually ships in 3-10 days

0

38

Husqvarna 874760544

Bolt, Hex Head 5/16-18 x 2-3/4
(Superseded to 874780544)

$

$

Not available

39

Husqvarna 532140062

Cap, Plunger, Black

$6.49

$

In Stock, only 1 left!

0

40

Husqvarna 532170488

Screw, Slotted, Hex Washer Head #10-24 x 1/2

$6.49

$

In Stock, only 1 left!

0

44

Husqvarna 873800500

Locknut, Hex, with Insert 5/16-18

$3.99

$

Usually ships in 3-10 days

0

65

Husqvarna 873970500

Nut, Hex, Flangelock
(Superseded to 873680500)

$3.99

$

Usually ships in 3-10 days

0

66

Husqvarna 819131312

Washer 13/32 x 13/16 x 12 Gauge
(Superseded to 734117201)

$3.49

$

In Stock, Qty 20+

0
