65001 (99922203929) - Shindaiwa Multipurpose Trimmer Tool Gear Case Parts Diagram

Multipurpose Trimmer Tool

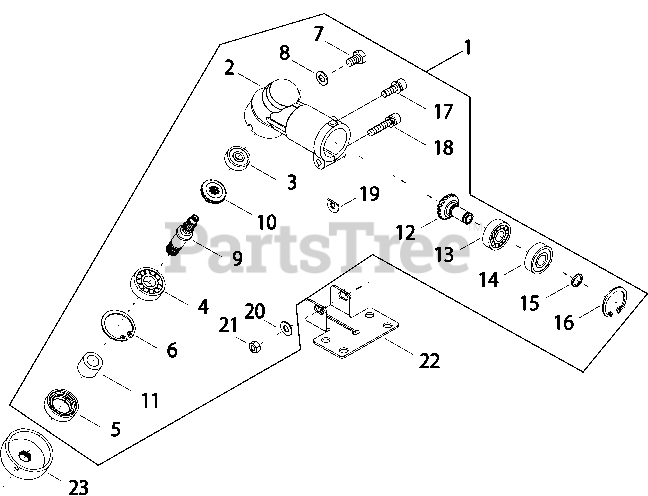

Gear Case Parts Diagram

  • Title

1

Echo C051000680

GEAR CASE ASSY
(Superseded to C051000681)

Note: 63901-63022

$141.99

$

Usually ships in 2-4 days

0

2

Echo C531000710

HOUSING, GEAR CASE
(Superseded to C531000711)

Note: 22035-13113

$24.99

$

Usually ships in 2-4 days

0

3

Echo 90081200626

BEARING, BALL 626 DDU

Note: 20060-00626

$15.99

$

Usually ships in 2-4 days

0

4

Echo 90080006000

BEARING, BALL 6000

Note: 20000-06000

$13.99

$

In Stock, only 2 left!

0

5

Echo V509000000

SEAL, OIL

Note: 22035-13140

$3.99

$

In Stock, Qty 8

0

6

Echo 9242426000

RING, SNAP Ø26

Note: 24322-26120

$1.49

$

In Stock, Qty 5

0

7

Echo 9103006010

BOLT M6×10

Note: 10140-06100

$1.49

$

In Stock, Qty 10

0

8

Echo V304000180

GASKET

Note: 22000-13410

$1.49

$

In Stock, only 2 left!

0

9

Echo C534000680

SHAFT, GEAR

Note: 22410-13210

$19.99

$

In Stock, only 1 left!

0

10

Echo V651000690

GEAR, BEVEL

Note: 22035-13220

$18.99

$

Usually ships in 2-4 days

0

11

Echo V356000480

SPACER

Note: 22035-13230

$3.49

$

In Stock, only 2 left!

0

12

Echo V651000700

GEAR, PINION

Note: 22035-13391

$21.99

$

Usually ships in 2-4 days

0

13

Echo 90080000608

BEARING, BALL 608

Note: 20000-00608

$7.49

$

In Stock, only 4 left!

0

14

Echo 90080400608

BEARING, BALL 608ZZ

Note: 20020-00608

$15.99

$

In Stock, only 2 left!

0

15

Echo V582000140

RING, SNAP

Note: 22035-13340

$

$

Currently unavailable

16

Echo 9242422000

RING, SNAP Ø22

Note: 02432-22100

$1.49

$

Usually ships in 2-4 days

0

17

Echo V203000590

BOLT M5×16
(Superseded to V203000591)

Note: 11022-05160

$1.49

$

In Stock, Qty 6

0

18

Echo V203000600

BOLT M5×35
(Superseded to V203000601)

Note: 11022-05350

$1.99

$

In Stock, Qty 16

0

19

Echo V340000300

D-WASHER

Note: 22000-13420

$1.49

$

In Stock, Qty 6

0

20

Echo 90060300005

WASHER 5.5×12×0.8

Note: 16130-05080

$0.99

$

In Stock, Qty 20+

0

21

Echo 90050000005

NUT 5

Note: 15000-05041

$0.99

$

In Stock, Qty 20+

0

22

Echo C551000150

PLATE, SHIELD MOUNTING

Note: 72480-16130

$4.99

$

In Stock, only 2 left!

0

23

Echo C535000880

HOLDER

Note: 63901-63161

$8.99

$

Usually ships in 2-4 days

0
