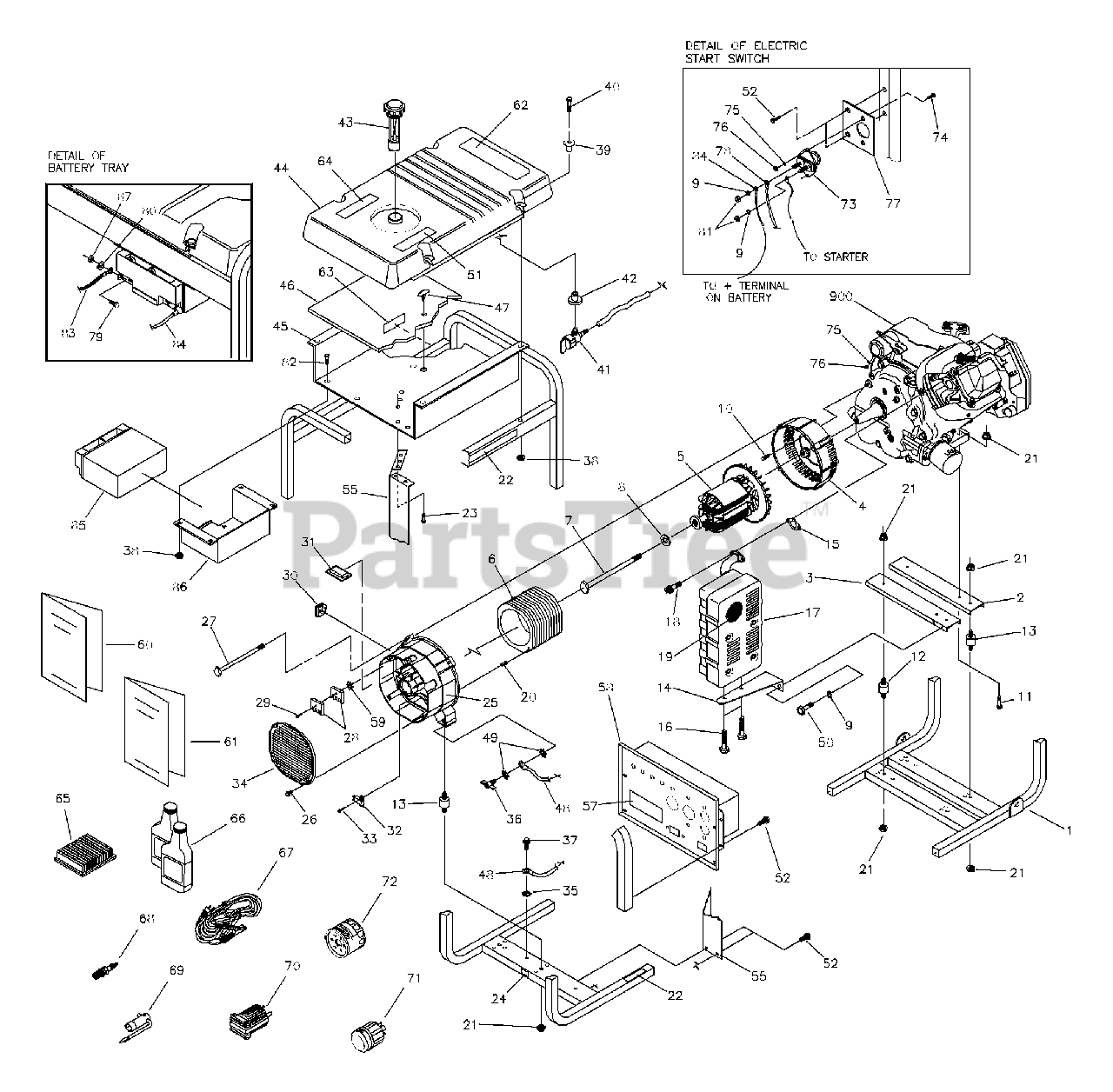

6500GCXe (1789-0) - Generac 6,500 Watt Portable Generator Main Unit Parts Diagram

6,500 Watt Portable Generator

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton G92432GS

CRADLE

$

$

Not available

2

Briggs & Stratton G92531GS

SUPPORT, Engine

$

$

Not available

3

Briggs & Stratton G92731GS

SUPPORT, Engine & Muffler
(Superseded to N92731GS)

$

$

Not available

4

Briggs & Stratton 92247GS

HOUSING, Engine Adapter

$

$

Not available

5

Briggs & Stratton 92679GGS

ASSY, Rotor

$

$

Not available

6

Briggs & Stratton 94981AGS

ASSY, Stator

$

$

Currently unavailable

7

Briggs & Stratton 25254GS

SCREW

$

$

Not available

8

Briggs & Stratton 96796GS

WASHER

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 22129GS

WASHER, Lock

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307GS

SCREW

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 22531GS

SCREW
(Superseded to 704288)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609GS

MOUNT,Vibration

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857GS

MOUNT,Vibration

$12.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 92532GS

BRACKET, Muffler

$23.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 90239GS

GASKET, Exhaust

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66476GS

SCREW, w/ Washer

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton A7433GS

MUFFLER

$

$

Not available

18

Briggs & Stratton 40976GS

SCREW

$4.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 83083GS

SCREEN, Spark Arrest

$9.99

$

In Stock, only 2 left!

0

20

Briggs & Stratton 81917GS

PIN, Roll

$3.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 189160GS

NUT

$2.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 77816GS

DECAL, Caution, Hot Muffler

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 56893GS

SCREW

$3.49

$

In Stock, only 1 left!

0

24

Briggs & Stratton B4986GS

DECAL, Ground

$3.49

$

In Stock, only 1 left!

0

25

Briggs & Stratton SRV66825DGS

CARRIER, Rear Bearing

$145.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908GS

SCREW

$3.49

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308BGS

BOLT

$

$

Not available

28

Briggs & Stratton 65795GS

RECTIFIER, Battery Charge

Note: (Use 2 EA on Model 1789)

$

$

Not available

29

Briggs & Stratton 66849AGS

SCREW

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 66849CGS

SCREW

Note: Used on model 01789-0

$4.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022GS

GROMMET, Rubber

$

$

Not available

31

Briggs & Stratton 84132GS

ASSY, Power Regulator

$126.99

$

In Stock, only 1 left!

0

32

Briggs & Stratton 66386GS

ASSY, Brush Holder

$24.99

$

In Stock, Qty 12

0

33

Briggs & Stratton 66849GS

SCREW
(Superseded to 49815GS)

$3.99

$

In Stock, only 1 left!

0

34

Briggs & Stratton B4871GS

COVER, Bearing Carrier

$

$

Not available

35

Briggs & Stratton 22769GS

WASHER, Shakeproof

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494GS

SCREW,Wing

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292GS

SCREW
(Superseded to 313085GS)

$5.49

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395GS

NUT, Lock

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465GS

GROMMET,Tank

$3.99

$

In Stock, Qty 9

0

40

Briggs & Stratton 78831BGS

SCREW

$

$

Not available

41

Briggs & Stratton 80270GS

VALVE,Tank
(Superseded to 192980GS)

$18.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299GS

BUSHING,Tank
(Superseded to 192980GS)

$18.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton B4363GS

CAP, Fuel Gauge

$43.99

$

In Stock, Qty 12

0

44

Briggs & Stratton B1998GS

ASSY,Tank, Fuel
(Superseded to 193500GS)

Note: (Incl. Items 41 & 42)

$

$

Not available

45

Briggs & Stratton J92039GS

SHIELD, Heat

$

$

Not available

45

Briggs & Stratton J189176GS

SHIELD, Heat
(Superseded to 192982GS)

Note: Used on model 01789-0

$

$

Not available

46

Briggs & Stratton 92665GS

INSULATION

$

$

Not available

47

Briggs & Stratton 85000GS

CLIP, Insulation

$3.49

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 14353621GS

ASSY,Wire
(Superseded to 195373GS)

$

$

Not available

49

Briggs & Stratton 26850GS

WASHER, Shakeproof

$2.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 22142GS

SCREW
(Superseded to 704287)

$3.99

$

In Stock, Qty 20+

0

51

Briggs & Stratton 92982GS

DECAL, Danger
(Superseded to 194799GS)

$12.99

$

In Stock, only 1 left!

0

52

Briggs & Stratton B2153GS

SCREW

$4.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton J96068GS

SHIELD, Heat
(Superseded to 192983GS)

$40.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 191496GS

DECAL, Control Panel

$

$

Currently unavailable

57

Briggs & Stratton 191328GS

DECAL, Control Panel

Note: Used on model 01789-0

$

$

Currently unavailable

58

Briggs & Stratton 96198GS

ASSY, Control Box

Note: (See "Control Box" illustration and parts list.)

$

$

Not available

59

Briggs & Stratton 23762GS

WASHER, Shakeproof

$3.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton A8927GS

MANUAL, Engine

$

$

Not available

61

Briggs & Stratton 191337GS

MANUAL, Owners

$

$

Not available

62

Briggs & Stratton 93826GS

DECAL, Start Instructions

$

$

Not available

63

Briggs & Stratton 73054GS

DECAL, Fuel Shutoff

$9.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 188333GS

DECAL, Gas Fill

$25.99

$

In Stock, only 1 left!

0

65

Briggs & Stratton 73111GS

ELEMENT, Air Filter

$16.99

$

In Stock, only 4 left!

0

66

Briggs & Stratton BB3061GS

BOTTLE, Oil, 28 oz.

$15.99

$

In Stock, only 2 left!

0

67

Briggs & Stratton 65787GPGS

CABLE, Battery Charge

$

$

Currently unavailable

68

Briggs & Stratton 72347GS

SPARKPLUG
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

69

Briggs & Stratton 84882GS

WRENCH, Sparkplug

$9.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 37806GS

PLUG, 125V 30A
(Superseded to 100523GS)

$

$

Not available

71

Briggs & Stratton 43483GS

PLUG, 250V 20A
(Superseded to 100522GS)

$36.99

$

Usually ships in 2-12 days

0

72

Briggs & Stratton 70185GS

FILTER, Oil

$

$

Not available

73

Briggs & Stratton 77282GS

SWITCH, Starter

Note: Used on model 01789-0

$81.99

$

In Stock, only 1 left!

0

74

Briggs & Stratton 22287GS

SCREW
(Superseded to 5025010X6SM)

Note: Used on model 01789-0

$3.99

$

In Stock, Qty 20+

0

75

Briggs & Stratton 22097GS

WASHER, Lock

Note: Used on model 01789-0

$3.49

$

Usually ships in 2-12 days

0

76

Briggs & Stratton 22127GS

NUT

Note: Used on model 01789-0

$

$

Not available

77

Briggs & Stratton 78289GS

BRACKET, Starter Switch

Note: Used on model 01789-0

$

$

Not available

78

Briggs & Stratton 96113GS

ASSY,Wire

Note: Used on model 01789-0

$

$

Not available

79

Briggs & Stratton 52618GS

SCREW

Note: Used on model 01789-0

$3.49

$

Usually ships in 2-12 days

0

80

Briggs & Stratton 23897GS

WASHER
(Superseded to 1910531SM)

Note: Used on model 01789-0

$3.99

$

Usually ships in 2-12 days

0

81

Briggs & Stratton 24114GS

NUT
(Superseded to 703331)

Note: Used on model 01789-0

$4.49

$

In Stock, Qty 17

0

82

Briggs & Stratton 43116GS

SCREW

Note: Used on model 01789-0

$3.49

$

Usually ships in 2-12 days

0

83

Briggs & Stratton 185939HGS

ASSY, Wire

Note: Used on model 01789-0

$21.99

$

Usually ships in 2-12 days

0

84

Briggs & Stratton 189302CGS

ASSY, Wire

Note: Used on model 01789-0

$

$

Not available

85

Briggs & Stratton B4489GS

BATTERY, 12V, 18 AH
(Superseded to 193043GS)

Note: Used on model 01789-0

$145.99

$

In Stock, only 2 left!

0

86

Briggs & Stratton J186704GS

TRAY, Battery
(Superseded to 192985GS)

Note: Used on model 01789-0

$81.99

$

Usually ships in 2-12 days

0

87

Briggs & Stratton 52856GS

NUT

Note: Used on model 01789-0

$3.49

$

Usually ships in 2-12 days

0

900

Briggs & Stratton ~NSP

ENGINE

$

$

Currently unavailable
