65010 (99922203931) - Shindaiwa Multipurpose Edger Attachment Edging Assembly Parts Diagram

Multipurpose Edger Attachment

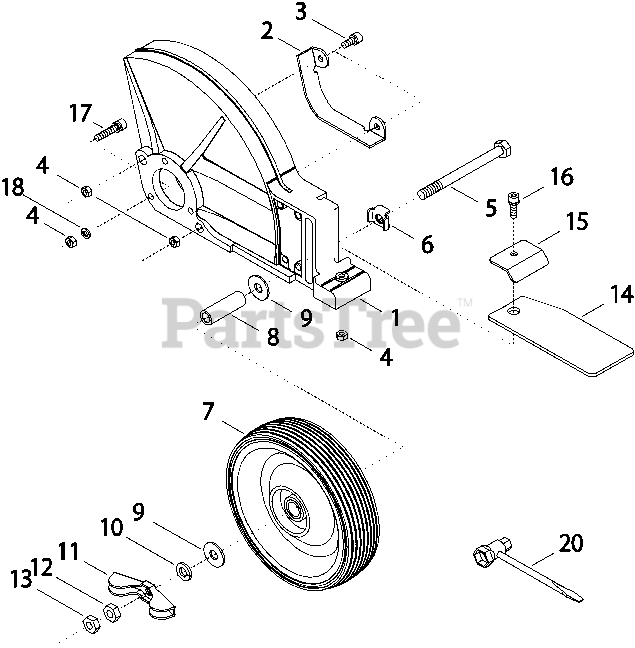

Edging Assembly Parts Diagram

  • Title

1

Echo C550000460

SHIELD, DEBRIS

Note: 72958-16113

$49.99

$

In Stock, only 1 left!

0

2

Echo C557000100

PROTECTOR, GEAR CASE

Note: 72958-16210

$8.49

$

In Stock, Qty 6

0

3

Echo V203000950

BOLT M5×12

Note: 11020-05120

$0.99

$

In Stock, Qty 8

0

4

Echo 90050000005

NUT 5

Note: 01500-05041

$0.99

$

In Stock, Qty 20+

0

5

Echo 90010008090

BOLT M8×90

Note: 01000-08901

$1.99

$

In Stock, Qty 5

0

6

Echo V152002400

PLATE, LOCK

Note: 72958-16321

$2.49

$

In Stock, Qty 16

0

7

Echo C730000050

WHEEL
(Superseded to P200000900)

Note: 72958-16331

$24.99

$

In Stock, Qty 9

0

8

Echo V355000450

SLEEVE

Note: 15401-10300

$4.49

$

In Stock, Qty 6

0

9

Echo V306000300

WASHER

Note: 15401-20006

$0.99

$

In Stock, Qty 6

0

10

Echo 90060500008

WASHER, SPRING 8

Note: 01600-08201

$0.99

$

In Stock, Qty 20+

0

11

Echo V299000440

NUT, WING
(Superseded to V299000441)

Note: 72958-16340

$6.49

$

In Stock, Qty 19

0

12

Echo V299000440

NUT, WING
(Superseded to V299000441)

Note: 01500-08061

$6.49

$

In Stock, Qty 19

0

13

Echo V265000340

NUT, LOCK

Note: 72958-16350

$0.99

$

In Stock, Qty 18

0

14

Echo C550000470

FLAP, DEBRIS

Note: 72958-16411

$4.49

$

In Stock, Qty 15

0

15

Echo V152002410

PLATE, FLAP

Note: 72958-16421

$7.49

$

In Stock, Qty 6

0

16

Echo V203000720

BOLT M5×16
(Superseded to 9112205016)

Note: 11020-05160

$0.99

$

In Stock, Qty 20+

0

17

Echo V203000560

BOLT M5×25

Note: 11023-05250

$1.99

$

In Stock, Qty 8

0

18

Echo 90060500005

WASHER, SPRING 5

Note: 01600-05131

$0.99

$

In Stock, Qty 6

0

20

Echo X602000150

T-WRENCH 13×19mm
(Superseded to 89541006961)

Note: 22000-91181

$3.49

$

In Stock, Qty 10

0
