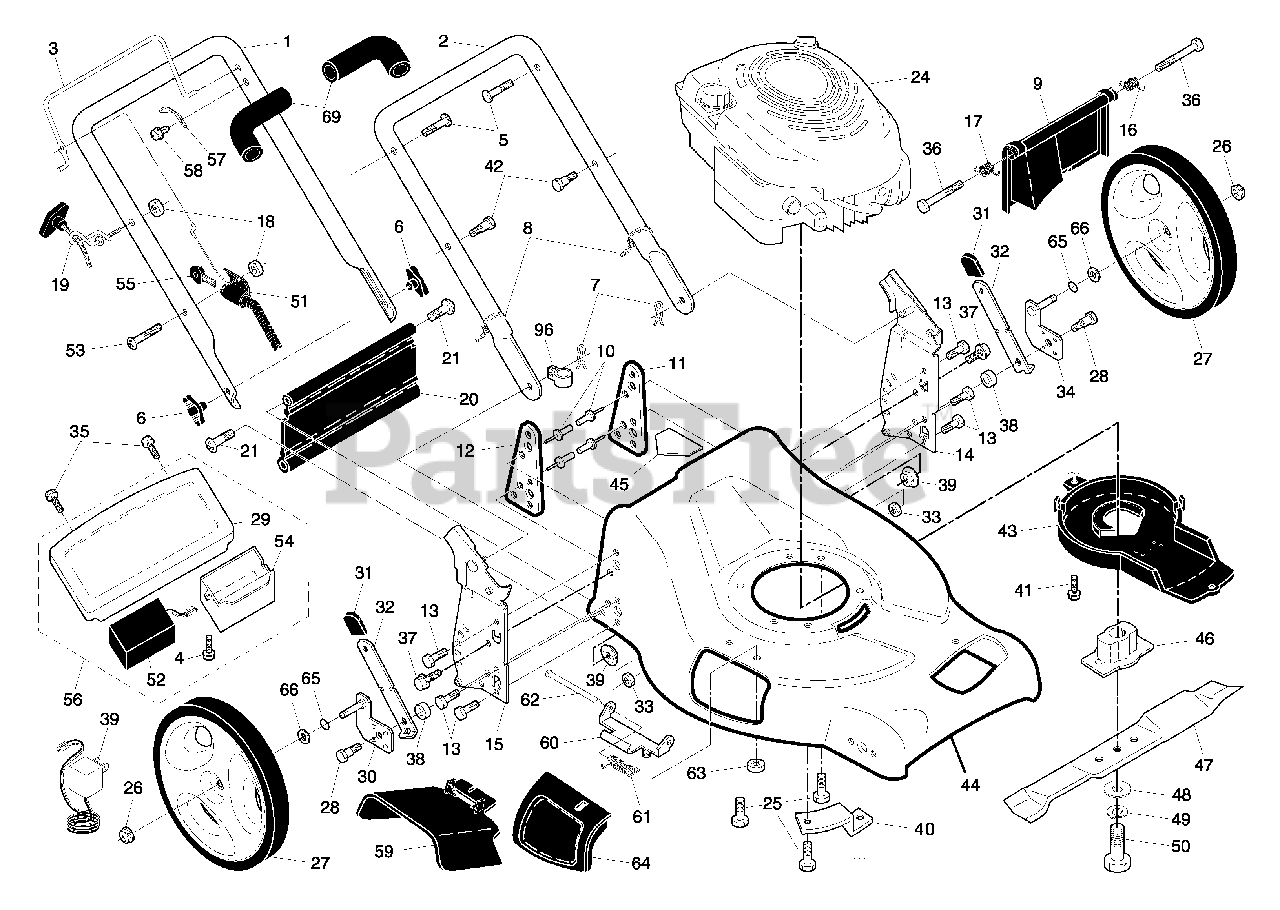

65021 ES (961430020-00) - Husqvarna 21" Walk-Behind Mower (2006-12) Handle & Deck Assembly Parts Diagram

21" Walk-Behind Mower

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532196403

RP HANDLE.ASM.UPPER.W/GRI
(Superseded to 532427658)

Note: (Includes Foam Grip)

$101.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532411702

HANDLE.LOWER.21.FWGD.GREY

$

$

Not available

3

Husqvarna 532197019

BAIL.DSTRT.FL.AW.CREAS.ORANGE

$

$

Not available

4

Husqvarna 817411308

SCREW.HWH.13-16X.50

$3.99

$

In Stock, Qty 9

0

5

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$7.49

$

In Stock, Qty 20+

0

6

Husqvarna 532191856

HNDL.KNOB.GRAY
(Superseded to 532185577)

$9.99

$

In Stock, Qty 20+

0

7

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

8

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.99

$

Usually ships in 3-10 days

0

9

Husqvarna 532406985

REAR DOOR ASSEMBLY
(Superseded to 532401812)

$39.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532410540

SUPPORT BRACKET LH
(Superseded to 532406573)

$

$

Not available

12

Husqvarna 532410542

BRACKET.SUPRT.RH.21.FWGD

$

$

Not available

13

Husqvarna 817060410

SCREW 14-20 X 5/8

$3.99

$

In Stock, Qty 5

0

14

Husqvarna 532196037

BRKT.ASM.HNDL.21FGD.EZ
(Superseded to 532434513)

$

$

Not available

15

Husqvarna 532196036

BRKT.ASM.HNDL.21FGD
(Superseded to 532434512)

$

$

Not available

16

Husqvarna 532405417

SPRING.REAR.DOOR.EZ.21.LT

$8.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532405418

SPRING.REAR.DOOR.EZ.21.RT

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$9.99

$

In Stock, only 3 left!

0

20

Husqvarna 532189005

REAR SKIRT
(Superseded to 532413159)

$21.99

$

In Stock, only 2 left!

0

21

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

24

Engine, Briggs & Stratton

Note: Model Number 124T05 (for engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

25

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$5.99

$

In Stock, only 3 left!

0

26

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

27

Husqvarna 532410815

WHEEL ASSY
(Superseded to 585911001)

$33.99

$

In Stock, Qty 20+

0

28

Husqvarna 532160828

SHOULDER BOLT

$

$

Not available

29

Husqvarna 532186153

PANEL.TRIM.21.FWGD
(Superseded to 532411190)

$45.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532402571

ARM.ASM.AXLE.H/W,RR.BZ

$

$

Not available

31

Husqvarna 532190622

KNOB, SELECTOR SPRING
(Superseded to 532189808)

$

$

Not available

32

Husqvarna 532190157

SPRING.SELECTOR.21.FWG.ZINC

$

$

Not available

33

Husqvarna 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

34

Husqvarna 532402572

ARM.ASM.AXLE.H/W.LR.BZ

$

$

Not available

35

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

36

Husqvarna 532184193

BOLT

$

$

Not available

37

Husqvarna 874780412

BOLT
(Superseded to 596230901)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 819112206

WASHER.FLAT.34X1.38X22

$5.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532190097

RP CHARGER.BATTERY
(Superseded to 532428626)

$

$

Not available

40

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$

$

Not available

41

Husqvarna 532192325

SCREW.HEX.WSH

$5.99

$

In Stock, only 2 left!

0

42

Husqvarna 532175551

SCREW.SHOULDER.HH.10X.281X.6

$4.99

$

Usually ships in 3-10 days

0

43

Husqvarna 532405844

DEBRIS SHIELD
(Superseded to 532443950)

$

$

Not available

44

Husqvarna 532408989

HOUSING.21.FWD.ORANGE.WALK

Note: (Includes Key Numbers 10, 11, 12 and 45)

$

$

Not available

45

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$3.99

$

Usually ships in 3-10 days

0

46

Husqvarna 532194037

RP ADAP.BLDE/PULL
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532406712

BLADE.21.PUSH/RWGD/FWGD
(Superseded to 594893001)

$23.99

$

In Stock, Qty 12

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$5.99

$

In Stock, Qty 20+

0

51

Husqvarna 532189686

KIT.CONTROL.COMBI.KEYW/HARNESS

Note: (Includes Key)

$47.99

$

In Stock, only 4 left!

0

52

Husqvarna 532189589

BATTERY WITH AMP CONECTOR AGM
(Superseded to 584353901)

$

$

Not available

53

Husqvarna 532186159

SCREW.(COMBINATION CONTROL)

$7.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532186237

BOX.BATTERY.TRIM

$

$

Not available

55

Husqvarna 532180331

KEY.MOLDED

$7.49

$

In Stock, Qty 7

0

56

Husqvarna 532191252

PANEL.ASM.TRIM/BATTERY.BOX

$

$

Not available

57

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532750634

SCREW

$3.49

$

In Stock, only 2 left!

0

59

Husqvarna 532185582

DEFLECTOR.CLIPPIN.21.FGD
(Superseded to 532175071)

$22.99

$

In Stock, Qty 6

0

60

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

61

Husqvarna 532193000

SPRING.TORSION

$8.49

$

In Stock, Qty 15

0

62

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 7

0

63

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532185576

DOOR.MULCH.21.REAR.FWGD

$

$

Not available

65

Husqvarna 532197480

O-RING..070X.487.NEOPRENE

$4.99

$

In Stock, Qty 20+

0

66

Husqvarna 532088348

WASHER.FLAT.1/2

$3.99

$

In Stock, Qty 16

0

69

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

96

Husqvarna 532197991

CLIP.CABLE.BLK

$3.99

$

In Stock, Qty 11

0

Husqvarna 532404764

DECAL, WARNING (NOT SHOWN)
(Superseded to 581579101)

Note: (not shown)

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 532409054

OWNER'S MANUAL, ENGLISH/FRENCH

$

$

Not available
