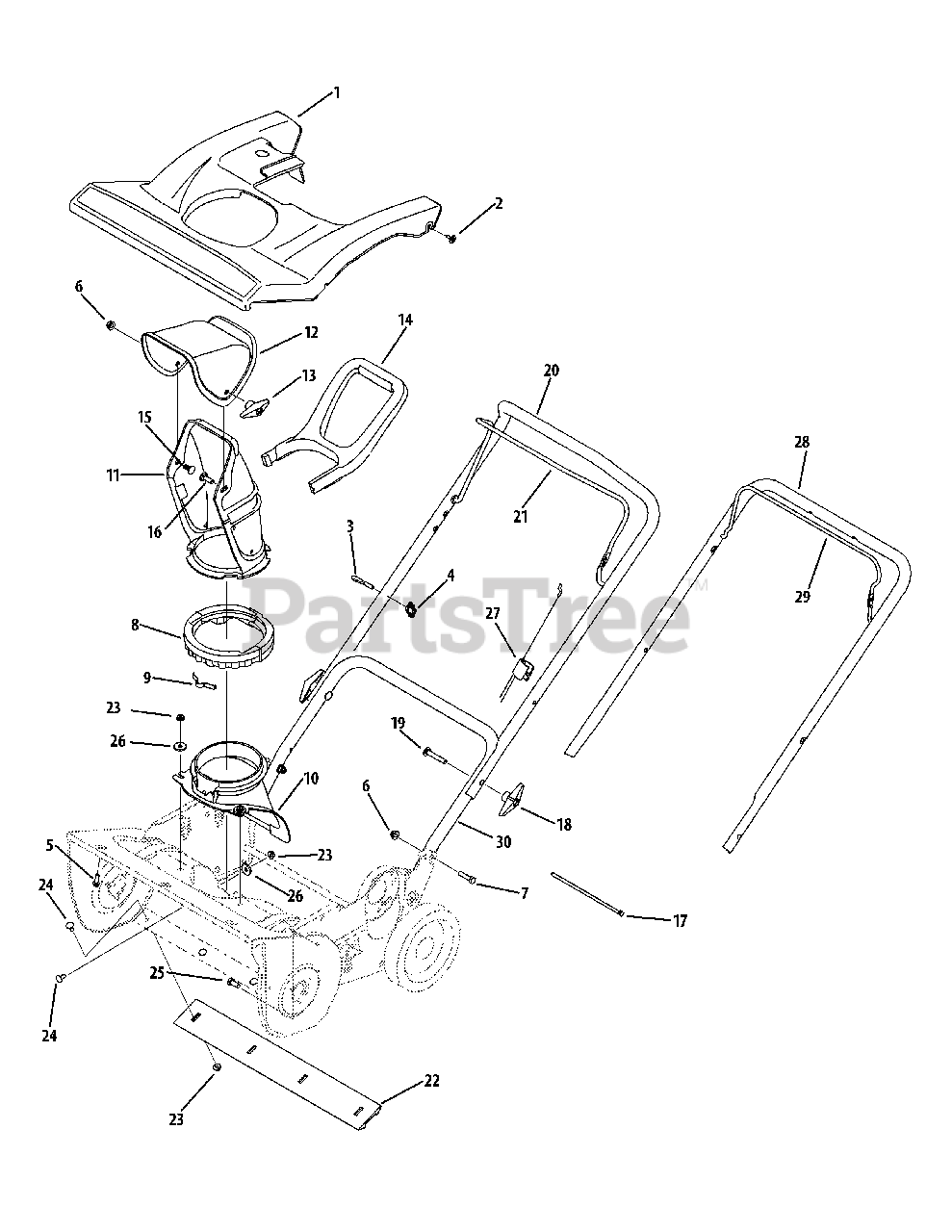

65021 MSE (31AM2P5B897) - Columbia 21" Snow Thrower (2009) General Assembly Parts Diagram

21" Snow Thrower

General Assembly Parts Diagram

  • Title

1

White Outdoor 731-06452

Shroud Ass’y (Models w/electric start)

$

$

Not available

2

White Outdoor 710-04669

Hex Wash B-Tapp Scr #10 x .62" Lg.

$3.49

$

In Stock, Qty 20+

0

3

White Outdoor 710-1205

Eyebolt 1/4-20

$3.99

$

In Stock, Qty 15

0

4

White Outdoor 720-0279

Handle Knob Assembly

$4.49

$

In Stock, Qty 20+

0

5

White Outdoor 710-0895

Hex Tapp Scr 1/4 x .75" Lg.

$5.99

$

In Stock, Qty 20+

0

6

White Outdoor 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

7

White Outdoor 710-1090

Hex Flg. Screw 5/16-18 x 1.25

$3.49

$

Usually ships in 3-6 days

0

8

White Outdoor 931-04353

Lower Chute Ring

$17.99

$

In Stock, only 2 left!

0

9

White Outdoor 932-04111

Chute Adjustment Spring

$4.49

$

In Stock, only 2 left!

0

10

White Outdoor 931-04886

Chute Adapter 5" Dia

$18.99

$

Usually ships in 3-6 days

0

11

White Outdoor 931-04127

Lower Chute 5" Dia

$31.99

$

Usually ships in 3-6 days

0

12

White Outdoor 731-04354B

Upper Chute

$14.99

$

Usually ships in 3-6 days

0

13

White Outdoor 720-04072A

Handle Knob Assembly

$6.49

$

In Stock, Qty 20+

0

14

White Outdoor 731-04388A

Chute Handle

$24.99

$

Usually ships in 3-6 days

0

15

White Outdoor 710-0451

Carriage Bolt 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

16

White Outdoor 710-04071

Carriage Screw 5/16-18 x 1.0

$4.49

$

In Stock, Qty 16

0

17

White Outdoor 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0

18

White Outdoor 720-04072A

Handle Knob Assembly

$6.49

$

In Stock, Qty 20+

0

19

White Outdoor 710-04532

Carriage Bolt 5/16-18 x 2.0 Gr. 5

$5.99

$

In Stock, Qty 6

0

20

White Outdoor 749-04106A-0637

Gullwing Handle

$47.99

$

Usually ships in 3-6 days

0

21

White Outdoor 747-04159A-0637

Control Bail

$33.99

$

In Stock, only 1 left!

0

22

White Outdoor 731-1033

Shave Plate

$44.99

$

In Stock, Qty 18

0

23

White Outdoor 712-04064

Hex L-Flanged Nut 1/4-20 Gr. F Nylon

$3.99

$

In Stock, Qty 20+

0

24

White Outdoor 710-0134

Carriage Bolt 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

25

White Outdoor 710-3008

Hex Screw 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

26

White Outdoor 936-0176

Flat Washer .25 ID x .93 OD x .125
(Superseded to 736-0176)

$3.99

$

In Stock, Qty 20+

0

27

White Outdoor 746-04237

Control Cable
(Superseded to 946-04237)

$22.99

$

In Stock, Qty 5

0

28

White Outdoor 749-04459-0637

Upper Handle

$36.99

$

Usually ships in 3-6 days

0

29

White Outdoor 747-04165-0637

Control Bail

$12.99

$

In Stock, Qty 7

0

30

White Outdoor 749-04114B-0637

Lower Handle

$39.99

$

Usually ships in 3-6 days

0
