65022 ES (961430023-01) - Husqvarna 22" Walk-Behind Mower (2007-08) Repair Parts (B) Parts Diagram

22" Walk-Behind Mower

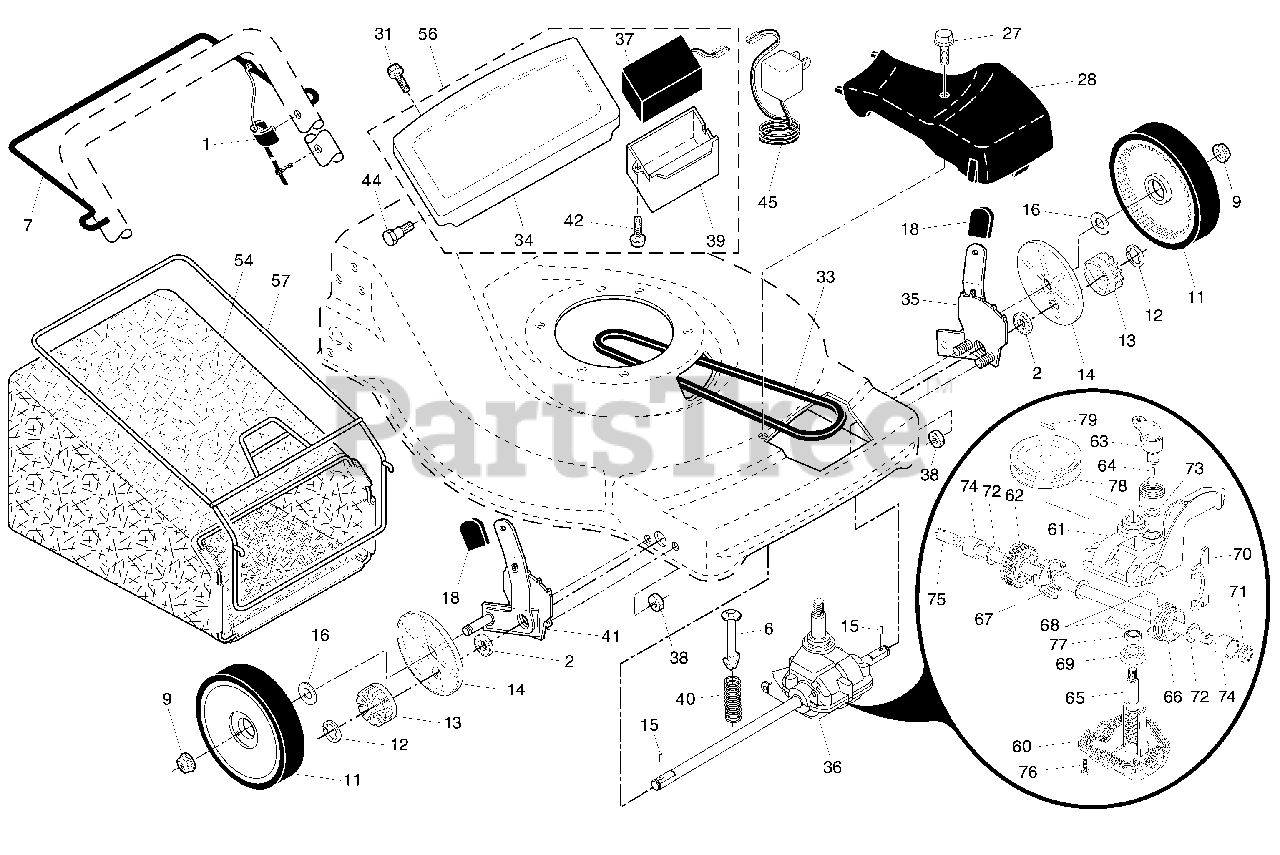

Repair Parts (B) Parts Diagram

  • Title

1

Husqvarna 532194653

CONTROL.DRIVE.S/SPEED.FWGD

$29.99

$

In Stock, Qty 20+

0

6

Husqvarna 532150495

SPRING RETAINER

$4.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532199093

BAIL.CONT.DR.S/S.ROUND.ORG

$

$

Not available

9

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$35.99

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.99

$

In Stock, Qty 20+

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$8.49

$

In Stock, Qty 20+

0

15

Husqvarna 532191017

PAWL.DRIVE
(Superseded to 532404845)

$5.99

$

In Stock, Qty 20+

0

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 6

0

17

Husqvarna 532404831

BEARING ASM
(Superseded to 587070202)

$17.99

$

In Stock, Qty 10

0

18

Husqvarna 532196401

KNOB.DELUXE.GRAY

$4.99

$

In Stock, only 4 left!

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.99

$

In Stock, only 2 left!

0

28

Husqvarna 532403342

COVER.DRIVE.TORUS.B&S.BLACK

$

$

Not available

31

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$3.99

$

In Stock, only 2 left!

0

33

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$21.99

$

In Stock, Qty 8

0

34

Husqvarna 532411190

PANEL.TRIM.21.FWGD.ES

$45.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532408862

WHEEL ADJ KIT LH
(Superseded to 532438485)

Note: Includes Knob and Bearing

$

$

Not available

36

Husqvarna 532199206

TRANSMISSION.22.FGD.W/PULLEY
(Superseded to 532415226)

$101.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532189589

BATTERY WITH AMP CONECTOR AGM
(Superseded to 584353901)

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

39

Husqvarna 532186237

BOX.BATTERY.TRIM

$

$

Not available

40

Husqvarna 532137090

SPRING.EXTENSION

$5.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532408861

WHEEL ADJ KIT RH
(Superseded to 532438486)

Note: Includes Knob and Bearing

$

$

Not available

42

Husqvarna 817411308

SCREW.HWH.13-16X.50

$3.99

$

In Stock, Qty 9

0

44

Husqvarna 532175551

SCREW.SHOULDER.HH.10X.281X.6

$4.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532190097

RP CHARGER.BATTERY
(Superseded to 532428626)

$

$

Not available

54

Husqvarna 532410683

GBAG.8471024T.SIL.HUSQ.BLU

$

$

Not available

56

Husqvarna 532191252

PANEL.ASM.TRIM/BATTERY.BOX

$

$

Not available

57

Husqvarna 532407454

FRAME GRASSBAG
(Superseded to 532411952)

$

$

Not available

60

Husqvarna 532183497

LOWER CASE

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$15.99

$

In Stock, only 2 left!

0

61

Husqvarna 532183498

UPPER CASE

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$

$

Not available

62

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$

$

Not available

63

Husqvarna 532183500

LEVER, CLUTCH

$

$

Not available

64

Husqvarna 532183501

SPRING, RETURN

$

$

Not available

65

Husqvarna 532183502

SHAFT INPUT (13041)

$33.99

$

Usually ships in 3-10 days

0

66

Husqvarna 532183503

DOG, MOVABLE (11032)

$

$

Not available

67

Husqvarna 532183504

DOG, FIXED GT11031

$

$

Not available

68

Husqvarna 532183505

WIRE, FORMED (15966)

$7.49

$

In Stock, only 1 left!

0

69

Husqvarna 532183506

BEARING

$

$

Not available

70

Husqvarna 532183507

FORK, SHIFT

$

$

Not available

71

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$9.99

$

In Stock, Qty 7

0

72

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

73

Husqvarna 532183510

SEAL, CASE O-RING

$

$

Not available

74

Husqvarna 532183511

BUSHING

$

$

Not available

75

Husqvarna 532196561

SHAFT OUTPUT (12260 NOW 12663)

$

$

Not available

76

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available

78

Husqvarna 532199852

PULLEY.DRIVEN.FGD

$35.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532199419

PIN RETAINER

$8.49

$

Usually ships in 3-10 days

0
