65022 ES - Husqvarna 22" Walk-Behind Mower (2008-01) DRIVE Parts Diagram

22" Walk-Behind Mower

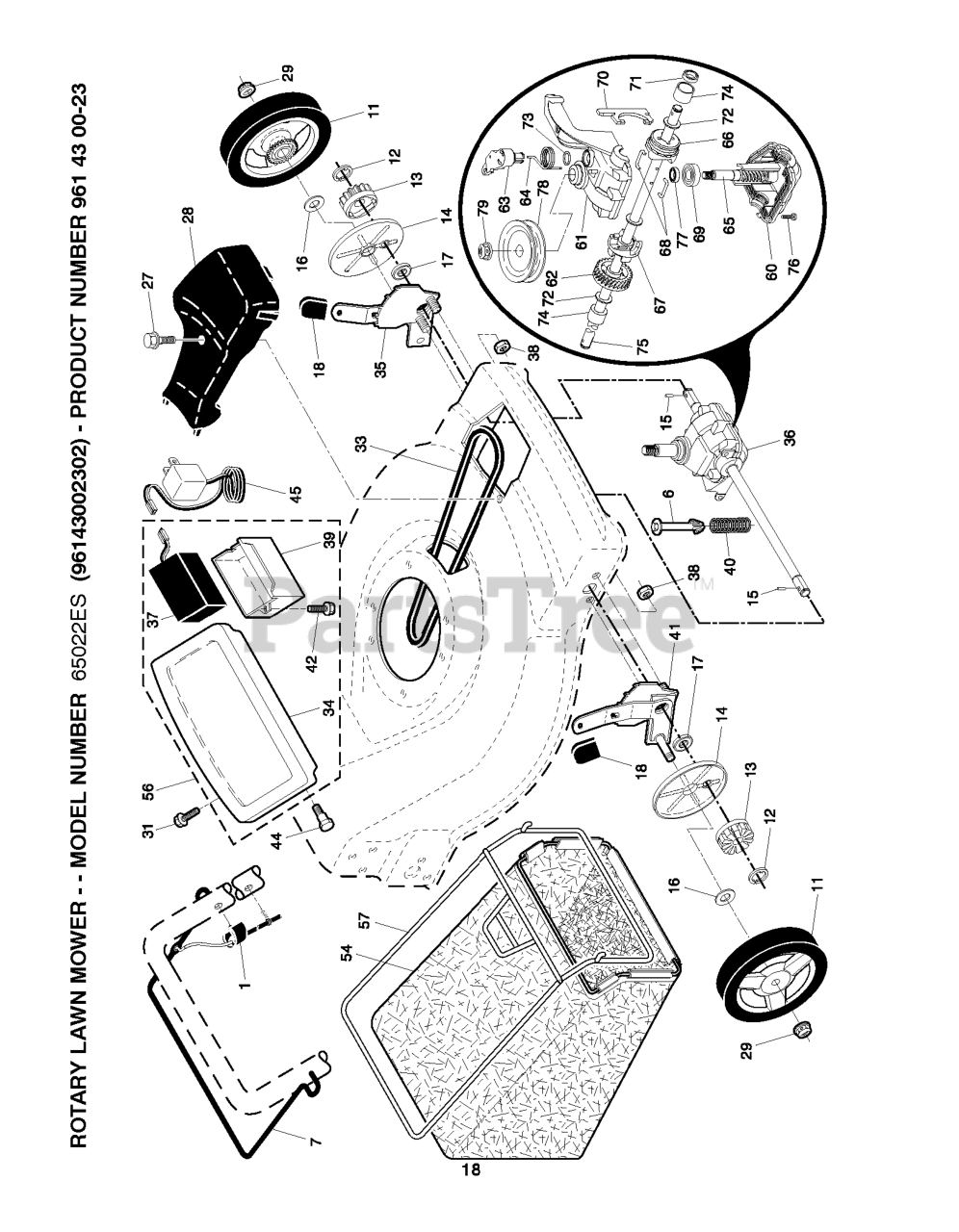

DRIVE Parts Diagram

  • Title

69

Husqvarna 532183506

BEARING

$8.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532403849

PINION.14.TEETH.FGD

$6.49

$

In Stock, Qty 20+

0

64

Husqvarna 532183501

SPRING, RETURN

$6.49

$

Usually ships in 3-10 days

0

62

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

Note: 27 Teeth

$17.99

$

In Stock, only 1 left!

0

11

Husqvarna 532411081

WHEEL.8X1.75.H3SPK.RAD3.GY.BU3
(Superseded to 532401274)

$34.99

$

In Stock, Qty 20+

0

18

Husqvarna 532196401

KNOB.DELUXE.GRAY

$4.99

$

In Stock, only 2 left!

0

37

Husqvarna 532189589

BATTERY WITH AMP CONECTOR AGM
(Superseded to 584353901)

$103.99

$

In Stock, only 4 left!

0

68

Husqvarna 532183505

WIRE, FORMED (15966)

$4.99

$

Usually ships in 3-10 days

0

71

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$6.49

$

In Stock, only 2 left!

0

42

Husqvarna 817411308

SCREW.HWH.13-16X.50

$6.49

$

In Stock, only 1 left!

0

73

Husqvarna 532183510

SEAL, CASE O-RING

$6.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532141841

SCREW.PAN.HEAD.#10

$7.49

$

In Stock, only 2 left!

0

57

Husqvarna 532411952

FRAME.GBAG.22.EZ.EMPTY.SC

$

$

Not available

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$7.49

$

In Stock, only 4 left!

0

41

Husqvarna 532408861

WHEEL ADJ KIT RH
(Superseded to 532438486)

$44.99

$

In Stock, only 3 left!

0

16

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

66

Husqvarna 532183503

DOG, MOVABLE (11032)

$6.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

60

Husqvarna 532183497

LOWER CASE

Note: Lower

$15.99

$

In Stock, only 1 left!

0

6

Husqvarna 532150495

SPRING RETAINER

$7.49

$

In Stock, only 1 left!

0

65

Husqvarna 532416988

SHAFT.INPUT.WORM.GEAR(13155)

$27.99

$

Usually ships in 3-10 days

0

1

Husqvarna 532194653

CONTROL.DRIVE.S/SPEED.FWGD

$26.99

$

In Stock, only 2 left!

0

54

Husqvarna 532410683

GBAG.8471024T.SIL.HUSQ.BLU

$72.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532408862

WHEEL ADJ KIT LH
(Superseded to 532438485)

Note: "LH, Includes Knob and Bearing"

$44.99

$

Usually ships in 3-10 days

0

56

Husqvarna 532191252

PANEL.ASM.TRIM/BATTERY.BOX

$78.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532183498

UPPER CASE

Note: Upper

$15.99

$

Usually ships in 3-10 days

0

36

Husqvarna 532415226

TRANSMISSION.22.FGD/W/PULLEY

Note: We advise Total Multis EP00 semi-liquid grease or a comparable grade (quantity 1.15 oz)

$84.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183500

LEVER, CLUTCH

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532137090

SPRING.EXTENSION

$6.49

$

In Stock, only 1 left!

0

29

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532411190

PANEL.TRIM.21.FWGD.ES

$34.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532183514

SEAL INPUT SHAFT

$7.49

$

In Stock, only 2 left!

0

74

Husqvarna 532183511

BUSHING

$4.99

$

Usually ships in 3-10 days

0

44

Husqvarna 532175551

SCREW.SHOULDER.HH.10X.281X.6

$4.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532404845

PAWL, DRIVE

$4.99

$

In Stock, Qty 20+

0

45

Husqvarna 532190097

RP CHARGER.BATTERY
(Superseded to 532428626)

$24.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532196561

SHAFT OUTPUT (12260 NOW 12663)

$54.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532199093

BAIL.CONT.DR.S/S.ROUND.ORG

$24.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

70

Husqvarna 532183507

FORK, SHIFT

$9.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532146527

BELT THERM .32
(Superseded to 532157769)

$14.99

$

In Stock, Qty 6

0

67

Husqvarna 532183504

DOG, FIXED GT11031

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183509

WASHER

$6.49

$

Usually ships in 3-10 days

0

39

Husqvarna 532186237

BOX.BATTERY.TRIM

$7.49

$

Usually ships in 3-10 days

0

76

Husqvarna 532183513

SCREW

$4.99

$

Usually ships in 3-10 days

0
