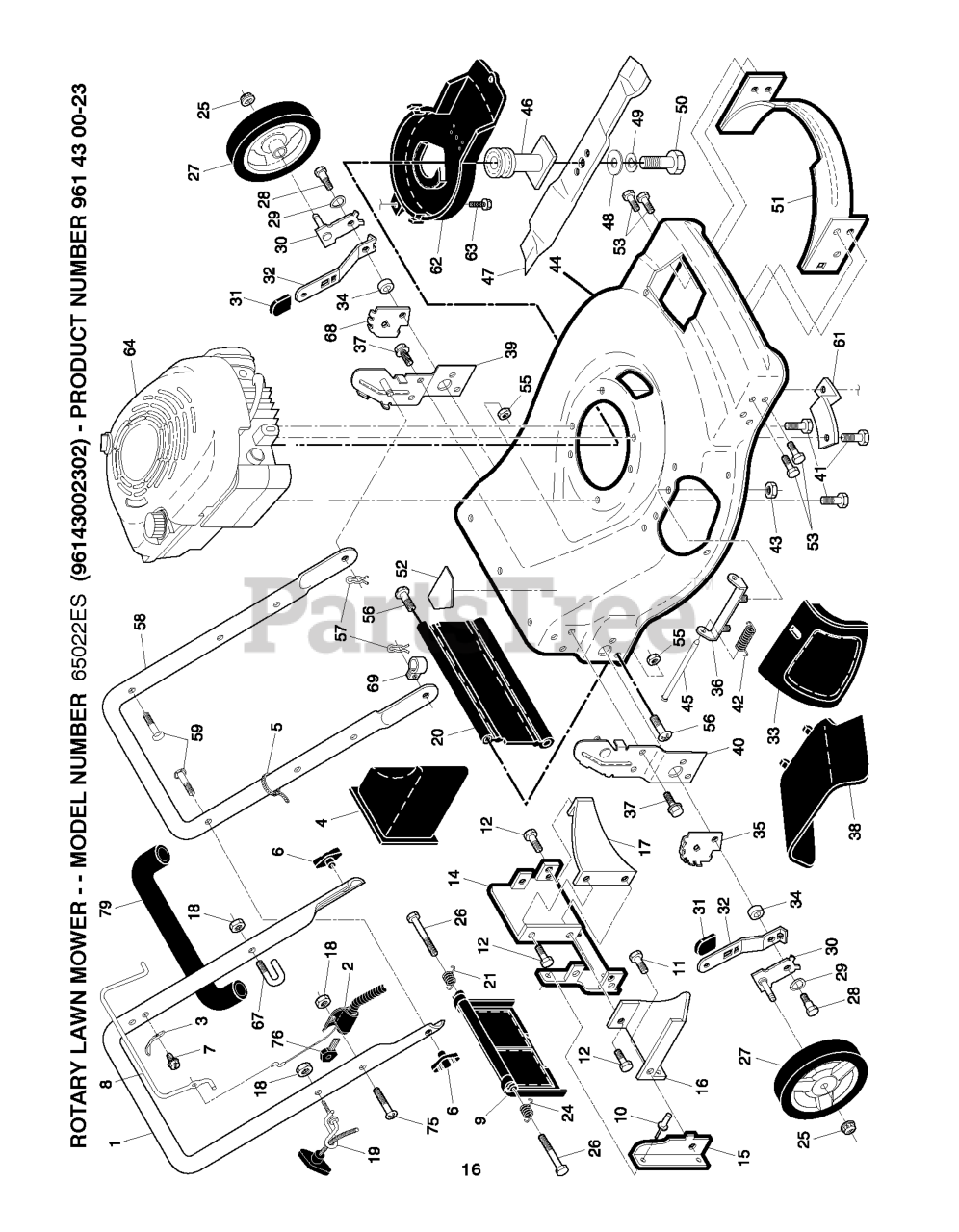

65022 ES - Husqvarna 22" Walk-Behind Mower (2008-01) FRAME Parts Diagram

22" Walk-Behind Mower

FRAME Parts Diagram

  • Title

4

Husqvarna 532166649

PLUG.MULCH.22RD

$

$

Not available

17

Husqvarna 532148941

REAR BAFFLE
(Superseded to 532140661)

$

$

Not available

52

Husqvarna 532404763

DANGER DECAL
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

28

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532405421

SPRING.LH.22.REAR.DOOR.EZ.EMPT

Note: LH

$4.99

$

In Stock, only 1 left!

0

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

34

Husqvarna 532401629

SPACER.HEIGHT.ADJUSTER

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532413183

WHEEL AND TIRE ASSY, REAR
(Superseded to 532401272)

$31.99

$

In Stock, only 2 left!

0

79

Husqvarna 532186362

GRIP, FOAM

$12.99

$

In Stock, only 3 left!

0

45

Husqvarna 532175650

ROD.HINGE.21

$7.49

$

In Stock, Qty 20+

0

1

Husqvarna 532199983

HANDLE.ASM.UP.CREASED.GRAY
(Superseded to 532427663)

Note: Includes Foam Grip

$46.99

$

Usually ships in 3-10 days

0

32

Husqvarna 532406428

SELECTOR SPRING, FRONT
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 532411334

SIDE BAFFLE
(Superseded to 532410545)

$7.49

$

Usually ships in 3-10 days

0

68

Husqvarna 532410623

WHEEL ADJUSTING BRACKET LH
(Superseded to 532407493)

Note: LH

$4.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$3.99

$

In Stock, Qty 20+

0

14

Husqvarna 532197076

PLATE.BACK
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

25

Husqvarna 532409148

NUT.HEX.FLANGE.3/8-16.LO(3 2)
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

9

Husqvarna 532408492

REAR DOOR ASSY
(Superseded to 532401813)

$15.99

$

Usually ships in 3-10 days

0

58

Husqvarna 532403433

HANDLE.LOWER.PNT
(Superseded to 583757501)

$

$

Not available

7

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

55

Husqvarna 873930600

LOCKNUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532196401

KNOB.DELUXE.GRAY

$4.99

$

In Stock, only 2 left!

0

50

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

39

NEEDS DESCRIPTION

Note: LH

$

$

Not available

6

Husqvarna 532191856

HNDL.KNOB.GRAY
(Superseded to 532189713)

$3.99

$

In Stock, Qty 20+

0

56

Husqvarna 532088652

HINGE SCREW

$7.49

$

In Stock, only 1 left!

0

26

Husqvarna 532184193

BOLT

$

$

Not available

29

Husqvarna 532401630

WASHER.CURVED.CYLINDRICAL

$3.99

$

Usually ships in 3-10 days

0

41

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

69

Husqvarna 532197991

CLIP.CABLE.BLK

$7.49

$

In Stock, Qty 9

0

18

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532170031

FRONT BAFFLE KIT

$

$

Not available

67

Husqvarna 532401607

CLIP.WIREFORM.PACK.TOR

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 532194788

RB GUIDE.ROPE.STD.BLK.ZIN WSL
(Superseded to 586122501)

$18.99

$

In Stock, Qty 8

0

11

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

In Stock, only 1 left!

0

47

Husqvarna 532406713

BLADE.22.MULCH.STANDARD

$14.99

$

In Stock, Qty 20+

0

35

Husqvarna 532410624

WHEEL ADJUSTING BRACKET
(Superseded to 532407492)

Note: RH

$4.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532193000

SPRING.TORSION

$7.49

$

In Stock, Qty 20+

0

46

Husqvarna 532189179

BLADE ADAPTOR / PULLEY
(Superseded to 532421176)

$18.99

$

In Stock, Qty 8

0

8

Husqvarna 532413185

BAIL.MZR.CREA.ORANGE

$34.99

$

In Stock, only 3 left!

0

62

Husqvarna 532405843

DEBRIS SHIELD
(Superseded to 585472601)

$31.99

$

In Stock, only 3 left!

0

2

Husqvarna 532189686

KIT.CONTROL.COMBI.KEYW/HARNESS

Note: Includes Key

$47.99

$

In Stock, Qty 6

0

10

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$7.49

$

In Stock, only 2 left!

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

76

Husqvarna 532180331

KEY.MOLDED

$8.99

$

In Stock, Qty 12

0

53

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

24

Husqvarna 532405423

SPRING.RH.22.REAR.DOOR.EZ.

Note: RH

$4.99

$

In Stock, only 1 left!

0

30

Husqvarna 532407871

AXLE ARM ASSY.
(Superseded to 532401179)

$7.49

$

Usually ships in 3-10 days

0

61

Husqvarna 532190939

BRACKET
(Superseded to 532188839)

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532186159

SCREW.(COMBINATION CONTROL)

$4.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532192325

SCREW.HEX.WSH

$6.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532054583

SCREW

$

$

Not available

33

Husqvarna 532197029

DOOR.MULCH.22.REAR.FWGD.GREY

$13.99

$

In Stock, only 2 left!

0

37

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 874780512)

$3.99

$

In Stock, Qty 20+

0

16

Husqvarna 532177133

DISCHARGE BAFFLE
(Superseded to 532176655)

$

$

Not available

20

Husqvarna 532413160

SKIRT.REAR.22RD/SD.FO/VE

$12.99

$

In Stock, Qty 8

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

38

Husqvarna 532403819

DEFLECTOR.CLIPPING.22.GREY

$

$

Not available
