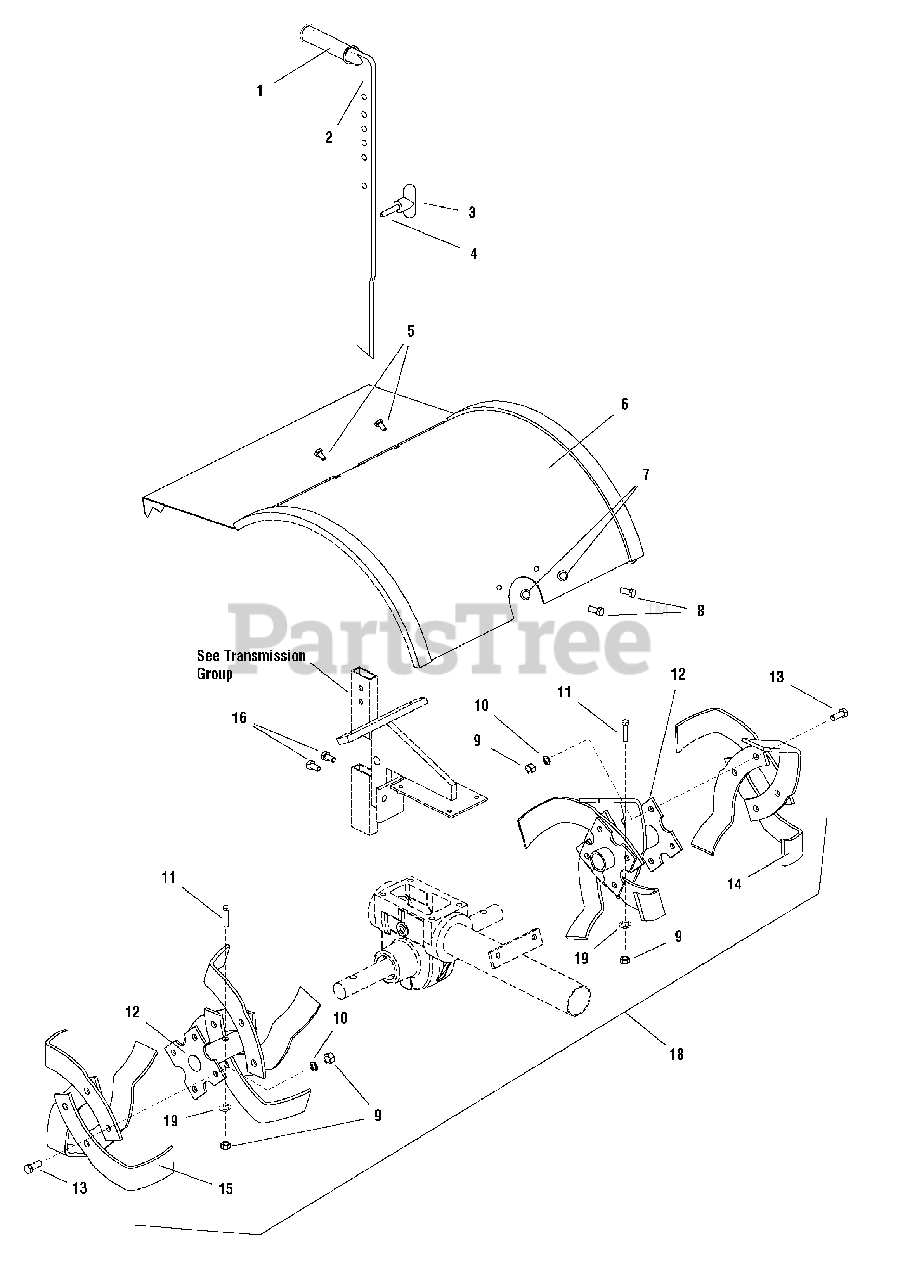

6516 RT (1693848) - Simplicity Rear-Tine Tiller, 6hp Hood, Drag Stake & Tine Group Parts Diagram

Rear-Tine Tiller, 6hp

Hood, Drag Stake & Tine Group Parts Diagram

  • Title

1

Simplicity 1719038SM

HANDLE GRIP

$14.99

$

In Stock, only 2 left!

0

2

Simplicity 1716745SM

LEVER, Drag Stake

$

$

Not available

3

Simplicity 1716743SM

KNOB, T Handle, Drag Stake

$18.99

$

Usually ships in 2-12 days

0

4

Simplicity 1716742SM

PIN, DETENT 5/16"-18 x 1"

$10.99

$

Usually ships in 2-12 days

0

5

Simplicity 1921958SM

CAPSCREW, Hex Head 1/4"-20 x 1/2" G5
(Superseded to 703818)

$3.49

$

In Stock, only 1 left!

0

6

Simplicity 1722329SM

HOOD, Tiller, No Decal
(Superseded to 1721512SM)

$213.99

$

Usually ships in 2-12 days

0

7

Simplicity 1935048SM

NUT, Hex Flange 5/16"-18 Two, Way Lock GA
(Superseded to 704067)

$3.99

$

In Stock, Qty 20+

0

8

Simplicity 1920787SM

CAPSCREW, Hex Head 5/16"-18 x 1/2" G5
(Superseded to 704317)

$4.49

$

Usually ships in 2-12 days

0

9

Simplicity 1916950SM

NUT, Hex 3/8"-16NC, 2B
(Superseded to 703577)

$4.49

$

In Stock, only 4 left!

0

10

Simplicity 1916965SM

LOCKWASHER, Spring 3/8"
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

11

Simplicity 1921971SM

CAPSCREW, Hex Head 3/8"-16 x 1-3/4"
(Superseded to 5025013X14SM)

$4.49

$

In Stock, only 3 left!

0

12

Simplicity 1716741SM

HOLDER, Tine Blade Left and Right

$70.99

$

Usually ships in 2-12 days

0

13

Simplicity 1921210SM

CAPSCREW, Hex Head 3/8"-16 x 1" G5
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 2 left!

0

14

Simplicity 1716739SM

TINE BLADE, Left Side

$35.99

$

Usually ships in 2-12 days

0

15

Simplicity 1716737SM

TINE BLADE, Right Side

$24.99

$

Usually ships in 2-12 days

0

16

Simplicity 1716701SM

BOLT, Hex Flange Head 5/16"-18 x 1/2"

$

$

Not available

18

Simplicity 1716749SM

REPLACEMENT KIT, Tine Blade Holder & Tines

Note: (Includes Ref. 9, 10, 11, 12, 13, 14, and 15)

$

$

Not available

19

Simplicity 1916965SM

LOCKWASHER, Spring. 3/8
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0
