6521 RS (954222732-A) - Husqvarna Walk-Behind Mower (2001-01) REPAIR PARTS Parts Diagram

Walk-Behind Mower

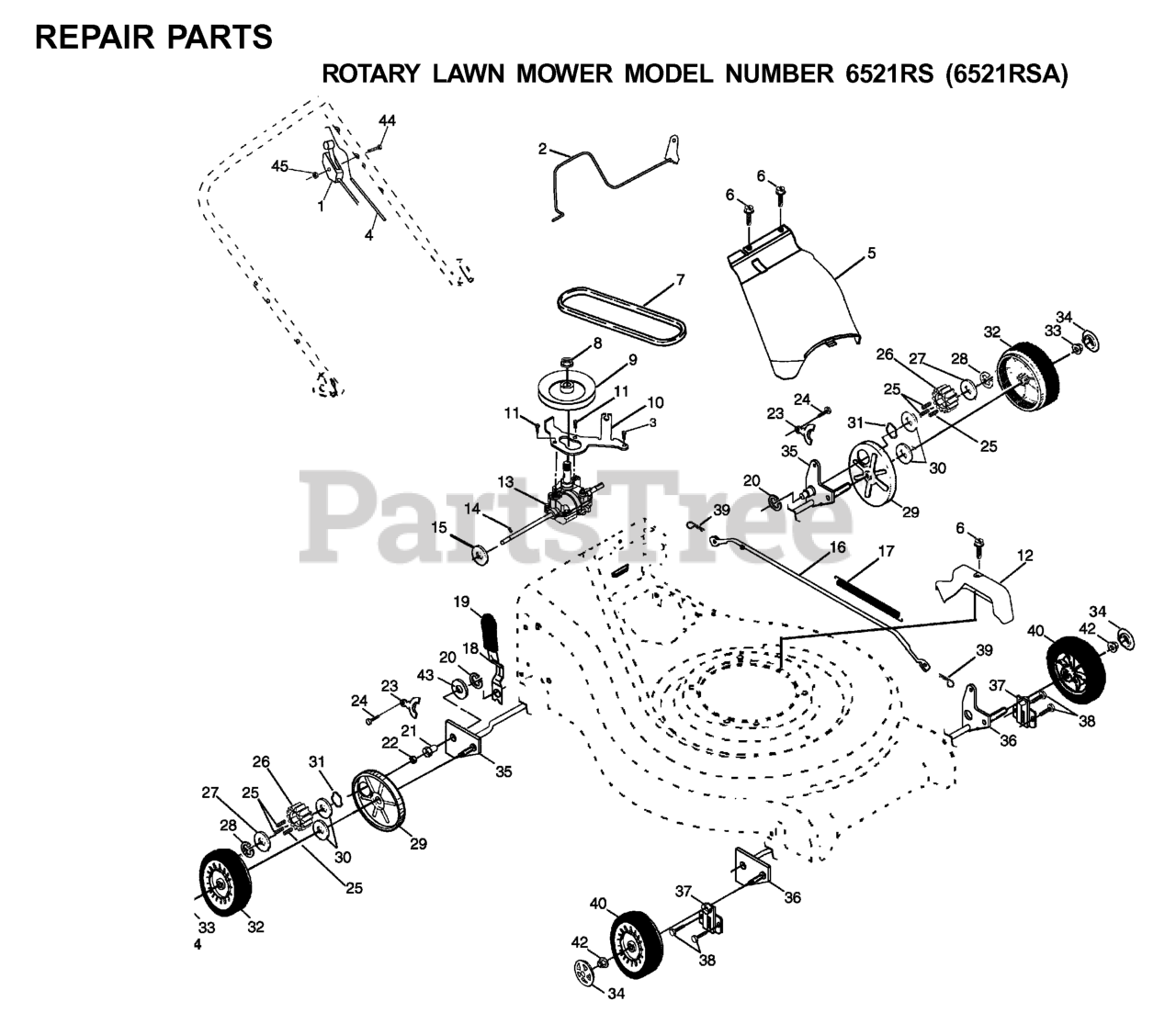

REPAIR PARTS Parts Diagram

  • Title

13

Husqvarna 532166388

TRANSMISSION ASM.

$

$

Not available

34

Husqvarna 532077400

CAP.HUB.BLACK.WALK

$7.49

$

In Stock, only 2 left!

0

3

Husqvarna 817060408

SCREW

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 532164555

BRACKET
(Superseded to 532161118)

$4.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532161584

ROD CONNECTING
(Superseded to 532414284)

$40.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532067725

WASHER FLUT

$7.49

$

In Stock, Qty 20+

0

25

Husqvarna 532170011

PAWL.DRIVE.ETCHED

$

$

Not available

43

Husqvarna 819572216

WASHER.ZINC.PLATED

$6.49

$

Usually ships in 3-10 days

0

38

Husqvarna 532163409

SCREW

$7.49

$

In Stock, Qty 12

0

7

Husqvarna 532166060

V-BELT

$36.99

$

Usually ships in 3-10 days

0

35

Husqvarna 532164552

SHAFT ASSY
(Superseded to 532160785)

$36.99

$

Usually ships in 3-10 days

0

22

Husqvarna 532169911

BEARING, BALL

$

$

Not available

10

Husqvarna 532177654

BELT KEEPER BRKT
(Superseded to 532166021)

$

$

Not available

26

Husqvarna 532166450

PINION.DRIVE.WALK

$10.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532145354

PIN.SPRING.THRUST

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532166189

PIVOT ROD COVER

$

$

Not available

15

Husqvarna 532057079

THRUST WASHER

$6.49

$

In Stock, Qty 19

0

17

Husqvarna 532161602

SPRING
(Superseded to 532409616)

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 532750634

SCREW

$6.49

$

In Stock, Qty 6

0

29

Husqvarna 532088080

DUST SHROUD PM
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532052160

WASHER

$

$

Not available

33

Husqvarna 532145212

NUT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 532163365

RP BEARING SUPPORT
(Superseded to 532169920)

$

$

Not available

44

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

20

Husqvarna 812000022

E-RING

$6.99

$

Usually ships in 3-10 days

0

11

Husqvarna 817541011

Screw, Hex Washer Head #10-24 x .668

$

$

Not available

18

Husqvarna 532164554

SPRING
(Superseded to 532160477)

$

$

Not available

45

Husqvarna 532751152

LOCK NUT
(Superseded to 532191730)

$7.49

$

In Stock, Qty 6

0

42

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

37

Husqvarna 532161463

RETAINER.FRONT.SHAFT

$

$

Not available

9

Husqvarna 532166049

PULLEY DRIVEN

$10.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532161537

DRIVE COVER
(Superseded to 532400783)

$12.99

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-RING 7/16 RE

$3.99

$

In Stock, Qty 20+

0

4

Husqvarna 532170050

DRIVE CABLE
(Superseded to 532179049)

$

$

Not available

19

Husqvarna 532161961

KNOB
(Superseded to 532189808)

$

$

Not available

36

Husqvarna 532164550

SHAFT ASSY
(Superseded to 532407175)

$27.99

$

Usually ships in 3-10 days

0

39

Husqvarna 532700279

RETAINER CLIP

$6.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532057808

SCREW

$

$

Not available

31

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0
