6521 RS (961450005-00) - Husqvarna Walk-Behind Mower (2007-09) Rotary Lawn Mower (Part 2) Parts Diagram

Walk-Behind Mower

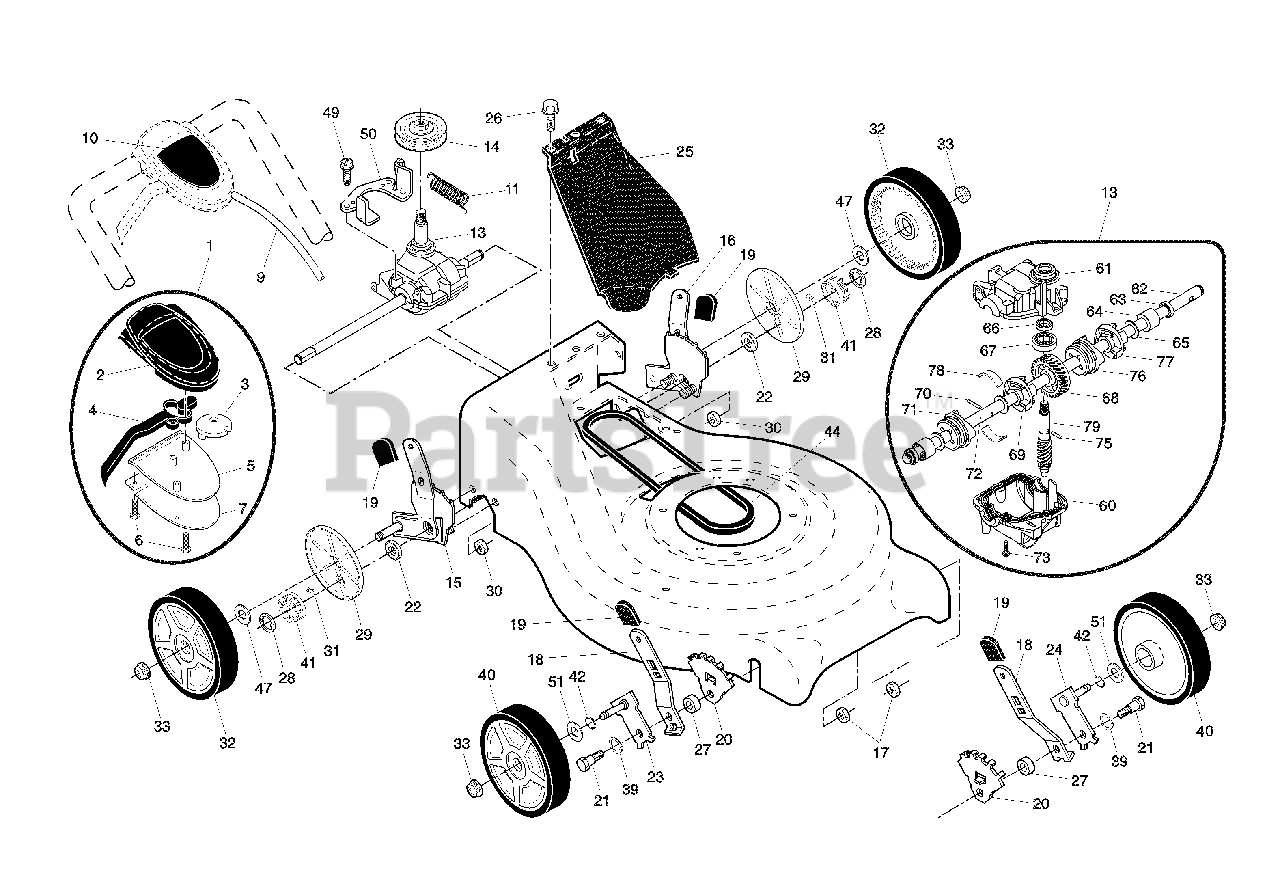

Rotary Lawn Mower (Part 2) Parts Diagram

  • Title

1

Husqvarna 532407344

Drive Control Assembly
(Superseded to 532425581)

Note: Includes Cable

$

$

Not available

2

Husqvarna 532413542

Cover, Top, Drive Control

$15.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532406262

Pulley

$

$

Not available

4

Husqvarna 532190039

Lever, Drive Control
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 532413541

Cover, Bottom, Drive Control

$18.99

$

Usually ships in 3-10 days

0

6

Husqvarna 532181698

Screw, Phillips Head #10 x 5/8

$7.49

$

In Stock, Qty 6

0

7

Husqvarna 532400723

Mounting Bracket, Drive Control

$

$

Not available

9

Husqvarna 532406258

Cable, Drive Control

$53.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532189378

Decal, Drive Control

$36.99

$

In Stock, only 1 left!

0

11

Husqvarna 532406558

Spring

$8.99

$

In Stock, Qty 20+

0

13

Husqvarna 532404844

Gear Case Assembly, Complete

$103.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532193443

Pulley, Drive

$17.99

$

Usually ships in 3-10 days

0

15

Husqvarna 532409073

Kit, Wheel Adjuster Assembly, RH
(Superseded to 583531701)

Note: Includes Knob and Bearing

$28.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532409074

Kit, Wheel Adjuster Assembly, LH
(Superseded to 532438467)

Note: Includes Knob and Bearing

$40.99

$

Usually ships in 3-10 days

0

17

Husqvarna 532166785

Nut, Hex
(Superseded to 532426589)

$6.49

$

In Stock, Qty 18

0

18

Husqvarna 532406428

Spring Selector
(Superseded to 532401621)

$4.99

$

In Stock, Qty 11

0

19

Husqvarna 532196401

Knob, Selector Spring

$4.99

$

In Stock, only 2 left!

0

20

Husqvarna 532410594

Bracket, Wheel Adjusting
(Superseded to 532407494)

$4.99

$

In Stock, only 2 left!

0

21

Husqvarna 532401638

Bolt, Shoulder, Hex Head
(Superseded to 596203801)

$3.99

$

In Stock, Qty 11

0

22

Husqvarna 532191039

Bearing, Ball
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 532406690

Axle Arm Assembly, RH
(Superseded to 532401175)

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532406689

Axle Arm Assembly, LH
(Superseded to 532401174)

$

$

Not available

25

Husqvarna 532400783

Cover Drive

$12.99

$

Usually ships in 3-10 days

0

26

Husqvarna 532750634

Screw, Threaded, Rolled #10-25 x 1/2

$6.49

$

In Stock, Qty 6

0

27

Husqvarna 532401629

Spacer

$6.49

$

Usually ships in 3-10 days

0

28

Husqvarna 812000058

E-Ring 7/16

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 532189403

Cover, Dust, Wheel
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 873800400

Nut, Hex
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 532404845

Pawl

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532413143

Wheel & Tire Assembly, Rear
(Superseded to 532405744)

$

$

Not available

33

Husqvarna 532409148

Nut, Hex, Flangelock 3/8-16
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

34

Husqvarna 532404835

Gear

$6.49

$

In Stock, Qty 20+

0

39

Husqvarna 532401630

Washer, Curved, Cylindrical

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532198011

Wheel & Tire Assembly, Front 8 x 2
(Superseded to 532197972)

$21.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

44

Husqvarna 532406580

V-Belt

$30.99

$

In Stock, only 4 left!

0

47

Husqvarna 532067725

Washer 1/2 x 1-1/2 x .134

$7.49

$

In Stock, Qty 20+

0

49

Husqvarna 532163409

Screw, Hi-Lo Thread #12 x 5/8

$7.49

$

In Stock, Qty 13

0

50

Husqvarna 532413104

Belt Keeper
(Superseded to 532404832)

$

$

Not available

51

Husqvarna 532088348

Washer, Flat 1/2

$7.49

$

In Stock, only 4 left!

0

60

Husqvarna 532412747

Case, Lower

$15.99

$

Usually ships in 3-10 days

0

61

Husqvarna 532412736

Case, Upper

$15.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532412745

Shaft, Output, Long

$

$

Currently unavailable

63

Husqvarna 532183508

Seal, Output Shaft

$6.49

$

In Stock, only 2 left!

0

64

Husqvarna 532183511

Bushing

$4.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532183514

Seal, Worm Shaft

$7.49

$

In Stock, only 2 left!

0

67

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532412742

Gear, 28 Teeth

$8.99

$

Usually ships in 3-10 days

0

69

Husqvarna 532412739

Fixed Dog Clutch, LH

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532412741

Pin, Output Shaft

$7.49

$

Usually ships in 3-10 days

0

71

Husqvarna 532412740

Movable Dog Clutch, LH

$4.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532412738

Shaft, Output, Short

$

$

Currently unavailable

73

Husqvarna 532183513

Screw, Case

$4.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532412746

Pin, Worm Shaft

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532412744

Fixed Dog Clutch, RH

$4.99

$

Usually ships in 3-10 days

0

77

Husqvarna 532412743

Movable Dog Clutch, RH

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532410731

Spring, Leaf

$4.99

$

Usually ships in 3-10 days

0

79

Husqvarna 532412737

Shaft, Worm

$14.99

$

Usually ships in 3-10 days

0
