6522 SH (954222718) - Husqvarna Walk-Behind Mower (2001-11) REPAIR PARTS Parts Diagram

Walk-Behind Mower

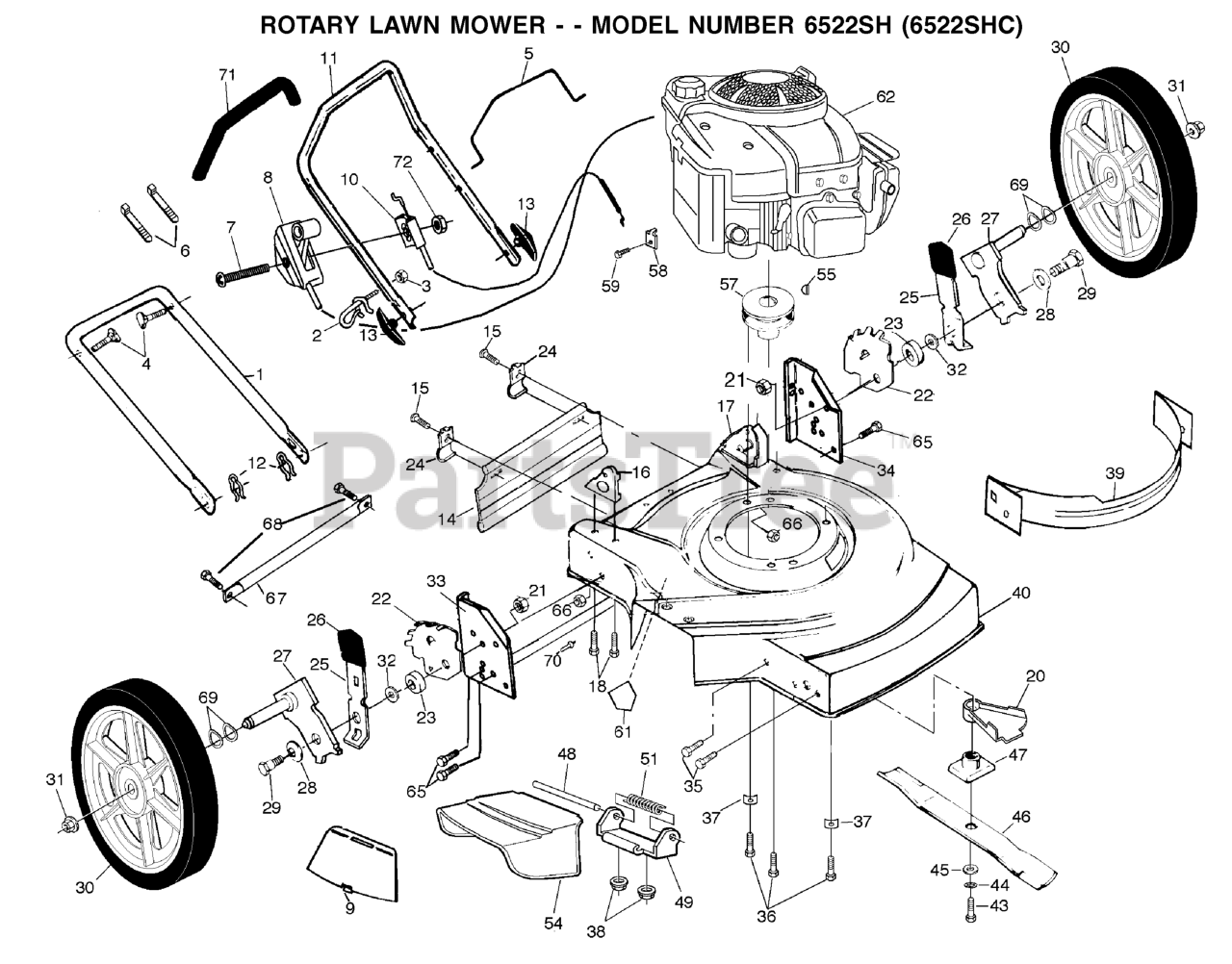

REPAIR PARTS Parts Diagram

  • Title

13

Husqvarna 532136376

HANDLE KNOB
(Superseded to 532183724)

$

$

Not available

66

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532144929

SCREW 1/4-20 X 2.12
(Superseded to 532158755)

$

$

Not available

4

Husqvarna 532131959

HANDLE BOLT
(Superseded to 532183724)

$

$

Not available

68

Husqvarna 532054583

SCREW

$

$

Not available

61

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532170975

HANDLE BRACKET ASM. RH
(Superseded to 532170345)

$7.49

$

Usually ships in 3-10 days

0

57

Husqvarna 532084596

ENGINE.PULLEY.FWG

$34.99

$

In Stock, only 2 left!

0

14

Husqvarna 532140540

REAR SKIRT
(Superseded to 532413160)

$12.99

$

In Stock, Qty 7

0

72

Husqvarna 532132004

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532063601

NUT
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 532850778

DISCHARGE GUARD

$

$

Not available

- -

Husqvarna 532125381

AIR CONDUCTOR

$

$

Not available

17

Husqvarna 532170977

HANDLE BRACKET ASM. LH
(Superseded to 532170346)

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 532125207

BRACKET DEFL PM
(Superseded to 532192301)

$

$

Not available

31

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

20

Husqvarna 532134612

DEBRIS SHIELD
(Superseded to 532048283)

$

$

Not available

12

Husqvarna 532051793

HAIRPIN COTTER

$7.49

$

In Stock, only 1 left!

0

22

Husqvarna 532155047

WHEEL ADJ BRKT
(Superseded to 532700325)

$4.99

$

In Stock, only 1 left!

0

- -

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

$1.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532141114

BLADE 22"

$21.99

$

In Stock, only 1 left!

0

23

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$6.49

$

In Stock, only 3 left!

0

58

Husqvarna 532213146

WASHER
(Superseded to 532125078)

$

$

Not available

26

Husqvarna 532087877

KNOB

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 532750097

TAPPING SCREW
(Superseded to 817021008)

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 532851514

BLADE ADAPTOR

$17.99

$

In Stock, Qty 20+

0

25

Husqvarna 532141730

SELECTOR SPRING
(Superseded to 532700331)

$4.99

$

In Stock, Qty 11

0

29

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 532851084

SCREW, HEX HD 3/8-24 X 1-3/8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

51

Husqvarna 532087589

SPRING PM

$6.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532125444

REPL BY 532 12 54-20
(Superseded to 532751772)

$

$

Not available

21

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532130861

CABLE.MZR.51.RT.SP./PU.

$12.99

$

Usually ships in 3-10 days

0

37

Husqvarna 532125078

WASHER.ENGINE.BZP

$

$

Not available

71

Husqvarna 532164265

GRIP.HANDLE.FOAM
(Superseded to 585161003)

$

$

Not available

39

Husqvarna 532170031

FRONT BAFFLE KIT

$

$

Not available

35

Husqvarna 817600406

SCREW 1/4X20

$6.49

$

In Stock, Qty 5

0

44

Husqvarna 532850263

LOCKWASHER
(Superseded to 810040600)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

In Stock, Qty 10

0

48

Husqvarna 532147286

ROD.HINGE.COMBI-C

$8.99

$

In Stock, Qty 12

0

65

Husqvarna 874760612

BOLT

$4.99

$

In Stock, Qty 17

0

11

Husqvarna 532178067

UPPER HANDLE
(Superseded to 532166862)

$84.99

$

Usually ships in 3-10 days

0

59

Husqvarna 532083816

SCREW.HEX.HEAD.WASHER.10-16

$6.49

$

Usually ships in 3-10 days

0

70

Husqvarna 532128415

RIVET BLIND

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 532166971

THROTTLE CONTROL
(Superseded to 532182157)

$

$

Not available

18

Husqvarna 532149741

SCREW.5/16-18X3/4
(Superseded to 532171877)

$7.49

$

In Stock, Qty 5

0

69

Husqvarna 532057143

WAVE WASHER
(Superseded to 532428450)

$7.99

$

In Stock, only 2 left!

0

45

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

55

Husqvarna 532087677

HI PRO KEY PM WSL

$

$

Not available

32

Husqvarna 532088348

WASHER.FLAT.1/2

$7.49

$

In Stock, only 4 left!

0

49

Husqvarna 532087593

BRACKET PM

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$18.99

$

In Stock, Qty 7

0

1

Husqvarna 532153605

LOWER HANDLE
(Superseded to 532175245)

$

$

Not available

6

Husqvarna 532066426

TIE GUIDE
(Superseded to 532124756)

$6.49

$

Usually ships in 3-10 days

0
