6522 SH (961430009-00) - Husqvarna Walk-Behind Mower (2005-01) Handle & Deck Assembly Parts Diagram

Walk-Behind Mower

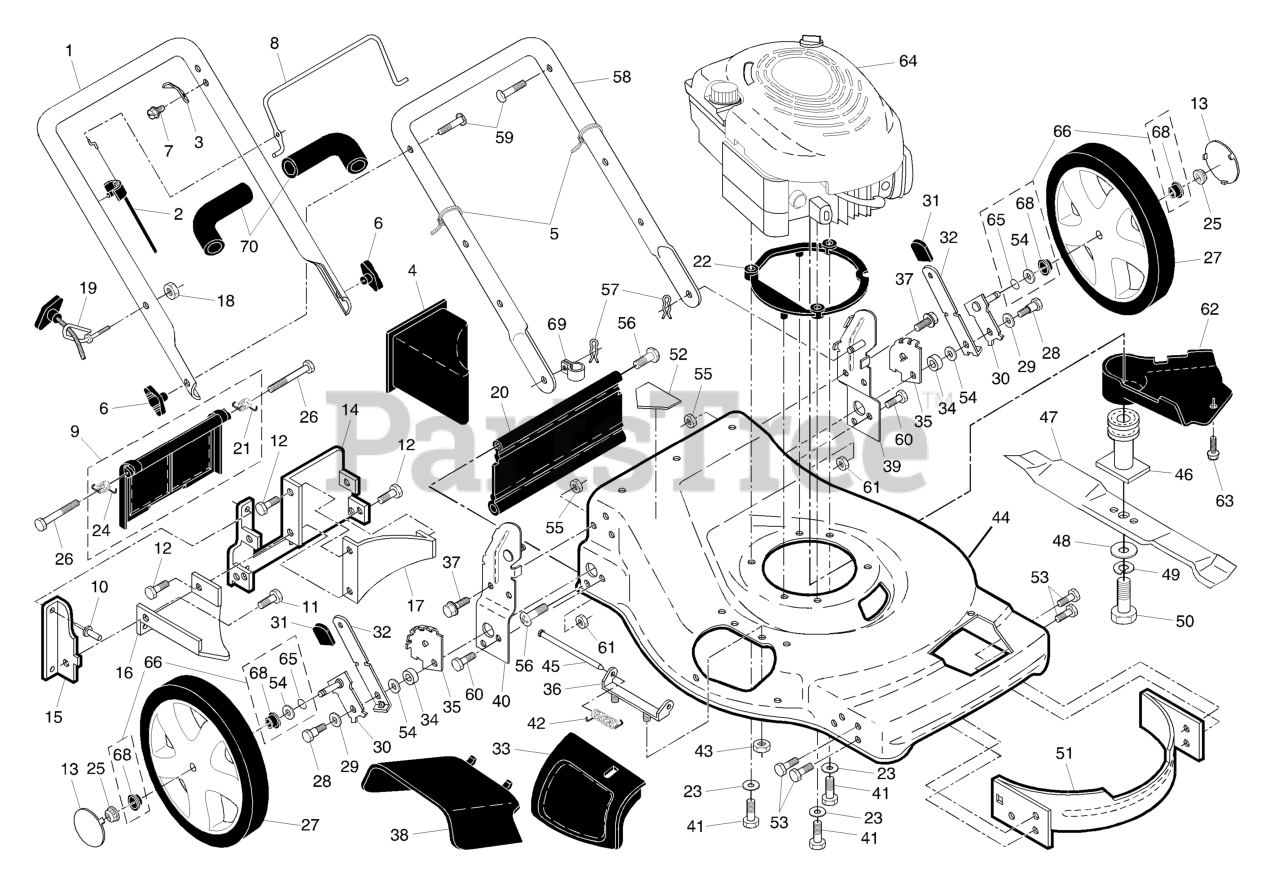

Handle & Deck Assembly Parts Diagram

  • Title

1

Husqvarna 532189740

HANDLE.UP.ASM.DSTRT/FLT

Note: (Includes Foam Grip)

$

$

Not available

2

Husqvarna 532183567

CABLE.ENGINE BRAKE.MZR

$20.99

$

In Stock, Qty 20+

0

3

Husqvarna 532125162

BRACKET UPSTOP
(Superseded to 532850733)

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532166649

PLUG.MULCH.22RD

$

$

Not available

5

Husqvarna 532066426

TIE GUIDE
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

6

Husqvarna 532191856

HNDL.KNOB.GRAY
(Superseded to 532185577)

$9.49

$

In Stock, Qty 20+

0

7

Husqvarna 532750634

SCREW

$3.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532190620

BAIL, FLAT AUTO WALK
(Superseded to 532187940)

$

$

Not available

9

Husqvarna 532193679

KIT.DOOR.ASM.REAR.PLAZ.22

Note: (Includes Springs)

$26.99

$

In Stock, only 1 left!

0

10

Husqvarna 532128415

RIVET BLIND

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532150050

SCREW.HXTAP.10-24

$4.99

$

Usually ships in 3-10 days

0

12

Husqvarna 532054583

SCREW

$

$

Not available

13

Husqvarna 532191853

HUBCAP
(Superseded to 532150635)

$

$

Not available

14

Husqvarna 532197076

PLATE.BACK
(Superseded to 532195622)

$

$

Not available

15

Husqvarna 532138860

SIDE BAFFLE

$

$

Not available

16

Husqvarna 532177133

DISCHARGE BAFFLE
(Superseded to 532176655)

$

$

Not available

17

Husqvarna 532148941

REAR BAFFLE
(Superseded to 532140661)

$

$

Not available

18

Husqvarna 532132004

NUT
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532179585

ROPE, GUIDE
(Superseded to 586122501)

$9.49

$

In Stock, only 3 left!

0

20

Husqvarna 532189008

SKIRT
(Superseded to 532413160)

$13.99

$

In Stock, Qty 9

0

21

Husqvarna 532170938

DOOR SPRING LH

$

$

Not available

22

Husqvarna 532701313

SPACER

$

$

Not available

23

Husqvarna 532053998

WASHER

$

$

Not available

24

Husqvarna 532170939

DOOR SPRING RH

$

$

Not available

25

Husqvarna 532083923

HEX FLANGE LOCKNT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

26

Husqvarna 532184193

BOLT

$

$

Not available

27

Husqvarna 532180552

WHEEL.14X2.PR.RADII.SILV.MAG.B

$68.99

$

In Stock, only 2 left!

0

28

Husqvarna 532142748

BOLT
(Superseded to 532174719)

$10.99

$

In Stock, Qty 10

0

29

Husqvarna 532061651

WASHER
(Superseded to 532401630)

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 532162233

AXLE ARM ASM
(Superseded to 532750913)

$

$

Not available

31

Husqvarna 532190622

KNOB, SELECTOR SPRING
(Superseded to 532189808)

$

$

Not available

32

Husqvarna 532177132

SELECTOR SPRING
(Superseded to 532198456)

$

$

Not available

33

Husqvarna 532197029

DOOR.MULCH.22.REAR.FWGD.GREY

$13.99

$

In Stock, only 1 left!

0

34

Husqvarna 532146630

RP SPACER HT ADJ
(Superseded to 532401629)

$3.99

$

In Stock, Qty 20+

0

35

Husqvarna 532155047

WHEEL ADJ BRKT
(Superseded to 532700325)

$

$

Not available

36

Husqvarna 532175735

BRACKET.ASM.HINGE.21.FWGD.

$

$

Not available

37

Husqvarna 532150078

SELF-TAPPING SCREW 5/16-18X3/4
(Superseded to 532428867)

$5.99

$

In Stock, Qty 20+

0

38

Husqvarna 532197030

DEFLECTOR,CLIPPING
(Superseded to 532402574)

$

$

Not available

39

Husqvarna 532197151

BRKT.ASM.HND
(Superseded to 532195914)

$13.99

$

In Stock, only 1 left!

0

40

Husqvarna 532197150

BRKT.ASM.HND
(Superseded to 532195915)

$

$

Not available

41

Husqvarna 532850999

SCREW

$5.99

$

In Stock, only 2 left!

0

42

Husqvarna 532193000

SPRING.TORSION

$7.99

$

In Stock, Qty 20+

0

43

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

44

Husqvarna 532196398

HOUSING.22.EZ.FWD.ORANGE.WALK

Note: (Includes Key Numbers 14, 15 and 51)

$

$

Not available

45

Husqvarna 532175650

ROD.HINGE.21

$5.99

$

In Stock, Qty 13

0

46

Husqvarna 532187037

ADAPTER.BLADE/PULLEY 25MM FGD

$

$

Not available

47

Husqvarna 532141114

BLADE 22"

$28.99

$

In Stock, only 3 left!

0

48

Husqvarna 532851074

WASHER,HARDEN

$4.99

$

In Stock, Qty 20+

0

49

Husqvarna 532850263

LOCKWASHER
(Superseded to 539990118)

$3.99

$

In Stock, Qty 20+

0

50

Husqvarna 532179617

BOLT.BLADE

$5.99

$

Usually ships in 3-10 days

0

51

Husqvarna 532170031

FRONT BAFFLE KIT

$

$

Not available

52

Husqvarna 532107339

DECAL HYT
(Superseded to 581579101)

$3.49

$

Usually ships in 3-10 days

0

53

Husqvarna 817600406

SCREW 1/4X20

$3.49

$

In Stock, only 2 left!

0

54

Husqvarna 532088348

WASHER.FLAT.1/2

$3.49

$

In Stock, Qty 16

0

55

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

56

Husqvarna 532088652

HINGE SCREW

$3.99

$

In Stock, Qty 11

0

57

Husqvarna 532051793

HAIRPIN COTTER

$

$

Not available

58

Husqvarna 532155044

LOWER HANDLE
(Superseded to 532151590)

$

$

Not available

59

Husqvarna 532191574

BOLT, HANDLE 5/16-18X1.75

$6.99

$

In Stock, Qty 20+

0

60

Husqvarna 874760612

BOLT

$3.49

$

In Stock, Qty 12

0

61

Husqvarna 532751592

LOCKNUT PM
(Superseded to 873680600)

$

$

Not available

62

Husqvarna 532196048

Debris Shield

$

$

Currently unavailable

63

Husqvarna 532192325

SCREW.HEX.WSH

$5.99

$

In Stock, only 2 left!

0

64

Engine, Briggs & Stratton, Model Number 123K02

Note: (Order parts from Engine manufacturer)

$

$

Not available

65

Husqvarna 532188152

O-RING
(Superseded to 532197480)

$4.99

$

In Stock, Qty 20+

0

66

Husqvarna 532193498

KIT.BUSHING.WHEEL.14"

$

$

Not available

68

Husqvarna 532193696

Bushing, Nylon, Black

$

$

Currently unavailable

69

Husqvarna 532192770

CLIP.CABLE.BLK
(Superseded to 532197991)

$3.99

$

In Stock, Qty 12

0

70

Husqvarna 532182748

GRIP.HANDLE.FOAM.WIDE.(1 SIDE)

$

$

Not available

Husqvarna 532162300

WARNING DECAL
(Superseded to 530402152)

Note: (not shown)

$

$

Not available

Husqvarna 532196402

Owner's Manual, English / French

$4.49

$

Usually ships in 3-10 days

0
