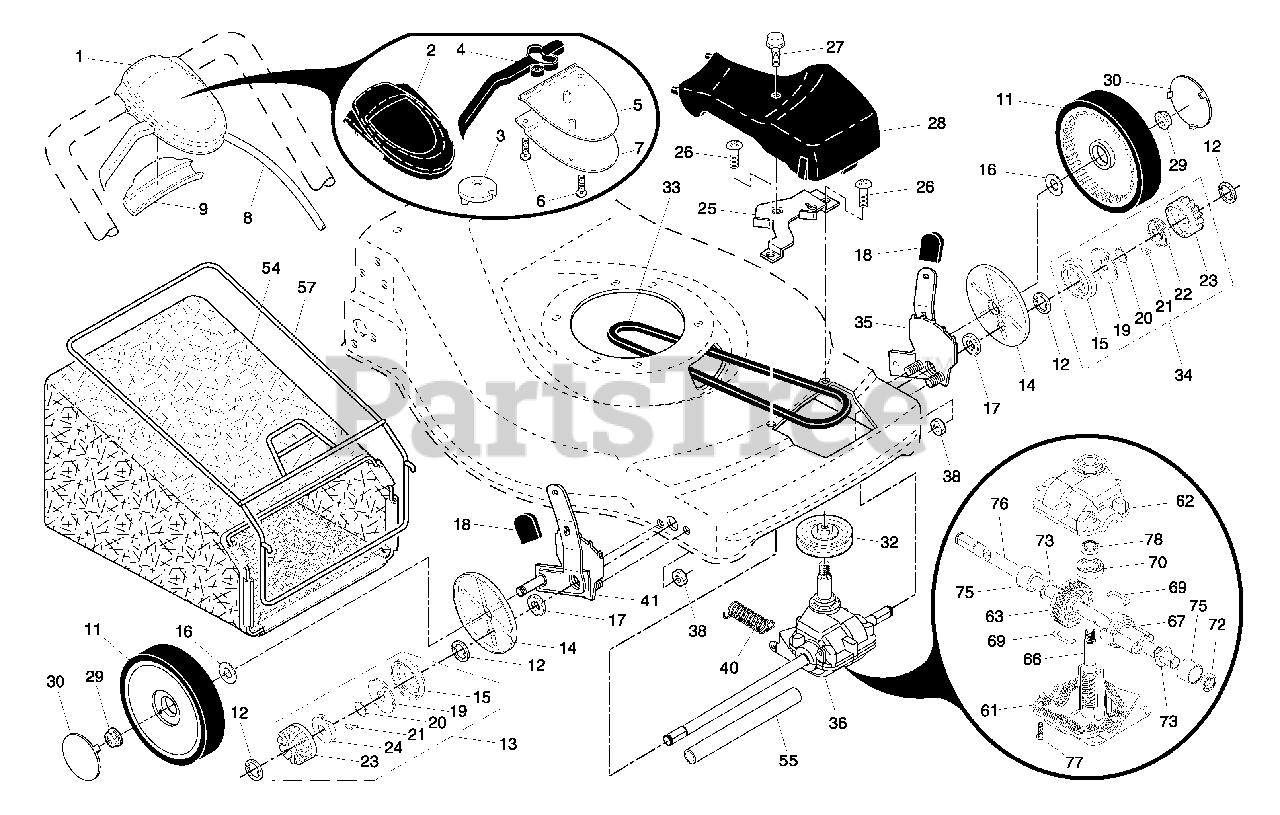

6522 SL (961430008-00) - Husqvarna Walk-Behind Mower (2005-09) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532196272

Drive Control Assembly
(Superseded to 532404142)

Note: (Includes Cable)

$

$

Not available

2

Husqvarna 532195761

Cover, Drive Control, Top
(Superseded to 532414555)

$

$

Not available

3

Husqvarna 532187353

Pulley

$9.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532190039

Lever, Drive Control
(Superseded to 532425583)

$26.99

$

In Stock, only 1 left!

0

5

Husqvarna 532195762

Cover, Drive Control, Bottom
(Superseded to 532414555)

$

$

Not available

6

Husqvarna 532186198

Screw, Torx Head #8 x 5/8

$

$

Not available

7

Husqvarna 532187097

Mounting Bracket, Drive Control
(Superseded to 532400723)

$

$

Not available

8

Husqvarna 532196181

Cable, Drive Control
(Superseded to 532404142)

$

$

Not available

9

Husqvarna 532186297

Cap, Drive Control, Bottom

$7.49

$

Usually ships in 3-10 days

0

11

Husqvarna 532180775

Wheel & Tire Assembly

$34.99

$

In Stock, Qty 18

0

12

Husqvarna 812000058

E-Ring

$3.99

$

In Stock, Qty 20+

0

13

Husqvarna 532188330

Pinion Assembly, RH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

14

Husqvarna 532189403

Dust Cover
(Superseded to 581840401)

$4.99

$

In Stock, Qty 20+

0

15

Husqvarna 532184172

Seal, Friction

$7.49

$

In Stock, only 1 left!

0

16

Husqvarna 532067725

Washer, Flat 3/8

$7.49

$

In Stock, Qty 20+

0

17

Husqvarna 532191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$13.99

$

In Stock, Qty 20+

0

18

Husqvarna 532701037

Selector Knob

$4.99

$

In Stock, Qty 20+

0

19

Husqvarna 532175104

Disc, Drive

$7.49

$

In Stock, only 1 left!

0

20

Husqvarna 532188291

Spring, Torsion

$5.99

$

In Stock, Qty 13

0

21

Husqvarna 532175098

Pawl

$6.49

$

In Stock, Qty 10

0

22

Husqvarna 532175105

Retainer, Drive, LH

$

$

Not available

23

Husqvarna 532175103

Gear, Pinion

$

$

Not available

24

Husqvarna 532175102

Retainer, Drive, RH

$7.49

$

In Stock, only 1 left!

0

25

Husqvarna 532196054

Belt Guide Bracket

$

$

Currently unavailable

26

Husqvarna 532188040

Screw
(Superseded to 532192325)

$6.49

$

Usually ships in 3-10 days

0

27

Husqvarna 532175262

Pan Head Tapping Screw #10-24 x 2-3/4

$7.49

$

In Stock, only 4 left!

0

28

Husqvarna 532197333

Drive Cover
(Superseded to 532197364)

$133.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532145212

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

30

Husqvarna 532180626

Hubcap
(Superseded to 532150182)

$

$

Not available

31

Husqvarna 532132010

Nut, Hex, Flanged
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

32

Husqvarna 532189406

Drive Pulley
(Superseded to 532443262)

$13.99

$

In Stock, only 4 left!

0

33

Husqvarna 532189922

V-Belt

$24.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532188331

Pinion Assembly, LH
(Superseded to 532414860)

$87.99

$

In Stock, only 1 left!

0

35

Husqvarna 532195710

Kit, Wheel Adjuster, LH

Note: (Includes Knob and Bearing)

$

$

Currently unavailable

36

Husqvarna 532189380

Gear Case Assembly, Complete

$103.99

$

Usually ships in 3-10 days

0

38

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 595086601)

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 532182226

Spring
(Superseded to 532406558)

$8.99

$

In Stock, Qty 20+

0

41

Husqvarna 532195107

Kit, Wheel Adjuster, RH
(Superseded to 581497907)

Note: (Includes Knob and Bearing)

$17.99

$

In Stock, Qty 20+

0

54

Husqvarna 532196396

Grassbag Assembly
(Superseded to 532401963)

$120.99

$

In Stock, Qty 5

0

55

Husqvarna 532086012

Driveshaft Cover

$

$

Not available

57

Husqvarna 532189680

Frame, Grassbag

$

$

Not available

61

Husqvarna 532187525

Case, Lower

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$24.99

$

Usually ships in 3-10 days

0

62

Husqvarna 532187526

Case, Upper

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$15.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183499

Gear, 27 Teeth

$17.99

$

In Stock, only 1 left!

0

66

Husqvarna 532187527

Shaft, Input

$

$

Not available

67

Husqvarna 532187528

Spacer

$

$

Not available

69

Husqvarna 532183505

Wire, Formed

$4.99

$

Usually ships in 3-10 days

0

70

Husqvarna 532183506

Bearing, Ball

$8.99

$

Usually ships in 3-10 days

0

72

Husqvarna 532183508

Seal, Output Shaft

$6.49

$

In Stock, only 2 left!

0

73

Husqvarna 532183509

Washer

$6.49

$

Usually ships in 3-10 days

0

75

Husqvarna 532183511

Bushing

$4.99

$

Usually ships in 3-10 days

0

76

Husqvarna 532192877

Shaft, Output

$

$

Currently unavailable

77

Husqvarna 532183513

Screw

$4.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532183514

Seal, Input Shaft

$7.49

$

In Stock, only 2 left!

0
