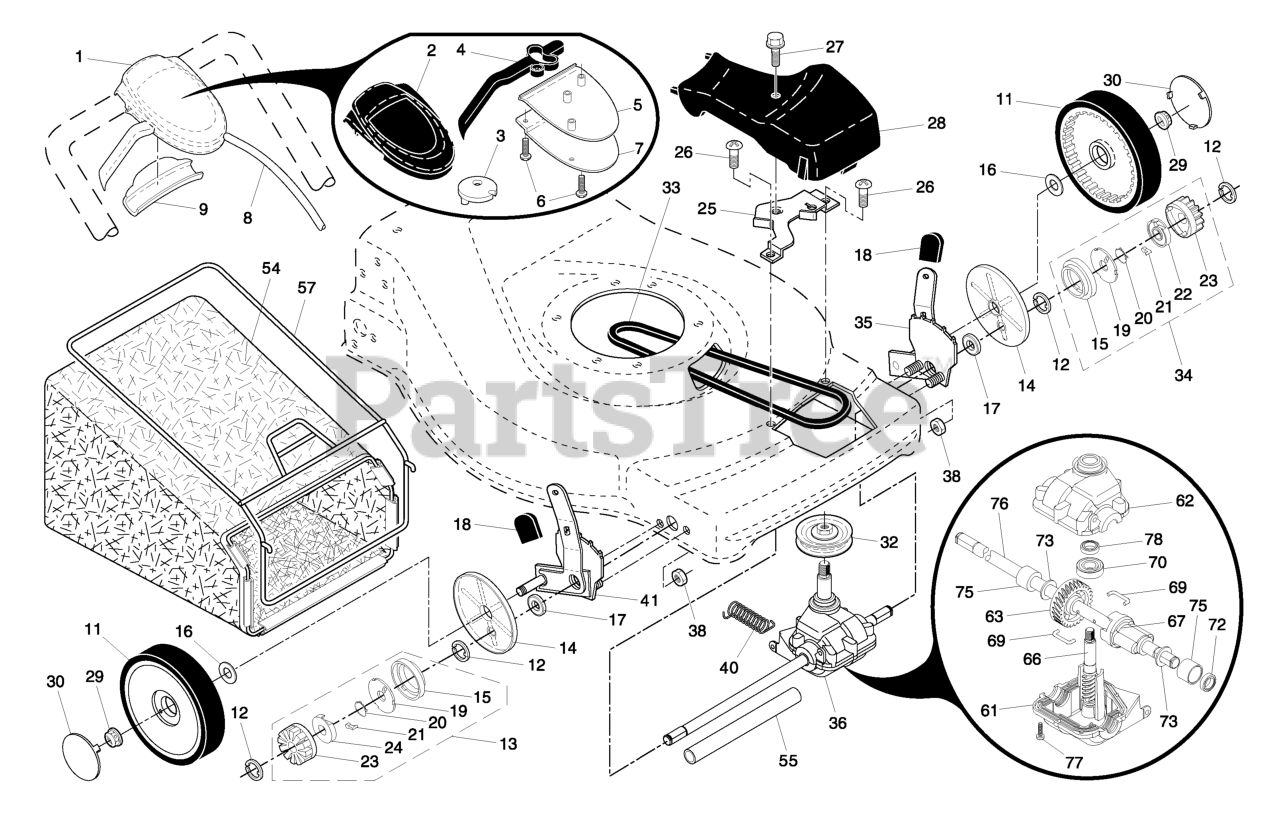

6522 SL (961430008-00) - Husqvarna Walk-Behind Mower (2005-09) Drive Assembly Parts Diagram

Walk-Behind Mower

Drive Assembly Parts Diagram

  • Title

1

Husqvarna 532196272

CONTROL.DR.EZ
(Superseded to 532404142)

Note: (Includes Cable)

$

$

Not available

2

Husqvarna 532195761

CASE.TOP.GRAY
(Superseded to 532414555)

$

$

Not available

3

Husqvarna 532187353

PULLEY.CAM.DRIVE.CONTROL.HV

$

$

Not available

4

Husqvarna 532190039

LEVER, AUTOWALK DRIVE CONTROL
(Superseded to 532425583)

$

$

Not available

5

Husqvarna 532195762

CASE BOTTOM
(Superseded to 532414555)

$

$

Not available

6

Husqvarna 532186198

DECAL

$

$

Not available

7

Husqvarna 532187097

BRACKET, DRIVE CONTROL
(Superseded to 532400723)

$

$

Not available

8

Husqvarna 532196181

RP CABLE, DRIVE CONTROL
(Superseded to 532404142)

$

$

Not available

9

Husqvarna 532186297

EZ WALK SNAP COVER PLATE

$

$

Not available

11

Husqvarna 532180775

WHEEL.8X2.PR.LP.RADII.BLACK.BU

$37.99

$

In Stock, only 3 left!

0

12

Husqvarna 812000058

E-RING 7/16 RE

$3.49

$

In Stock, Qty 20+

0

13

Husqvarna 532188330

PINION ASSY, RH
(Superseded to 532414860)

$

$

Not available

14

Husqvarna 532189403

COVER.DUST.WHEEL
(Superseded to 581840401)

$6.99

$

In Stock, Qty 20+

0

15

Husqvarna 532184172

SEAL.PINION

$

$

Not available

16

Husqvarna 532067725

WASHER FLUT

$6.99

$

In Stock, Qty 9

0

17

Husqvarna 532191039

BEARING
(Superseded to 587070202)

$17.99

$

In Stock, Qty 18

0

18

Husqvarna 532701037

SELECTOR KNOB

$5.99

$

In Stock, Qty 20+

0

19

Husqvarna 532175104

DISC.DRIVE.21.EZ-WALK

$

$

Not available

20

Husqvarna 532188291

SPRING, TORSION

$4.99

$

In Stock, Qty 11

0

21

Husqvarna 532175098

PAWL.DRIVE.21.EZ-WALK

$6.99

$

In Stock, Qty 16

0

22

Husqvarna 532175105

RETAINER.DRIVE.21.EZ-WALK.LT

$

$

Not available

23

Husqvarna 532175103

GEAR, PINION

$

$

Not available

24

Husqvarna 532175102

RETAINER, DRIVE, RH

$

$

Not available

25

Husqvarna 532196054

Belt Guide Bracket

$

$

Currently unavailable

26

Husqvarna 532188040

SCREW
(Superseded to 532192325)

$5.99

$

In Stock, only 2 left!

0

27

Husqvarna 532175262

SCREW, HEX HD TAPPING #10-24 1

$3.49

$

In Stock, only 3 left!

0

28

Husqvarna 532197333

FENDER.PNT.CRD.MS421
(Superseded to 532197364)

$

$

Not available

29

Husqvarna 532145212

NUT
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

30

Husqvarna 532180626

HUBCAP
(Superseded to 532150182)

$

$

Not available

31

Husqvarna 532132010

FLANGED LOCKNUT 3/8-16 ZINC
(Superseded to 532409149)

$1.49

$

In Stock, Qty 20+

0

32

Husqvarna 532189406

PULLEY
(Superseded to 532443262)

$13.99

$

In Stock, only 1 left!

0

33

Husqvarna 532189922

BELT DRIVE

$

$

Not available

34

Husqvarna 532188331

PINION ASSY, LH
(Superseded to 532414860)

$

$

Not available

35

Husqvarna 532195710

Kit, Wheel Adjuster, LH

Note: (Includes Knob and Bearing)

$

$

Currently unavailable

36

Husqvarna 532189380

TRANSMISSION.22.FWGD.

$

$

Not available

38

Husqvarna 873800400

LOCKNUT.NYLOC.1/4-20
(Superseded to 539976978)

$2.49

$

In Stock, Qty 20+

0

40

Husqvarna 532182226

SPRING, RETURN
(Superseded to 532406558)

$9.49

$

In Stock, Qty 20+

0

41

Husqvarna 532195107

KIT.ADJUSTER.AS.EZ RT
(Superseded to 581497904)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Husqvarna 532196396

GBAG.1323247.SILVER
(Superseded to 532401963)

$62.99

$

In Stock, Qty 5

0

55

Husqvarna 532086012

DRV SHAFT TUBE PM

$

$

Not available

57

Husqvarna 532189680

FRAME.GBAG.EZ.EMPTY

$

$

Not available

61

Husqvarna 532187525

LOWER CASE

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$

$

Not available

62

Husqvarna 532187526

UPPER CASE

Note: Use Dow Corning #709 to reseal Gear Case Halves.

$26.99

$

Usually ships in 3-10 days

0

63

Husqvarna 532183499

GEAR.27.TEETH.WALK.MOWER

$

$

Not available

66

Husqvarna 532187527

SHAFT INPUT (13056)

$

$

Not available

67

Husqvarna 532187528

SPACER

$

$

Not available

69

Husqvarna 532183505

WIRE, FORMED (15966)

$6.99

$

In Stock, only 1 left!

0

70

Husqvarna 532183506

BEARING

$

$

Not available

72

Husqvarna 532183508

SEAL.OUTPUT.SHAFT

$11.99

$

In Stock, Qty 7

0

73

Husqvarna 532183509

WASHER

$5.99

$

Usually ships in 3-10 days

0

75

Husqvarna 532183511

BUSHING

$

$

Not available

76

Husqvarna 532192877

Shaft, Output

$

$

Currently unavailable

77

Husqvarna 532183513

SCREW

$5.99

$

Usually ships in 3-10 days

0

78

Husqvarna 532183514

SEAL INPUT SHAFT

$

$

Not available
