653 A (190-653-100) - Cub Cadet 10 Cubic Feet Utility Cart 10 Cu. Ft. Utility Cart Parts Diagram

10 Cubic Feet Utility Cart

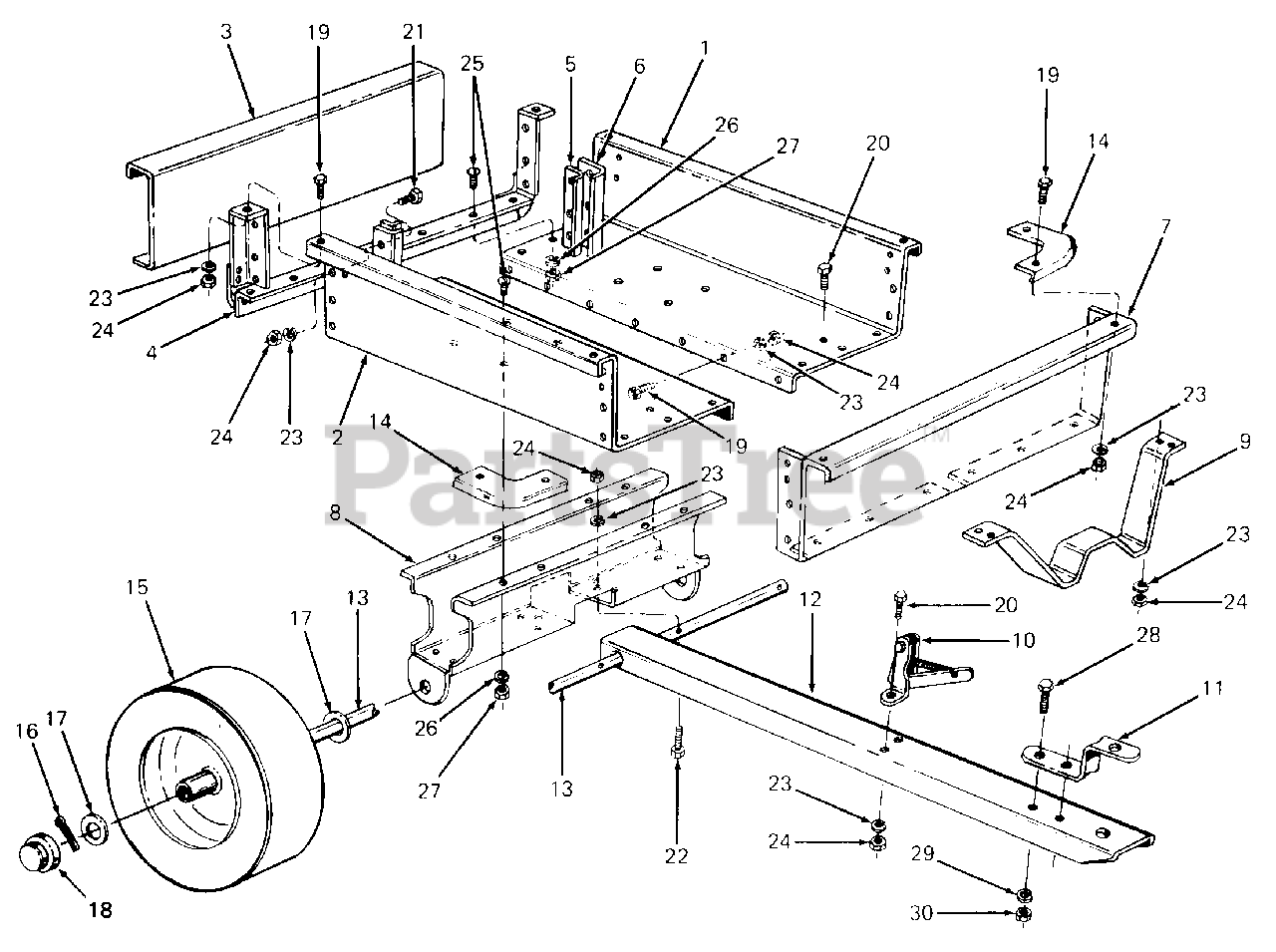

10 Cu. Ft. Utility Cart Parts Diagram

  • Title

1

Cub Cadet AF-23513

Cart Body LH

$

$

Currently unavailable

2

Cub Cadet AF-23514

Cart Body RH

$

$

Currently unavailable

3

Cub Cadet AF-23502

Tailgate

Variations

Cub Cadet AF-23502-0498

TAILGATE (CUB YELLOW) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23502-0499

TAILGATE (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23502-0650

TAILGATE (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

$

$

4

Cub Cadet AF-62458

Angle Assy, Rear

Variations

Cub Cadet AF-62458-0637

ANGLE ASSEMBLY-REAR POWDER BLK - POWDER BLACK (0637)

$

$

Not available

$

$

5

Cub Cadet AF-23547

Guide, Tailgate - Inside
(Superseded to AF-23548)

$

$

Not available

6

Cub Cadet AF-23486

Guide, Tailgate - Outside
(Superseded to AF-23548)

$

$

Not available

7

Cub Cadet AF-23492

Panel, Front

Variations

Cub Cadet AF-23492-0498

PANEL-FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23492-0499

PANEL-FRONT - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23492-0650

FRONT PANEL - RED METALLIC (0650)

$

$

Not available

$

$

8

Cub Cadet AF-23506

Support, Wheel
(Superseded to AF-23506-0637)

Variations

Cub Cadet AF-23506-0637

SUPPORT-WHEEL - POWDER BLACK (0637)

$

$

Not available

$

$

9

Cub Cadet AF-23095

Bracket, Latch Stand
(Superseded to AF-23095-0637)

Variations

Cub Cadet AF-23095-0637

BRACKET-LATCH STAN - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet AF-62455

Lock Assy, Latch

$

$

Not available

11

Cub Cadet AF-23014

Bracket, Hitch
(Superseded to AF-23014-0637)

Variations

Cub Cadet AF-23014-0637

Hitch Bracket - POWDER BLACK (0637)

$54.99

$

Usually ships in 3-6 days

0

$54.99

$

Usually ships in 3-6 days

0

12

Cub Cadet AF-23505

Tongue, Draw Bar

Variations

Cub Cadet AF-23505-0637

TONGUE-DRAW BAR BLACK - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet AF-23026

Axle, Wheel, 3/4 Dia
(Superseded to AF-23026-0637)

Variations

Cub Cadet AF-23026-0637

AXLE-WHEEL 3/4 DIA - POWDER BLACK (0637)

$

$

Not available

$

$

14

Cub Cadet AF-23484

Cap, Front Corner

Variations

Cub Cadet AF-23484-0498

CAP-FRONT CORNER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet AF-23484-0499

FRONT CORNER CAP (CUB BEIGE) - CUB BEIGE (0499)

$

$

Not available

Cub Cadet AF-23484-0650

CAP-FRONT CORNER - RED METALLIC (0650)

$

$

Not available

$

$

15

Cub Cadet AF-43008

Wheel Assy, 4.30 x 3.75

Variations

Cub Cadet AF-43008-0499

WHEEL ASSEMBLY 4.30X3.75 - CUB BEIGE (0499)

$

$

Not available

$

$

16

Cub Cadet 714-0144

Pin, Cotter, 1/8 Dia x 1.0 Lg

$

$

Not available

17

Cub Cadet 736-0316

Washer, Flat, .781 x 1.59 x .065

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet AF-43014

Hub Cap
(Superseded to 931-0484A)

$5.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-3013

Screw, Hex Cap, 1/4-20 x .50 Lg

$4.49

$

In Stock, only 2 left!

0

20

Cub Cadet 710-0258

Screw, Hex Cap, 1/4-20 x .62 Lg
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3015

Screw, Hex Cap, 1/4-20 x .75 Lg

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 710-0886

Screw, Hex Cap, 1/4-20 x 1.50 Lg
(Superseded to 910-0886)

$

$

Not available

23

Cub Cadet 736-0329

Washer, Lock, 1/4
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

24

Cub Cadet 712-0287

Nut, Hex, 1/4-20
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

25

Cub Cadet 710-0323

Screw, Truss Hd, 5/16-18 x .75 Lg

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0267

Nut, Hex, 5/16-18
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 x 1.0 Lg GR 5

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.49

$

In Stock, Qty 20+

0

30

Cub Cadet 712-3017

Nut, Hex, 3/8-16

$3.99

$

In Stock, Qty 20+

0
