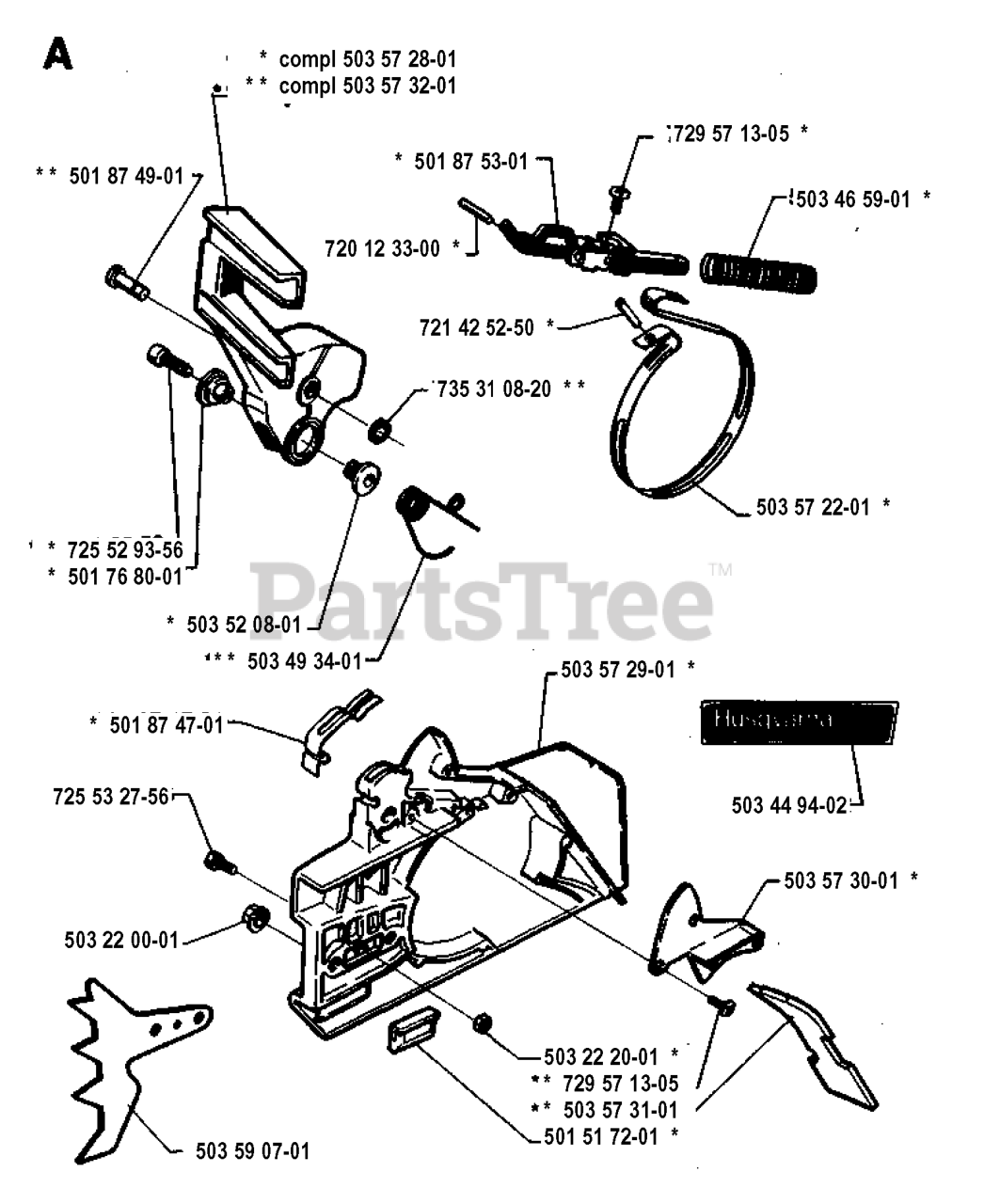

66 - Husqvarna Chainsaw (1991-03) CHAIN BRAKE Parts Diagram

Chainsaw

CHAIN BRAKE Parts Diagram

  • Title

503 52 08-01

Husqvarna 503520801

PIVOT SLEEVE L

$13.99

$

In Stock, only 2 left!

0

503 57 30-01

Husqvarna 503573001

COVER

$

$

Not available

725 53 27-56

Husqvarna 725532756

SCREW MC6S 5X12
(Superseded to 725532755)

$3.49

$

In Stock, Qty 5

0

503 57 22-01

Husqvarna 503572201

BRAKE BAND

$17.99

$

In Stock, only 2 left!

0

503 59 07-01

Husqvarna 503590701

FELLING DOG

$

$

Not available

729 57 13-05

Husqvarna 729571305

SCREW
(Superseded to 503212810)

$3.49

$

In Stock, Qty 20+

0

503 57 32-01

Husqvarna 503573201

HANDGUARD CPL
(Superseded to 503727401)

$45.99

$

In Stock, only 2 left!

0

501 51 72-01

Husqvarna 501517201

CHAIN GUIDE

$5.99

$

In Stock, Qty 20+

0

503 46 59-01

Husqvarna 503465901

SPRING

$7.99

$

In Stock, Qty 5

0

503 57 28-01

Husqvarna 503572801

CHAIN BRAKE CPL
(Superseded to 503736601)

$148.99

$

In Stock, Qty 5

0

503 44 94-02

Husqvarna 503449402

DECAL

$

$

Not available

725 52 93-56

Husqvarna 725529356

SCREW MC6S 4X16

$

$

Not available

503 49 34-01

Husqvarna 503493401

LOCK SPRING

$

$

Not available

503 57 31-01

Husqvarna 503573101

PROTECTOR

$

$

Not available

503 22 20-01

Husqvarna 503222001

STOVER NUT M5
(Superseded to 503222302)

$

$

Not available

720 12 33-00

Husqvarna 720123300

PIN 3X10

$2.49

$

In Stock, Qty 8

0

721 42 52-50

Husqvarna 721425250

SPIRAL PIN 4X12

$3.49

$

In Stock, Qty 12

0

501 87 47-01

Husqvarna 501874701

SPRING

$3.49

$

In Stock, Qty 16

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

501 87 49-01

Husqvarna 501874901

PIVOT PIN
(Superseded to 503802701)

$5.99

$

In Stock, only 2 left!

0

501 87 53-01

Husqvarna 501875301

KNEE-JOINT

$26.99

$

In Stock, only 2 left!

0

735 31 08-20

Husqvarna 735310820

E-RING 4

$3.49

$

In Stock, Qty 10

0

503 57 29-01

Husqvarna 503572901

CLUTCH COVER

$

$

Not available

501 76 80-01

Husqvarna 501768001

PIVOT SLEEVE R

$5.99

$

In Stock, Qty 7

0
