662 (590-662-100) - Cub Cadet 72" Tiller Attachment Gear Box Parts Diagram

72" Tiller Attachment

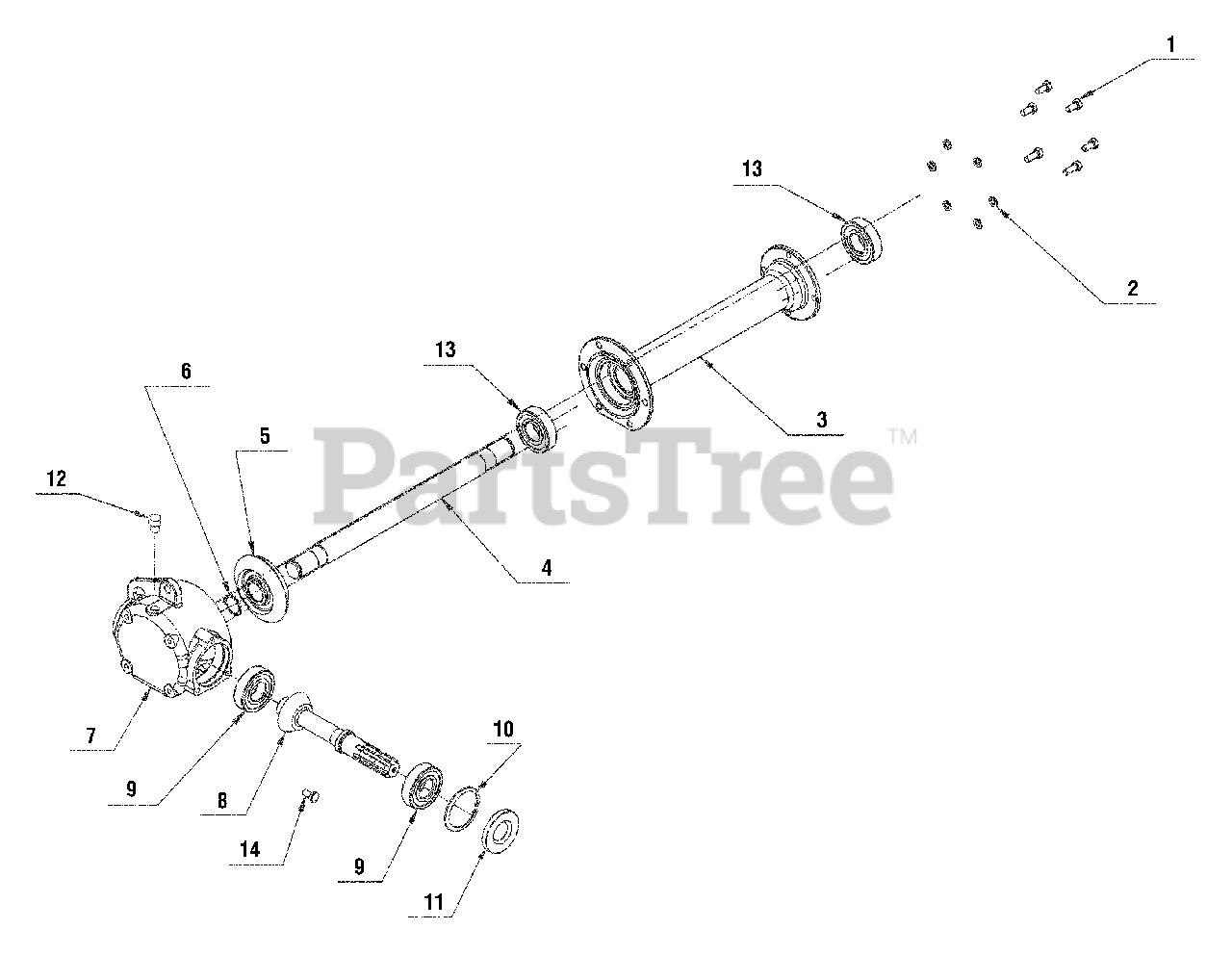

Gear Box Parts Diagram

  • Title

1

Bolt, M10 x 25 8.8

Note: Obtain hardware locally

$

$

Not available

2

Washer, M11

Note: Obtain hardware locally

$

$

Not available

3

Tube, Output Shaft

Note: Not servicable

$

$

Not available

4

Shaft, Output

Note: Not servicable

$

$

Not available

5

Gear, Miter

Note: Not servicable

$

$

Not available

6

Snap Ring

Note: Obtain hardware locally

$

$

Not available

7

Housing, Gearbox

Note: Not servicable

$

$

Not available

8

Shaft, Input

Note: Not servicable

$

$

Not available

9

Bearing, Gearbox

Note: Not servicable

$

$

Not available

10

Cub Cadet MR-MR03110011

Snap Ring

$

$

Not available

11

Cub Cadet MR-MR02140031

Spacer, 35 x 80 x 10

$

$

Not available

12

Cub Cadet MR-MR03140016

Plug

$

$

Currently unavailable

13

Bearing, Gearbox

Note: Not servicable

$

$

Not available

14

Cub Cadet MR-MR03140014

Plug

$

$

Currently unavailable
