67-18DC01 - Toro 18 Cubic Foot Cart (1976) PARTS LIST-18 CUBIC FOOT DUMP CART (FACTORY ORDER NUMBER 67-18DC01) Parts Diagram

18 Cubic Foot Cart

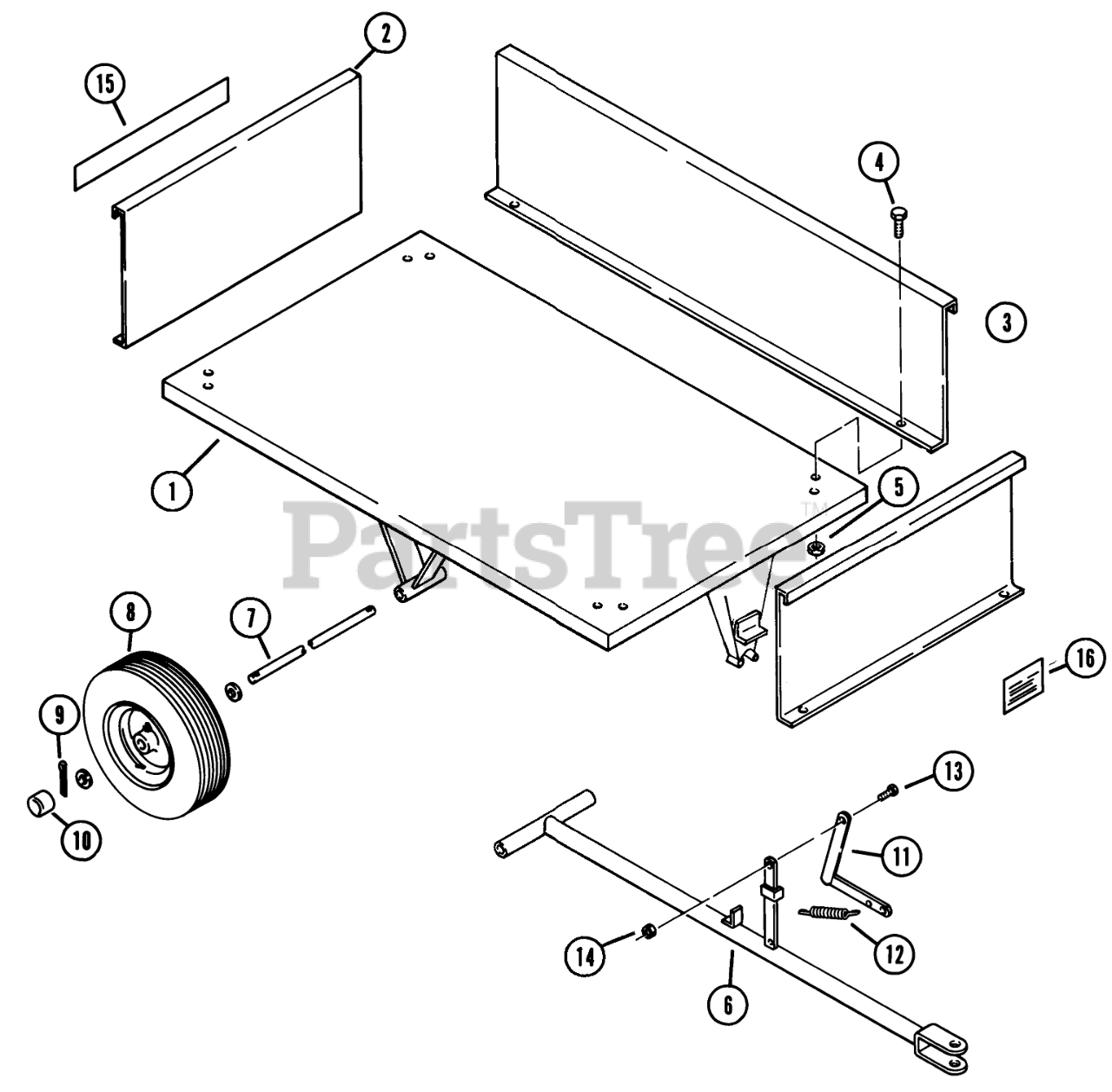

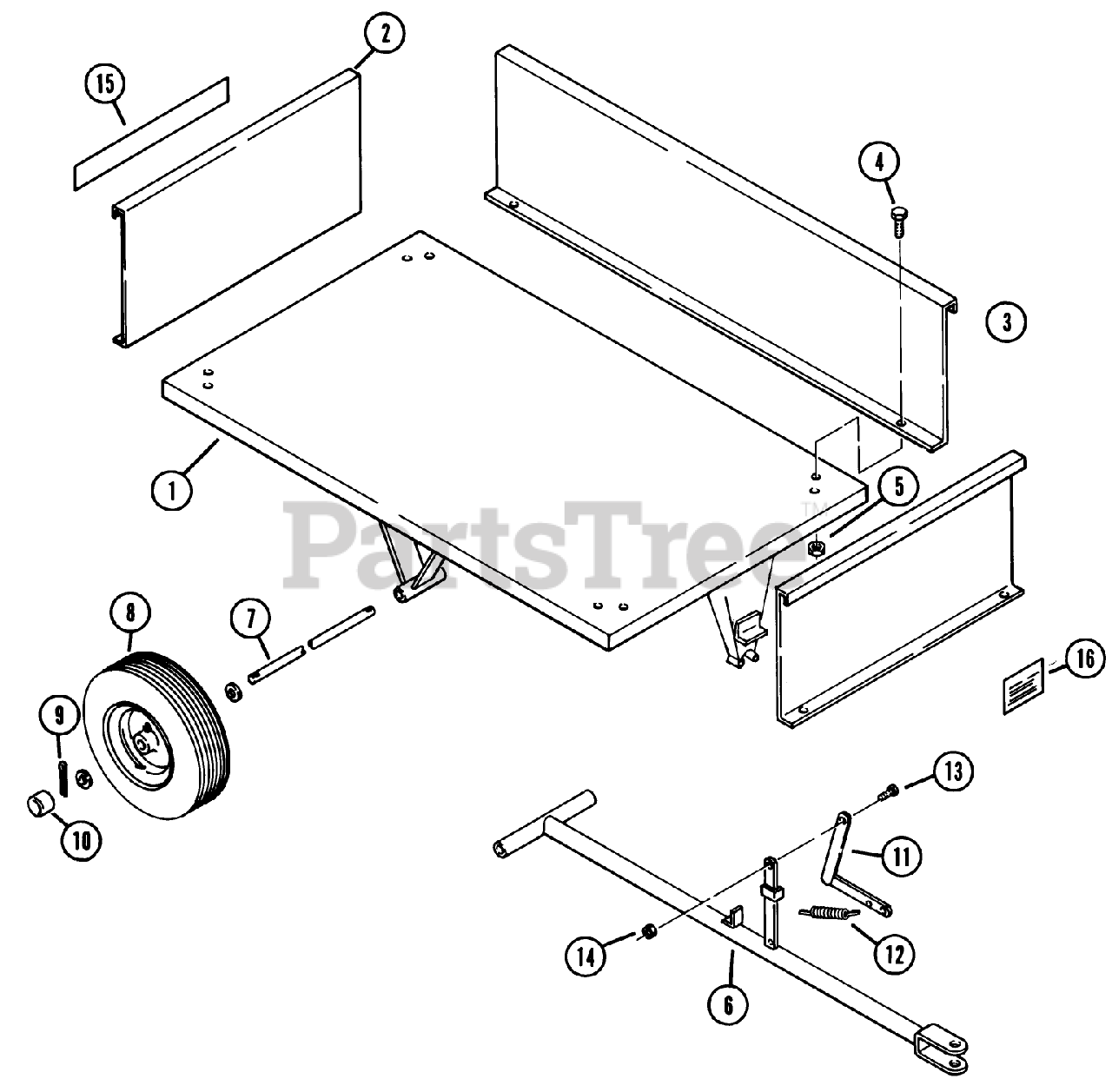

PARTS LIST-18 CUBIC FOOT DUMP CART (FACTORY ORDER NUMBER 67-18DC01) Parts Diagram

  • Title

1

Toro 226060

Bed Assembly

$

$

Currently unavailable

2

Toro 226061

Front and Rear Gate

$

$

Not available

3

Toro 226062

Side Gate

$

$

Not available

4

Toro 908034

BOLT
(Superseded to 323-6)

$2.49

$

In Stock, Qty 20+

0

5

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

6

Toro 226063

Drawbar Assembly

$

$

Not available

7

Toro 226064

Axle

$

$

Not available

8

Toro 226065

Wheel Assembly (6.50 x 8-16)
(Superseded to 109034)

$

$

Not available

9

Toro 932028

Cotter Pin
(Superseded to 3272-19)

$0.99

$

Usually ships in 3-6 days

0

10

Toro 103565

HUB CAP

$

$

Not available

11

Toro 226066

Latch Assembly

$

$

Not available

12

Toro 226067

SPRING

$

$

Not available

13

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

14

Toro 915111

Nut
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 10

0

15

Toro 102831

Decal
(Superseded to 108851)

$33.99

$

Usually ships in 3-6 days

0

16

Toro 105757

Decal-Caution

$

$

Not available
