670 SUPER II - Jonsered Chainsaw (1993-06) CRANKCASE Parts Diagram

Chainsaw

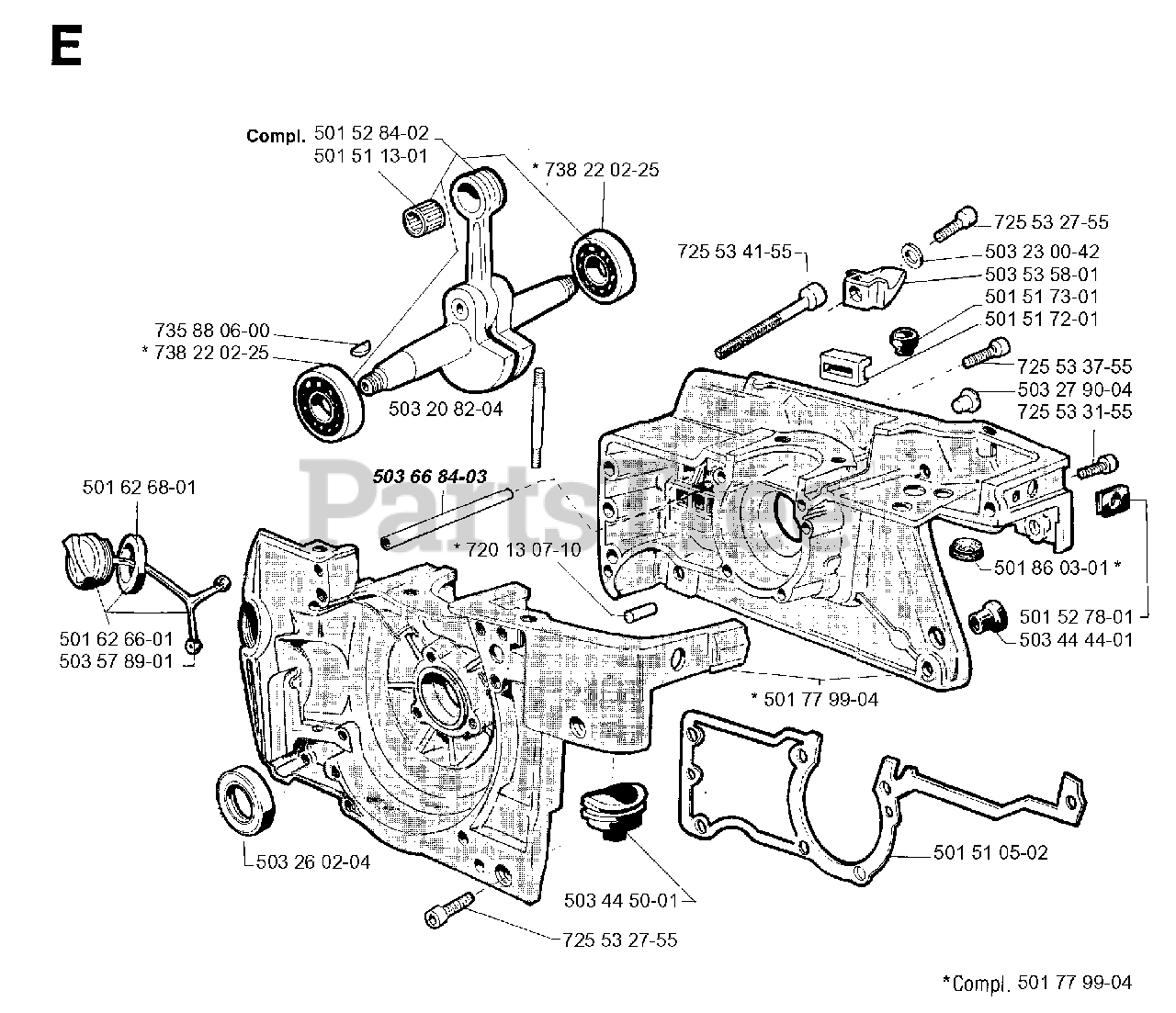

CRANKCASE Parts Diagram

  • Title

5015284-02

Jonsered 501528402

CRANKSHAFT
(Superseded to 503613371)

$

$

Not available

5015113-01

Jonsered 501511301

NEEDLE BEARING
(Superseded to 503733901)

$17.99

$

In Stock, only 2 left!

0

7358806-00

Jonsered 735880600

WOODRUFF KEY

$3.49

$

In Stock, only 1 left!

0

7382202-25

Jonsered 738220225

BALL BEARING-6202-C3 SKF

$31.99

$

In Stock, Qty 9

0

5016268-01

Jonsered 501626801

OILCAP GASKET

$4.99

$

In Stock, only 4 left!

0

5016266-01

Jonsered 501626601

OIL TANK CAP COMPL
(Superseded to 501626602)

$11.99

$

In Stock, only 2 left!

0

5035789-01

Jonsered 503578901

HOLDER

$5.99

$

In Stock, Qty 10

0

5032602-04

Jonsered 503260204

SEALING RING

$16.99

$

In Stock, Qty 9

0

7255327-55

Jonsered 725532755

SCREW MC6S 5X12

$3.49

$

In Stock, Qty 13

0

5034450-01

Jonsered 503445001

BELLOWS

$6.99

$

In Stock, only 3 left!

0

7201307-10

Jonsered 720130710

PIN 5X14
(Superseded to 720130752)

$8.99

$

Usually ships in 3-10 days

0

5036684-03

Jonsered 503668403

OIL TANK VENT

$11.99

$

Usually ships in 3-10 days

0

5032082-04

Jonsered 503208204

STUD BOLT

$3.34

$

Usually ships in 3-10 days

0

7382202-25

Jonsered 738220225

BALL BEARING-6202-C3 SKF

$31.99

$

In Stock, Qty 9

0

7255341-55

Jonsered 725534155

SCREW MC6S 5X50

$2.99

$

Usually ships in 3-10 days

0

5017799-04

Jonsered 501779904

CRANKCASE CPL.

$

$

Not available

5017799-04

Jonsered 501779904

CRANKCASE CPL.

$

$

Not available

5015105-02

Jonsered 501510502

GASKET, CRANCASE

$4.99

$

Usually ships in 3-10 days

0

5034444-01

Jonsered 503444401

BUSHING
(Superseded to 503723101)

$5.99

$

In Stock, only 2 left!

0

5015278-01

Jonsered 501527801

BUSHING

$4.99

$

In Stock, Qty 5

0

5018603-01

Jonsered 501860301

BUFFER

$

$

Not available

7255331-55

Jonsered 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, Qty 15

0

5032790-04

Jonsered 503279004

PLUG

$

$

Not available

7255337-55

Jonsered 725533755

SCREW MC6S 5X35

$3.49

$

In Stock, only 4 left!

0

5015172-01

Jonsered 501517201

CHAIN GUIDE

$5.99

$

In Stock, Qty 20+

0

5015173-01

Jonsered 501517301

RUBBER BELLOWS

$

$

Not available

5035358-01

Jonsered 503535801

CHAIN CATCHER

$5.99

$

In Stock, only 4 left!

0

5032300-42

Jonsered 503230042

WASHER

$3.49

$

In Stock, Qty 5

0

7255327-55

Jonsered 725532755

SCREW MC6S 5X12

$3.49

$

In Stock, Qty 13

0
