670 - Weed Eater String Trimmer DRIVE SHAFT & CUTTING HEAD Parts Diagram

String Trimmer

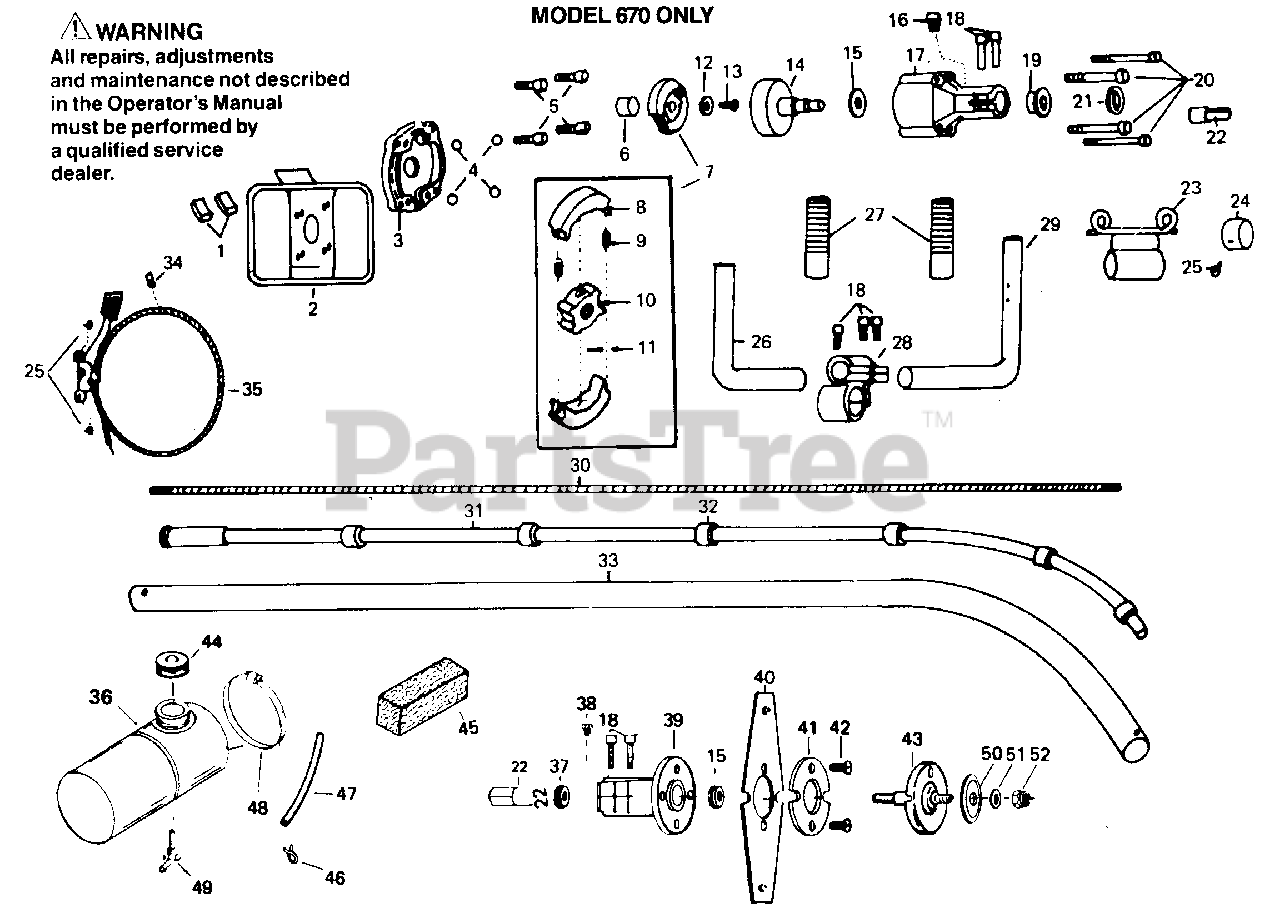

DRIVE SHAFT & CUTTING HEAD Parts Diagram

  • Title

1

Fuel Tank Cushion

$

$

Not available

2

Poulan 110092835

GASKET DIAPHRAGM KAAZ #

$6.49

$

Usually ships in 3-10 days

0

Poulan 530092835

Motor Leg Assembly

$

$

Not available

3

Poulan 530092836

Motor Adaptor Plate

$27.99

$

Usually ships in 3-10 days

0

4

Poulan 530091458

Lock Washer

$

$

Not available

5

Poulan 530092833

Screw

$

$

Not available

6

Poulan 530092758

Clutch Spacer

$

$

Not available

7

Poulan 530092759

Clutch Assembly (Incl. #8, 9, 10 & 11)

$

$

Not available

8

Poulan 530093131

Clutch Shoe Assembly

$

$

Not available

9

Poulan 530092762

Clutch Spring

$

$

Not available

10

Poulan 530092763

Clutch Hub

$

$

Not available

11

Poulan 530092764

Woodruff Key

$

$

Not available

12

Poulan 530091458

Lock Washer

$

$

Not available

13

Poulan 530092766

Screw

$

$

Not available

14

Poulan 530092837

Clutch Drum Assembly

$

$

Not available

15

Poulan 530092769

Ball Bearing, Lower

$

$

Not available

16

Poulan 530092833

Screw

$

$

Not available

17

Poulan 530092838

Clutch Housing w/Bearing & Bushing

$

$

Not available

18

Poulan 530092839

Screw

$

$

Not available

19

Poulan 530092841

Clutch Bushing

$

$

Not available

20

Poulan 530092842

Screw

$

$

Not available

21

Poulan 530092773

Drive Shaft Washer

$6.49

$

Usually ships in 3-10 days

0

22

Poulan 530092774

End Coupling

$

$

Not available

23

Swivel Assembly

$

$

Not available

24

Swivel Keeper

$

$

Not available

25

Poulan 530092787

Screw

$2.49

$

Usually ships in 3-10 days

0

26

Poulan 530092845

Handle Bar (Ieft)

$

$

Not available

27

Poulan 530092846

Handle Grip

$

$

Not available

28

Poulan 530092847

Handle Bar Clamp

$

$

Not available

29

Handle Bar (right)

$

$

Not available

30

Poulan 530092776

Flexible Drive Shaft

$

$

Not available

31

Poulan 530092849

Drive Shaft Housing

$

$

Not available

32

Poulan 530092851

Neoprine Guide

$

$

Not available

33

Poulan 530092852

Drive Shaft Housing

$

$

Not available

34

Poulan 530092853

Throttle Control Clip

$

$

Not available

35

Poulan 530092789

Throttle Control Complete

$

$

Not available

36

Poulan 530092862

Tank, Fuel

$

$

Not available

37

Poulan 110092854

GASKET KAAZ #

$4.99

$

Usually ships in 3-10 days

0

Poulan 530092854

Upper Bearing

$

$

Not available

38

Poulan 530092833

Screw

$

$

Not available

39

Poulan 530092855

Lower Housing

$

$

Not available

40

Poulan 530092856

Blade Guard

$

$

Not available

41

Poulan 530092857

Filler Plate

$

$

Not available

42

Poulan 530092858

Screw

$

$

Not available

43

Poulan 530092859

Weed Deflector Cup

$

$

Not available

44

Poulan 530092746

Cap, Fuel Tank

$19.99

$

Usually ships in 3-10 days

0

45

Poulan 530092863

Baffle, Fuel Tank

$

$

Not available

46

Poulan 530092752

Clip, Fuel

$

$

Not available

47

Poulan 530092864

Hose, Fuel

$

$

Not available

48

Strap, Fuel Tank

$

$

Not available

49

Poulan 530092866

Fitting, Fuel

$

$

Not available

50

Poulan 530093137

Washer, Lower Arbor

$

$

Not available

51

Poulan 530093153

Washer

$14.99

$

Usually ships in 3-10 days

0

52

Poulan 530093139

Nut, Hex - 7/16 - 20

$4.99

$

Usually ships in 3-10 days

0
