670-WUB - Cub Cadet 208cc Engine 670-WUB General Assembly Parts Diagram

208cc Engine

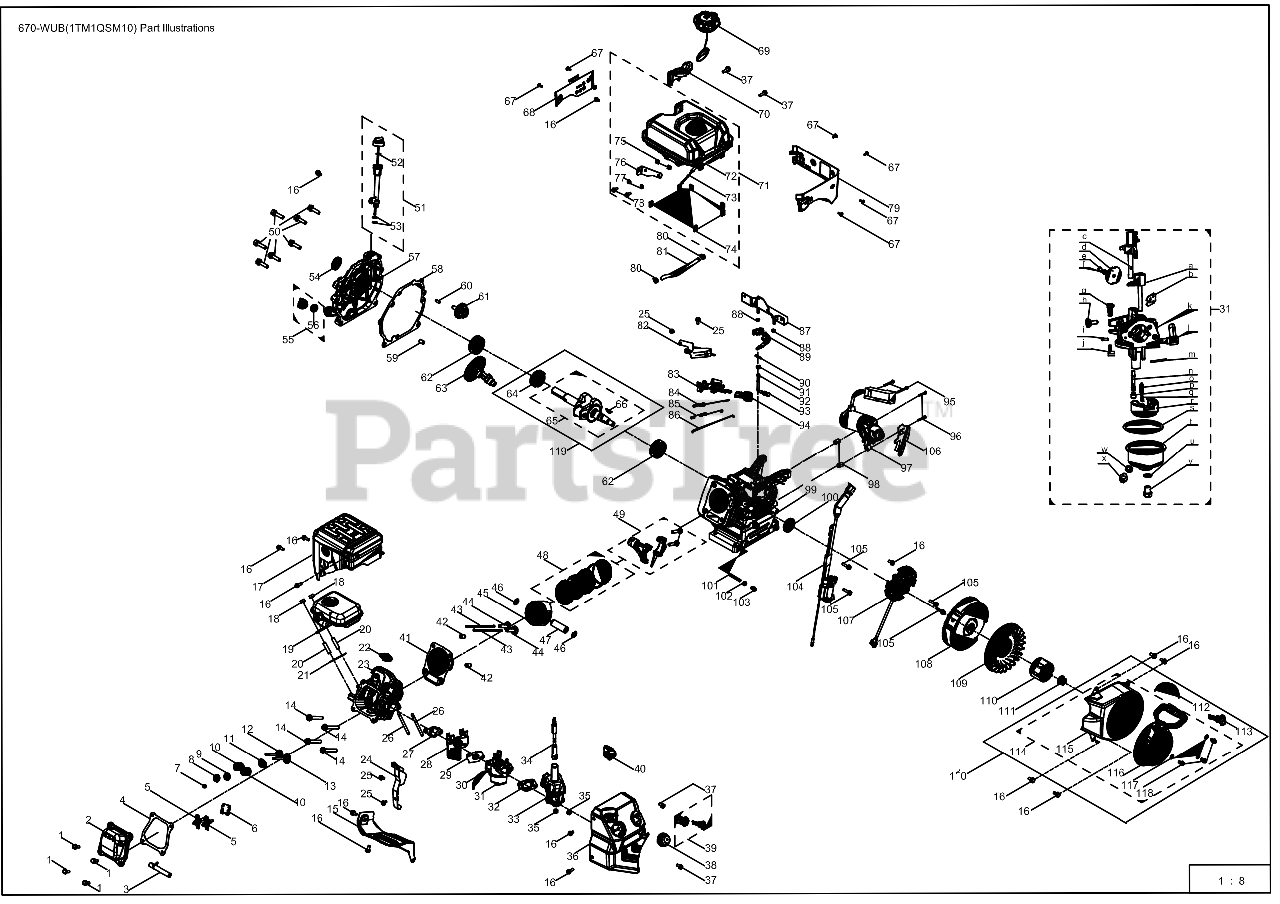

670-WUB General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04968

BOLT M6 x 16

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11054A

VALVE COVER
(Superseded to 951-11054B)

$14.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

Gasket, Valve Cover

$

$

Not available

5

Cub Cadet 751-11892

ROCKER ARM ASSEMBLY
(Superseded to 951-11892)

$37.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 751-15139

ROCKER ARM BASE
(Superseded to 951-15139)

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 751-12002

EXHAUST VALVE ADJUSTER
(Superseded to 951-12002)

$2.99

$

In Stock, only 3 left!

0

8

Cub Cadet 751-12003

EXHAUST VALVE SPRING RETAINER
(Superseded to 951-12003)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-12000

INTAKE VALVE SPRING RETAINER
(Superseded to 951-12000)

$3.99

$

In Stock, only 1 left!

0

10

Cub Cadet 751-12004

VALVE SPRING
(Superseded to 951-12004)

$1.99

$

In Stock, Qty 7

0

11

Cub Cadet 751-11894

INTAKE VALVE SEAL
(Superseded to 951-11894)

$10.99

$

In Stock, only 1 left!

0

12

Cub Cadet 751-14100

EXHAUST VALVE
(Superseded to 951-14100)

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 751-14099

INTAKE VALVE
(Superseded to 751P14099A)

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04933

BOLT M8-1.25 x 55 GR10.9

$3.99

$

In Stock, Qty 10

0

15

Cub Cadet 751-11113

AIR SHIELD
(Superseded to 951-11113)

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 751-15155

MUFFLER GUARD
(Superseded to 951-15155)

$64.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 751-15158

MUFFLER
(Superseded to 951-15158)

$70.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-05276

STUD M8-1.25 x 34
(Superseded to 710-04911)

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 751-11289

MUFFLER GASKET
(Superseded to 951-11289)

$2.49

$

In Stock, Qty 8

0

22

Cub Cadet 751-10292

SPARK PLUG
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 751-14928

CYLINDER HEAD
(Superseded to 951-14928)

$42.99

$

In Stock, only 1 left!

0

24

Cub Cadet 751-15185

SNOW GUARD
(Superseded to 951-15185)

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-05103

BOLT M6-1 x 12 GR8.8

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 751-15580

STUD M6 x 90
(Superseded to 951-15580)

$5.99

$

Usually ships in 3-6 days

0

27

Gasket, Carburetor Insulator

$

$

Not available

28

Cub Cadet 751-15160

INSULATOR
(Superseded to 951-15160)

$6.99

$

Usually ships in 3-6 days

0

29

Gasket, Carburetor

$

$

Not available

30

Cub Cadet 735-05038

PRIMER HOSE
(Superseded to 935-05038)

$11.99

$

In Stock, only 1 left!

0

31

Cub Cadet 751-15236

CARBURETOR ASSEMBLY
(Superseded to 951-15236)

$94.99

$

In Stock, Qty 6

0

32

Gasket, Air Filter

$

$

Not available

33

Cub Cadet 751-15186

HEATER BOX
(Superseded to 951-15186)

$

$

Not available

34

Cub Cadet 751-15581

CHOKE LINKAGE
(Superseded to 951-15581)

$5.49

$

In Stock, Qty 7

0

35

Cub Cadet 712-04211

HEX NUT
(Superseded to 712-05015)

$6.49

$

In Stock, only 4 left!

0

36

Cub Cadet 751-15164

CONTROL PANEL
(Superseded to 951-15164)

$28.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 710-05003

BOLT M6-1 x 18 GR8.8

$3.99

$

In Stock, Qty 5

0

38

Cub Cadet 751-10639A

PRIMER
(Superseded to 951-10639A)

$13.99

$

In Stock, Qty 20+

0

39

Cub Cadet 751-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022)

$11.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 751-15450

CHOKE LEVER
(Superseded to 951-15450)

$

$

Not available

41

Cub Cadet 751-11572

CYLINDER HEAD GASKET
(Superseded to 951-11572)

$11.99

$

In Stock, only 1 left!

0

42

Cub Cadet 715-04090

DOWEL PIN
(Superseded to 715-04108)

$3.99

$

In Stock, only 3 left!

0

43

Cub Cadet 751-14105

PUSH ROD
(Superseded to 751P14105A)

$2.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 751-11899

TAPPET
(Superseded to 951-11899)

$7.99

$

In Stock, Qty 6

0

45

Cub Cadet 751-12007

PISTON
(Superseded to 951-12007)

$33.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 751-11632

PISTON PIN SNAP
(Superseded to 951-11632)

$3.99

$

In Stock, only 3 left!

0

47

Cub Cadet 751-11633

PISTON PIN
(Superseded to 951-11633)

$7.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 751-12111

PISTON RING SET
(Superseded to 951-12111)

$6.49

$

In Stock, Qty 5

0

49

Cub Cadet 751-11573

CONNECTING ROD
(Superseded to 951-11573)

$9.49

$

In Stock, only 1 left!

0

50

Cub Cadet 710-04932

BOLT M8-1.25 x 32 GR5.8

$3.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 651-05020A

DIPSTICK ASSEMBLY
(Superseded to 951-05020B)

$14.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 721-04663

DIPSTICK O-RING
(Superseded to 921-04663A)

$5.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 751-12397

OIL FILL TUBE O-RING
(Superseded to 951-12397)

$4.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 751-11368

OIL SEAL
(Superseded to 951-11368)

$2.99

$

In Stock, only 4 left!

0

55

Cub Cadet 731-09966

OIL PLUG
(Superseded to 931-09966)

$5.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 751-11577

O-RING 15.8 x 2
(Superseded to 951-11577)

$3.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 751-12125

CRANKCASE COVER
(Superseded to 951-12125)

$107.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 751-11371A

CRANKCASE COVER GASKET
(Superseded to 951-11371A)

$3.49

$

In Stock, Qty 11

0

59

Cub Cadet 715-04096

DOWEL PIN
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 715-04092

DOWEL PIN
(Superseded to 715-04096A)

$3.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 751-11576

GOVERNOR GEAR/SHAFT ASSEMBLY
(Superseded to 951-11576)

$3.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 751-11369

BEARING
(Superseded to 951-11369)

$32.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751-15128

CAMSHAFT
(Superseded to 951-15128)

$45.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 751-15130

DRIVE TIMING GEAR
(Superseded to 951-15130)

$13.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 751-15129

CRANKSHAFT
(Superseded to 951-15129)

$113.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 751-10307

FLYWHEEL KEY
(Superseded to 951-10307)

$2.49

$

In Stock, Qty 11

0

67

Cub Cadet 751-15189

BOLT: M5 x 14
(Superseded to 951-15189)

$3.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 751-15191

DECORATIVE SHEET: RIGHT
(Superseded to 951-15191)

$6.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 751-15172

FUEL CAP
(Superseded to 951-15172)

$

$

Not available

70

Cub Cadet 751-15170

DECORATIVE COVER
(Superseded to 951-15170)

$6.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 751-15173

FUEL TANK
(Superseded to 951-15173)

$

$

Not available

72

Fuel Tank

$

$

Not available

73

Cub Cadet 751-12296

FUEL FILTER
(Superseded to 951-12296A)

$9.49

$

In Stock, Qty 20+

0

74

Cub Cadet 751-15578

FUEL TANK MOUNT THREADED TAB
(Superseded to 951-15578)

$3.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 712-05186

NUT M6

$4.49

$

Usually ships in 3-6 days

0

76

Cub Cadet 751-15577

FUEL TANK MOUNT TAB
(Superseded to 951-15577)

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 736-05197

WASHER 6.5 x 1.5 x 12

$4.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 710-06567

BOLT M6 x 20

$3.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 751-15231

DECORATIVE SHEET: LEFT
(Superseded to 951-15231)

$6.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 751-11700

HOSE CLAMP
(Superseded to 951-11700A)

$3.99

$

In Stock, only 3 left!

0

81

Cub Cadet 751-15169

FUEL HOSE 6.3 x 12.5 x 162
(Superseded to 951-15169)

$23.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 751-15168

GOVERNOR SHIELD
(Superseded to 951-15168)

$6.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 751-15153

GOVERNOR GEAR BRACKET ASSEMBLY
(Superseded to 951-15153)

$17.99

$

Usually ships in 3-6 days

0

84

Cub Cadet 751-14882

GOVERNOR SPRING
(Superseded to 951-14882)

$7.49

$

In Stock, only 1 left!

0

85

Cub Cadet 751-10664

THROTTLE SPRING
(Superseded to 951-10664)

$2.49

$

In Stock, Qty 10

0

86

Cub Cadet 751-10665

GOVERNOR ROD
(Superseded to 951-10665)

$1.99

$

In Stock, only 3 left!

0

87

Cub Cadet 751-15174

FUEL TANK BRACKET
(Superseded to 951-15174)

$10.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

89

Cub Cadet 751-14089

GOVERNOR LEVER
(Superseded to 951-14089)

$7.49

$

Usually ships in 3-6 days

0

90

Cub Cadet 714-04078

COTTER PIN

$3.99

$

Usually ships in 3-6 days

0

91

Cub Cadet 751-11902

GOVERNOR SEAL
(Superseded to 951-11902)

$4.49

$

In Stock, only 1 left!

0

92

Cub Cadet 736-04461

O-RING

$3.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 751-14053

GOVERNOR SHAFT
(Superseded to 951-14053)

$14.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 751-10757

THROTTLE KNOB
(Superseded to 951-10757)

$7.49

$

In Stock, Qty 6

0

95

Cub Cadet 751-15472

SCREW

$4.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 710-05182

BOLT M6-1 x 32 GR8.8

$3.99

$

In Stock, only 1 left!

0

97

Cub Cadet 751-15229

ELECTRIC STARTER
(Superseded to 951-15229)

$341.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 715-04088

DOWEL PIN

$3.99

$

In Stock, Qty 6

0

99

Cub Cadet 751-14149

CRANKCASE
(Superseded to 951-14149)

$112.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 751-11370

OIL SEAL
(Superseded to 751P11370A)

$2.49

$

In Stock, only 2 left!

0

101

Cub Cadet 751-11350

OIL DRAIN PIPE
(Superseded to 951-11350)

$8.49

$

Usually ships in 3-6 days

0

102

Cub Cadet 736-04440

WASHER
(Superseded to 736-04440A)

$6.49

$

In Stock, Qty 6

0

103

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.49

$

In Stock, Qty 6

0

104

Cub Cadet 751-15151

IGNITION MODULE
(Superseded to 951-15151)

$91.99

$

Usually ships in 3-6 days

0

105

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

106

Lower Shield

$

$

Not available

107

Charging Coil

$

$

Not available

108

Cub Cadet 751-15540A

FLYWHEEL
(Superseded to 951-15540A)

$171.99

$

Usually ships in 3-6 days

0

109

Cub Cadet 751-10909

COOLING FAN
(Superseded to 951-10934)

$

$

Not available

110

Cub Cadet 751-14887

STARTER CUP
(Superseded to 951-14887)

$13.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 712-04287

FLYWHEEL NUT

$6.49

$

In Stock, only 1 left!

0

112

Cub Cadet 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

113

Cub Cadet 731-05632

IGNITION KEY
(Superseded to 951-10630)

$6.49

$

In Stock, Qty 18

0

114

Cub Cadet 651-05442

RECOIL STARTER
(Superseded to 951-05442)

$74.99

$

Usually ships in 3-6 days

0

115

Cub Cadet 751-15228

BLOWER HOUSING
(Superseded to 951-15228)

$41.99

$

Usually ships in 3-6 days

0

116

Cub Cadet 751-15538

RECOIL STARTER ASSEMBLY
(Superseded to 951-15538)

$61.99

$

In Stock, only 1 left!

0

117

Cub Cadet 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$6.49

$

Usually ships in 3-6 days

0

118

Cub Cadet 710-06354

BOLT M6 x 10

$6.49

$

Usually ships in 3-6 days

0

119

Crankshaft

$

$

Not available

120

Recoil Starter

$

$

Not available

31

Cub Cadet 751-15236

CARBURETOR ASSEMBLY
(Superseded to 951-15236)

$94.99

$

In Stock, Qty 6

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Throttle Shaft

$

$

Not available

d

Throttle Plate

$

$

Not available

e

Screw, M3×6

$

$

Not available

f

Cub Cadet 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

In Stock, only 1 left!

0

g

Idle Jet

$

$

Not available

h

Idle Adjusting Screw

$

$

Not available

i

Mixture Screw

$

$

Not available

j

Cub Cadet 737-05005

PRIMER LINE
(Superseded to 937-05005)

$5.99

$

Usually ships in 3-6 days

0

k

Carburetor Body

$

$

Not available

l

Fuel Nipple

$

$

Not available

m

Float Pin

$

$

Not available

n

Nozzle Tube

$

$

Not available

o

Needle Valve

$

$

Not available

p

Main Jet

$

$

Not available

q

Needle Valve Spring

$

$

Not available

r

Float

$

$

Not available

s

Cub Cadet 751-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$6.49

$

In Stock, Qty 20+

0

t

Cub Cadet 608-05000

FLOAT BOWL
(Superseded to 908-05000)

$

$

Not available

u

Cub Cadet 751-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$5.49

$

Usually ships in 3-6 days

0

v

Cub Cadet 710-04945

BOLT M8-1 x 10

$3.99

$

In Stock, Qty 8

0

w

Cub Cadet 751-11349

FUEL DRAIN PLUG
(Superseded to 951-11349A)

$3.99

$

In Stock, Qty 16

0

x

Cub Cadet 710-04903

FUEL DRAIN PLUG
(Superseded to 710-04938)

$3.99

$

In Stock, only 4 left!

0
