208cc Engine

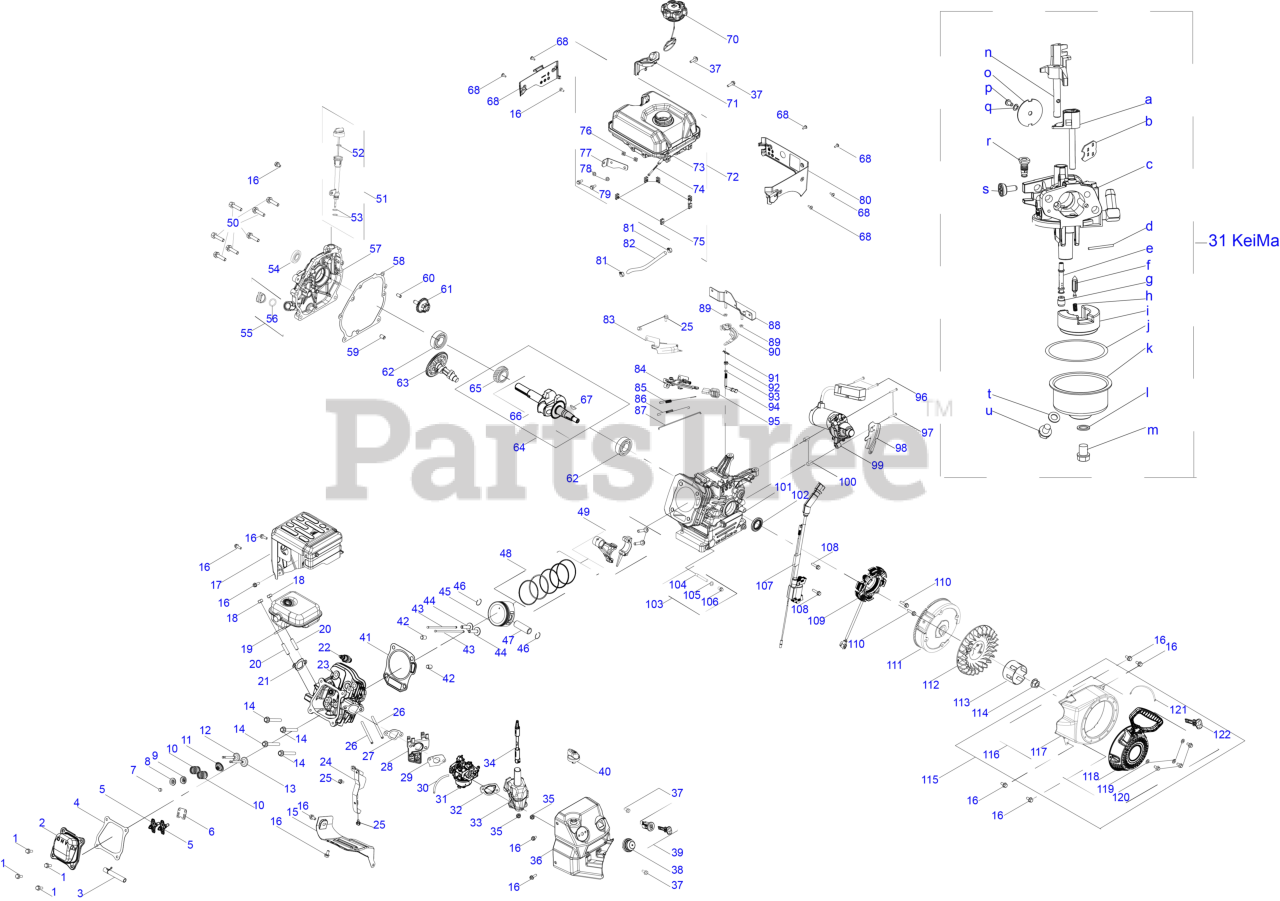

670-WUC General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04968

BOLT M6 x 16

$6.49

$

In Stock, only 3 left!

0

2

Cub Cadet 951-11054B

VALVE COVER

$14.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 951-15045

BREATHER HOSE

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 751P11565B

VALVE COVER GASKET

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 751P11892A

ROCKER ARM KIT

$2.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 751P21988

ROCKER ARM BASE

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 751P12002A

EXHAUST VALVE ADJUSTER

$2.99

$

In Stock, only 3 left!

0

8

Cub Cadet 751P12003A

EXHAUST VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 751P12000A

INTAKE VALVE SPRING RETAINER

$2.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 751P12004A

VALVE SPRING

$1.99

$

In Stock, Qty 7

0

11

Cub Cadet 751P11894A

INTAKE VALVE SEAL

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 751P14100A

EXHAUST VALVE

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet 751P14099A

INTAKE VALVE

$3.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-04933

BOLT M8-1.25 x 55 GR10.9

$3.99

$

In Stock, Qty 10

0

15

Cub Cadet 951-11113

AIR SHIELD

$8.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.49

$

In Stock, Qty 8

0

17

Cub Cadet 951-15155A

MUFFLER GUARD

$52.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 712-04214

NUT

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 951-15158A

MUFFLER

$57.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 710-04911

STUD M8 x 36

$3.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 751P11289A

MUFFLER GASKET

$2.49

$

In Stock, Qty 8

0

22

Cub Cadet 951-10292A

SPARK PLUG (F6RTC/RN11YC/BPR6ES)

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet 751P22088

CYLINDER HEAD

$43.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-15185

SNOW GUARD

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet 710-05103

BOLT M6-1 x 12 GR8.8

$3.99

$

In Stock, only 2 left!

0

26

Cub Cadet 951-15580

STUD M6 x 90

$5.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 751P11567B

CARBURETOR INSULATOR GASKET

$1.99

$

In Stock, Qty 20+

0

28

Cub Cadet 751P11568A

INSULATOR

$3.49

$

In Stock, Qty 7

0

29

Cub Cadet 951-11569A

CARBURETOR GASKET
(Superseded to 751P12005A)

$5.49

$

In Stock, Qty 20+

0

30

Cub Cadet 935-05038

PRIMER HOSE

$11.99

$

In Stock, only 1 left!

0

31

Cub Cadet 651-08535

Carburetor

Note: KeiMa

$

$

Currently unavailable

31

Cub Cadet 651-08536

Carburetor

Note: HuaYi

$

$

Currently unavailable

32

Cub Cadet 751P11897B

CARBURETOR GASKET PLATE

$1.99

$

In Stock, Qty 20+

0

33

Cub Cadet 951-15186A

AIR/HEATER INTAKE BOX

$10.99

$

In Stock, Qty 5

0

34

Cub Cadet 751P18086

CHOKE LEVER

$5.49

$

In Stock, Qty 7

0

35

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

36

Cub Cadet 951-15164A

CONTROL PANEL

$23.99

$

In Stock, only 1 left!

0

37

Cub Cadet 710-05003

BOLT M6-1 x 18 GR8.8

$3.99

$

In Stock, Qty 5

0

38

Cub Cadet 951-10639B

PRIMER

$14.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-15022A

ENGINE KEY SWITCH ASSEMBLY

$10.99

$

In Stock, only 1 left!

0

40

Cub Cadet 951-15450A

CHOKE KNOB

$6.99

$

In Stock, Qty 8

0

41

Cub Cadet 951-14316

CYLINDER HEAD GASKET

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 715P04090A

PIN (10MMx16MM)

$3.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 751P14105A

PUSH ROD

$2.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 751P11899A

TAPPET

$6.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-15052

PISTON

$38.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-11632A

PISTON PIN SNAP RING

$3.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 751P11633A

PISTON PIN

$1.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-14317A

PISTON RING SET

$25.99

$

In Stock, only 1 left!

0

49

Cub Cadet 751P11573A

CONNECTING ROD

$9.49

$

In Stock, only 1 left!

0

50

Cub Cadet 710-04932A

BOLT M8x32

$3.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-05020B

DIPSTICK ASSEMBLY

$14.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 921-04663A

O-RING

$5.49

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-12397

OIL FILL TUBE O-RING

$4.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 751P11368A

OIL SEAL

$2.99

$

In Stock, only 4 left!

0

55

Cub Cadet 931-09966A

OIL PLUG

$5.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-11577A

O-RING 15.8 x 2.5

$3.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 951-12125A

CRANKCASE COVER

$88.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 751P11371B

CRANKCASE GASKET

$3.49

$

In Stock, Qty 11

0

59

Cub Cadet 715-04096A

DOWEL PIN 9 X 14

$3.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 715-04092A

DOWEL PIN 7 X 14

$3.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 751P11576A

GOVERNOR GEAR

$3.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 751P11369A

BEARING

$5.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751P15128A

CAMSHAFT

$7.99

$

Usually ships in 3-6 days

0

64

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

65

Cub Cadet 951-15130A

DRIVE TIMING GEAR

$10.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 751P15129A

CRANKSHAFT

$41.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 751P10307A

WOODRUFF KEY

$2.49

$

In Stock, Qty 11

0

68

Cub Cadet 951-15189

BOLT: M5 x 14

$3.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 951-15191A

FUEL TANK SHROUD (REAR)

$5.49

$

Usually ships in 3-6 days

0

70

Cub Cadet 951-15172A

FUEL CAP

$16.99

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-15170A

COVER

$5.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 951-15173A

FUEL TANK

$126.99

$

In Stock, only 1 left!

0

73

Cub Cadet NSOCA

Not Serviceable/ Order Complete Assembly

$

$

Currently unavailable

74

Cub Cadet 951-12296A

FUEL FILTER

$9.49

$

In Stock, Qty 20+

0

75

Cub Cadet 951-15578A

FUEL TANK MOUNT

$3.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 712-05186

NUT M6

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 951-15577

FUEL TANK MOUNT TAB

$4.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 736-05197

WASHER 6.5 x 1.5 x 12

$4.49

$

Usually ships in 3-6 days

0

79

Cub Cadet 710-06567

BOLT M6 x 20

$3.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-15231A

FUEL TANK SHROUD (LH)

$5.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 951-11700A

CARBURETOR HOSE CLAMP

$3.99

$

In Stock, only 3 left!

0

82

Cub Cadet 951-15169A

FUEL HOSE

$20.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15168

GOVERNOR SHIELD

$6.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 951-15153

GOVERNOR GEAR BRACKET ASSEMBLY

$17.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 751P14882A

GOVERNOR SPRING

$5.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 751P10664A

THROTTLE SPRING

$2.49

$

In Stock, Qty 10

0

87

Cub Cadet 751P10665A

THROTTLE LINKAGE

$1.99

$

In Stock, only 3 left!

0

88

Cub Cadet 951-15174

FUEL TANK BRACKET

$10.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 712-05015

HEX NUT

$6.49

$

In Stock, only 4 left!

0

90

Cub Cadet 951-14089

GOVERNOR LEVER

$7.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 714-04078A

COTTER PIN

$3.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 751P22281

OIL SEAL 6x11x4

$2.49

$

Usually ships in 3-6 days

0

93

Cub Cadet 736-04461A

O-RING

$3.49

$

Usually ships in 3-6 days

0

94

Cub Cadet 710-04932A

BOLT M8x32

$3.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 751P10757A

THROTTLE LEVER KNOB

$6.49

$

Usually ships in 3-6 days

0

96

Cub Cadet 751-15472A

SCREW M4x48

$3.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 710-05182

BOLT M6-1 x 32 GR8.8

$3.99

$

In Stock, only 1 left!

0

98

Cub Cadet 751P16487

LOWER HOUSING

$2.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-15229

ELECTRIC STARTER

$341.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 715-04088A

DOWEL PIN

$3.49

$

Usually ships in 3-6 days

0

101

Cub Cadet 751P14149A

CRANKCASE

$81.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 751P11370A

OIL SEAL

$2.49

$

In Stock, only 2 left!

0

103

Cub Cadet 751P19228A

OIL DRAIN PIPE

$12.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 951-11350A

OIL DRAIN PIPE

$7.49

$

Usually ships in 3-6 days

0

105

Cub Cadet 736-04440A

FLAT WASHER

$6.49

$

In Stock, Qty 6

0

106

Cub Cadet 710-04906

OIL DRAIN PLUG

$6.49

$

In Stock, Qty 6

0

107

Cub Cadet 951-15151

IGNITION MODULE

$91.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.49

$

Usually ships in 3-6 days

0

109

Cub Cadet 751P16526A

CHARGING COIL

$37.99

$

Usually ships in 3-6 days

0

110

Cub Cadet 710-04943

BOLT-M6-1 x 28 GR8.8

$3.99

$

In Stock, only 2 left!

0

111

Cub Cadet 951-15540B

FLYWHEEL

$141.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-10909B

COOLING FAN

$21.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 951-14887

STARTER CUP

$13.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 712-04287A

FLYWHEEL NUT M14-1.5

$5.99

$

Usually ships in 3-6 days

0

115

Cub Cadet NSCO

Not Serviceable/ Components Only

$

$

Currently unavailable

116

Cub Cadet 951-05442A

RECOIL STARTER

$61.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 951-15228

BLOWER HOUSING

$41.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 951-15538A

RECOIL STARTER

$65.99

$

Usually ships in 3-6 days

0

119

Cub Cadet 736-04455B

FLAT WASHER

$6.49

$

Usually ships in 3-6 days

0

120

Cub Cadet 710-06354

BOLT M6 x 10

$6.49

$

Usually ships in 3-6 days

0

121

Cub Cadet 725-06031A

CABLE TIE 3x150

$2.49

$

Usually ships in 3-6 days

0

122

Cub Cadet 951-10630

IGNITION KEY

$6.49

$

In Stock, Qty 18

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Cub Cadet 711-06043

HINGE FLOAT PIN

$0.99

$

Usually ships in 3-6 days

0

e

Nozzle Tube

$

$

Not available

f

Cub Cadet 793-00165A

NEEDLE VALVE

$

$

Not available

g

Main Jet

$

$

Not available

h

Cub Cadet 732P05251A

NEEDLE VALVE SPRING

$1.99

$

Usually ships in 3-6 days

0

i

Cub Cadet 731P09132A

FLOAT

$4.99

$

Usually ships in 3-6 days

0

j

Cub Cadet 951-11589A

FUEL BOWL O-RING

$6.49

$

In Stock, Qty 20+

0

k

Cub Cadet 608P05002

FUEL BOWL

Note: KeiMa

$5.49

$

Usually ships in 3-6 days

0

k

Cub Cadet 908-05001

FLOAT BOWL

Note: HuaYi

$7.99

$

In Stock, only 1 left!

0

l

Cub Cadet 951-11348A

FUEL BOWL GASKET

$5.49

$

Usually ships in 3-6 days

0

m

Cub Cadet 710-04945

BOLT M8-1 x 10

$3.99

$

In Stock, Qty 8

0

n

Throttle Shaft

$

$

Not available

o

Cub Cadet 708P05018

THROTTLE PLATE

Note: KeiMa

$2.99

$

Usually ships in 3-6 days

0

o

Cub Cadet 708P05012

THROTTLE PLATE

Note: HuaYi

$2.99

$

Usually ships in 3-6 days

0

p

Cub Cadet 710-06230

SCREW-3Mx6

$3.49

$

Usually ships in 3-6 days

0

q

Cub Cadet 736-04638A

LOCK WASHER

$3.49

$

In Stock, only 1 left!

0

r

Idle Jet

$

$

Not available

s

Idle Adjusting Screw

$

$

Not available

t

Cub Cadet 951-11349A

FUEL DRAIN PLUG GASKET

$3.99

$

In Stock, Qty 16

0

u

Cub Cadet 710-04938

FUEL DRAIN PLUG

$3.99

$

In Stock, only 4 left!

0

Cub Cadet 752Z670-WUC

COMPLETE ENGINE 208cc

$

$

Not available
