675-SU - Cub Cadet 272cc Engine 675-SU General Assembly Parts Diagram

272cc Engine

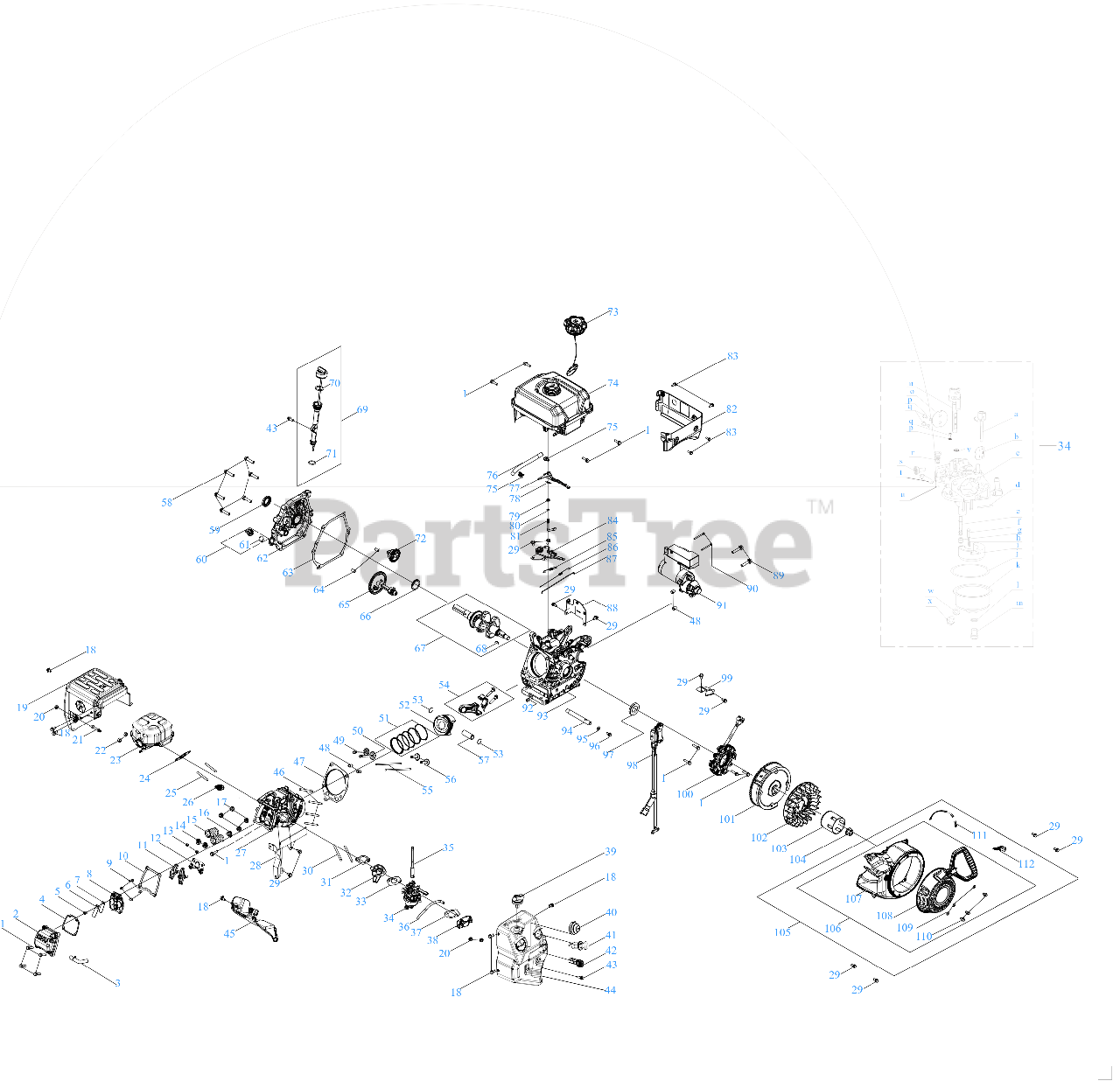

675-SU General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-04919

BOLT M6-1 x 25 GR8.8

$4.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 751P16806

VALVE COVER

$13.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751P16807

BREATHER HOSE

$2.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 751P16808

VALVE COVER GASKET

$1.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-07514

SCREW, M3×8
(Superseded to 710P07514)

$1.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 751P16809

BREATHER PLATE

$1.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 751P16810

BREATHER VALVE

$1.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 751P16826

INNER VALVE COVER

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-07534

SCREW, M5×12
(Superseded to 710P07534)

$1.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 751P16827

VALVE COVER GASKET

$1.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 751P16828

ROCKER ARM

$5.49

$

Usually ships in 3-6 days

0

12

Cub Cadet 751P16829

ROCKER ARM BASE

$1.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751P16830

VALVE CLIP

$1.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 751P16831

VALVE SPRING SEAT

$2.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 751-16832

VALVE SPRING
(Superseded to 751P16832A)

$1.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 921-04705

INTAKE VALVE SEAL

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-05521

NUT, M8
(Superseded to 712P05521)

$1.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 710-04916

BOLT M6-1 x 14 GR8.8

$4.99

$

In Stock, Qty 5

0

19

Cub Cadet 751P16833

MUFFLER GUARD

$62.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-05015

HEX NUT

$6.99

$

In Stock, Qty 18

0

21

Cub Cadet 751-16886

STUD, M6×55

$2.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 712-04214

NUT

$4.99

$

In Stock, only 3 left!

0

23

Cub Cadet 751P16887

MUFFLER

$46.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 751P16888

MUFFLER GASKET

$1.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 910-06299

STUD

$4.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 951-10292

SPARK PLUG
(Superseded to 951-10292A)

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 751P16889

CYLINDER HEAD

$142.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 751P16890

SNOW GUARD

$7.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-04915

BOLT M6-1 x 12 GR8.8

$4.99

$

In Stock, only 3 left!

0

30

Cub Cadet 710-06423

STUD M6-1 x 98

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 751P16891

INSULATOR GASKET

$2.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 751P16892

INSULATOR

$2.49

$

In Stock, only 1 left!

0

33

Cub Cadet 751P16893

CARBURETOR GASKET

$1.99

$

In Stock, Qty 5

0

34

Cub Cadet 651P06018

CARBURETOR

$67.99

$

In Stock, only 2 left!

0

35

Cub Cadet 751P16894

CHOKE LINKAGE
(Superseded to 751P16894A)

$3.49

$

In Stock, only 2 left!

0

36

Cub Cadet 951-15535

PRIMER HOSE

$8.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 751P16895

AIR FILTER GASKET
(Superseded to 751P16895A)

$2.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 751P16896

HEATER BOX

$3.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-15436

CHOKE KNOB SHAFT

$6.49

$

In Stock, only 2 left!

0

40

Cub Cadet 951-10639A

PRIMER

$

$

Not available

41

Cub Cadet 951-15022

ENGINE KEY SWITCH ASSEMBLY
(Superseded to 951-15022A)

$11.99

$

In Stock, only 4 left!

0

42

Cub Cadet 951-11224

THROTTLE CONTROL KNOB

$8.49

$

In Stock, only 3 left!

0

43

Cub Cadet 710-05003

BOLT M6-1 x 18 GR8.8
(Superseded to 710-05003A)

$3.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 751P16906

CONTROL PANEL

$12.99

$

In Stock, only 1 left!

0

45

Cub Cadet 751P16907

ENGINE SHROUD

$4.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-07594

STUD, M8×60
(Superseded to 710P07594)

$2.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 751P16908

CYLINDER HEAD GASKET

$16.99

$

In Stock, only 2 left!

0

48

Cub Cadet 715-04120

DOWEL PIN

$4.49

$

In Stock, only 4 left!

0

49

Cub Cadet 751P16909

INTAKE VALVE

$5.49

$

Usually ships in 3-6 days

0

50

Cub Cadet 751P16910

EXHAUST VALVE

$4.49

$

Usually ships in 3-6 days

0

51

Cub Cadet 951-14471

PISTON RING SET

$26.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 751P16911

PISTON

$11.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-11632

PISTON PIN SNAP RING

$4.49

$

In Stock, only 2 left!

0

54

Cub Cadet 751P16912

CONNECTING ROD

$12.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 751P16913

PUSH ROD

$1.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-14432

TAPPET
(Superseded to 951-14432A)

$9.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 711P07981

PISTON PIN

$1.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-07614

BOLT, M8×35
(Superseded to 710P07614)

$1.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-11368

OIL SEAL
(Superseded to 751P11368A)

$3.49

$

In Stock, only 4 left!

0

60

Cub Cadet 931-09966

OIL PLUG

$6.99

$

In Stock, only 2 left!

0

61

Cub Cadet 951-11577

O-RING 15.8 x 2.5

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 751P16926

CRANKCASE COVER

$45.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 751P16927

CRANKCASE GASKET

$4.49

$

Usually ships in 3-6 days

0

64

Cub Cadet 715-04121

DOWEL PIN

$4.49

$

In Stock, only 2 left!

0

65

Cub Cadet 751P16928

CAMSHAFT

$23.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 736P05602

THRUST WASHER

$6.49

$

Usually ships in 3-6 days

0

67

Cub Cadet 751P16929

CRANKSHAFT

$86.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 951-10307

FLYWHEEL KEY
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 651P06055

DIPSTICK

$8.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 921-04795

O-RING
(Superseded to 921-04795A)

$4.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-15459

O-RING

$4.49

$

Usually ships in 3-6 days

0

72

Cub Cadet 751P16946

GOVERNOR GEAR

$4.49

$

Usually ships in 3-6 days

0

73

Cub Cadet 951-15172

FUEL CAP

$

$

Not available

74

Cub Cadet 751P16947

FUEL TANK

$81.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 951-11700

HOSE CLAMP
(Superseded to 951-11700A)

$4.49

$

In Stock, Qty 9

0

76

Cub Cadet 751P16948

FUEL HOSE

$4.49

$

Usually ships in 3-6 days

0

77

Cub Cadet 751P16949

GOVERNOR LEVER

$1.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 714-04078

COTTER PIN

$4.49

$

In Stock, only 2 left!

0

79

Cub Cadet 951-11902

GOVERNOR SEAL
(Superseded to 951-11902A)

$4.49

$

In Stock, only 2 left!

0

80

Cub Cadet 736-04461

O-RING

$4.49

$

Usually ships in 3-6 days

0

81

Cub Cadet 751P16966

GOVERNOR GEAR SHFT

$1.99

$

Usually ships in 3-6 days

0

82

Cub Cadet 751P16986

FUEL TANK COVER

$5.99

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-15189

BOLT: M5 x 14

$4.49

$

Usually ships in 3-6 days

0

84

Cub Cadet 751P16987

GOVERNOR GEAR BRACKET

$10.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 732P06086

GOVERNOR SPRING

$5.99

$

Usually ships in 3-6 days

0

86

Cub Cadet 732P06106

IDLER SPRING

$8.49

$

Usually ships in 3-6 days

0

87

Cub Cadet 751P17006

THROTTLE LINKAGE

$4.99

$

Usually ships in 3-6 days

0

88

Cub Cadet 751P17026

DIPSTICK BRACKET

$1.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 710-07634

BOLT, M8×40

$2.49

$

Usually ships in 3-6 days

0

90

Cub Cadet 751-15472

SCREW

$5.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 751P17046

ELECTRIC STARTER

$294.99

$

Usually ships in 3-6 days

0

92

Cub Cadet 951-12514A

OIL PLUG 1/8 NPT

$6.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 751P17066

CRANKCASE

$100.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-11350

OIL DRAIN PIPE

$9.99

$

Usually ships in 3-6 days

0

95

Cub Cadet 736-04440

WASHER
(Superseded to 736-04440A)

$7.49

$

In Stock, Qty 12

0

96

Cub Cadet 710-04906

OIL DRAIN PLUG

$7.49

$

In Stock, Qty 11

0

97

Cub Cadet 751P17067

OIL SEAL

$2.49

$

Usually ships in 3-6 days

0

98

Cub Cadet 751P17086

IGNITION MODULE

$24.99

$

In Stock, only 2 left!

0

99

Cub Cadet 751-17106

WIRE BOARD

$7.99

$

Usually ships in 3-6 days

0

100

Cub Cadet 751P16526

CHARGING COIL

$51.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 751P17126

FLYWHEEL

$66.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 751P17146

COOLING FAN

$4.99

$

Usually ships in 3-6 days

0

103

Cub Cadet 751P17166

STARTER CUP

$4.49

$

Usually ships in 3-6 days

0

104

Cub Cadet 712-04287

FLYWHEEL NUT

$7.49

$

In Stock, Qty 9

0

105

RECOIL STARTER

$

$

Not available

106

STARTER ASSEMBLY

$

$

Not available

107

Cub Cadet 751P17266

BLOWER HOUSING

$17.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 951-15538

RECOIL STARTER ASSEMBLY

$

$

Not available

109

Cub Cadet 736-04455

RECOIL FLAT WASHER
(Superseded to 736-04455B)

$7.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 710-06354

BOLT M6 x 10

$6.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 725-06031

CABLE TIE - 3 x 150

$2.49

$

Usually ships in 3-6 days

0

112

Cub Cadet 951-10630

IGNITION KEY

$6.99

$

In Stock, Qty 6

0

34

Cub Cadet 651P06018

CARBURETOR

$67.99

$

In Stock, only 2 left!

0

a

Choke Shaft

$

$

Not available

b

Choke Plate

$

$

Not available

c

Carburetor Body

$

$

Not available

d

Cub Cadet 711P06043

HINGE FLOAT PIN
(Superseded to 711-06043)

$0.99

$

Usually ships in 3-6 days

0

e

Nozzle Tube

$

$

Not available

f

Cub Cadet 793P00165

NEEDLE VALVE
(Superseded to 793P00165A)

$4.99

$

In Stock, only 2 left!

0

g

Main Jet

$

$

Not available

h

Cub Cadet 732P05251

NEEDLE VALVE SPRING
(Superseded to 732P05251A)

$2.49

$

In Stock, Qty 8

0

i

Float

$

$

Not available

j

Cub Cadet 951-11589

FUEL BOWL O-RING
(Superseded to 951-11589A)

$7.49

$

In Stock, Qty 20+

0

k

Cub Cadet 908-05001

FLOAT BOWL

$8.99

$

In Stock, only 1 left!

0

l

Cub Cadet 951-11348

FUEL BOWL GASKET
(Superseded to 951-11348A)

$6.49

$

In Stock, Qty 20+

0

m

Cub Cadet 710-04945

BOLT M8-1 x 10

$4.49

$

In Stock, only 4 left!

0

n

Throttle Shaft

$

$

Not available

o

Throttle Plate

$

$

Not available

p

Cub Cadet 736-04638

CHOKE CONTROL LEVER WASHER
(Superseded to 736-04638A)

$3.49

$

Usually ships in 3-6 days

0

q

Screw, M3×6

$

$

Not available

r

Idle Jet

$

$

Not available

s

Idle Adjusting Screw

$

$

Not available

t

Venting Hose

$

$

Not available

u

Cub Cadet 951-12019A

PRIMER HOSE

$7.49

$

In Stock, only 1 left!

0

v

Cub Cadet 736P05037

FIBER WASHER

$0.99

$

Usually ships in 3-6 days

0

w

Cub Cadet 951-11349

FUEL DRAIN PLUG GASKET
(Superseded to 951-11349A)

$4.49

$

In Stock, Qty 20+

0

x

Cub Cadet 710-04938

FUEL DRAIN PLUG

$4.49

$

In Stock, Qty 5

0

Cub Cadet 752Z675-SU

COMPLETE ENGINE
(Superseded to 952Z675-SU)

$862.99

$

Usually ships in 3-6 days

0
